D12 Bracket Dimensions
For through-hole mounting
of all models;
stainless steel
hardware
included.
WARRANTY: Banner Engineering Corporation warrants its products to be free from defects for one year. Banner Engineering Corporation will repair or
replace, free of charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty period. This warranty
does not cover damage or liability for the improper use of Banner products. This warranty is in lieu of any other warranty either expressed or implied.

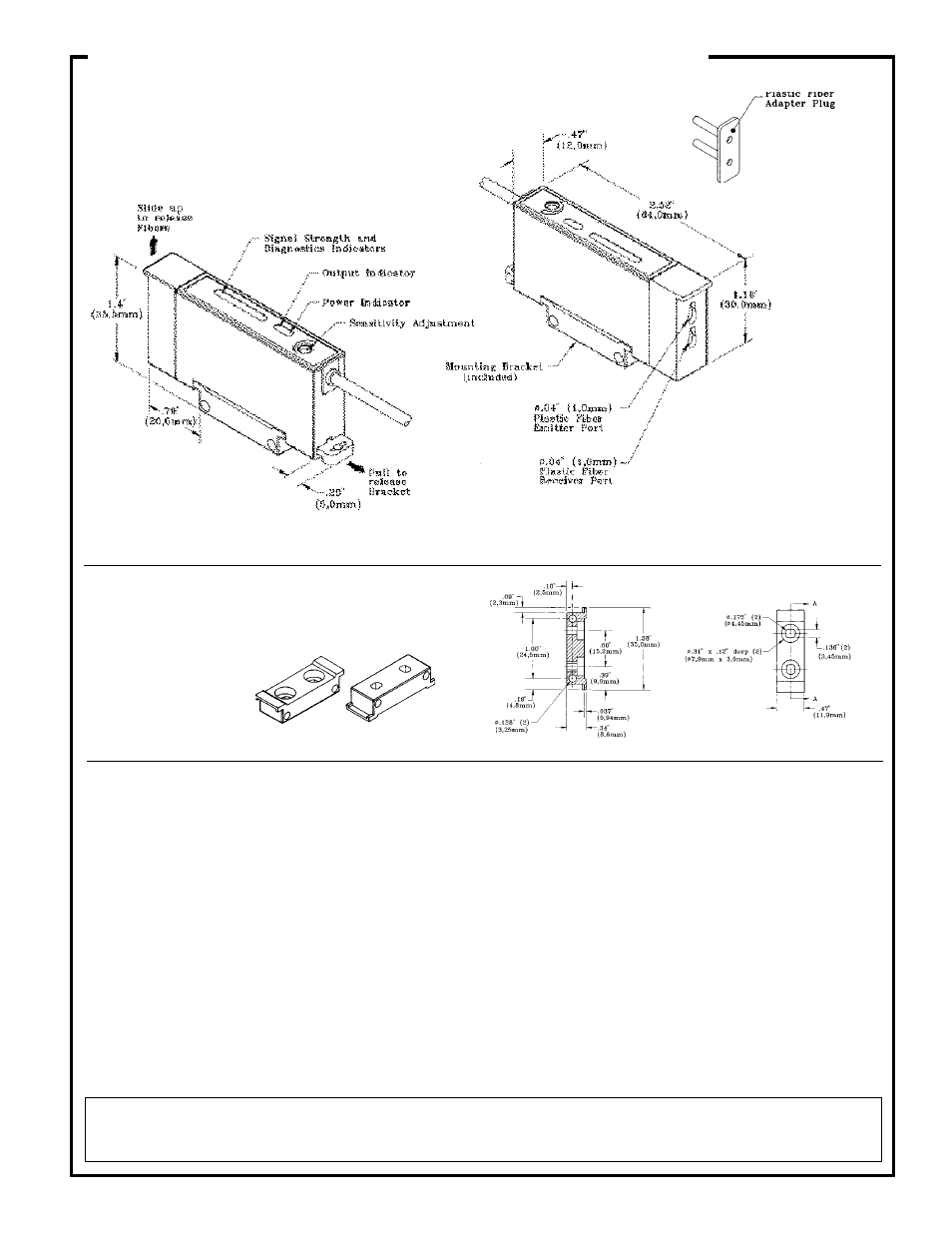

D12FPH Dimensions and Features
Plastic fiber installation:
1) Cut fiber ends per instructions included
with the fibers. Slide the fiber gripper (front
of sensor) up (open). If .020" or .010" dia.
fibers are used, insert the adaptor (drawing
above) into the ports as far as it will go.
2) All fibers: Insert the prepared plastic
fiber sensor ends gently into the ports as
far as they will go. Slide the fiber gripper
back down to lock.
Adaptor (included)
is for use with
.020" diameter
fibers.
D12FPH Series
DIN RAIL Fiber Optic Sensors
