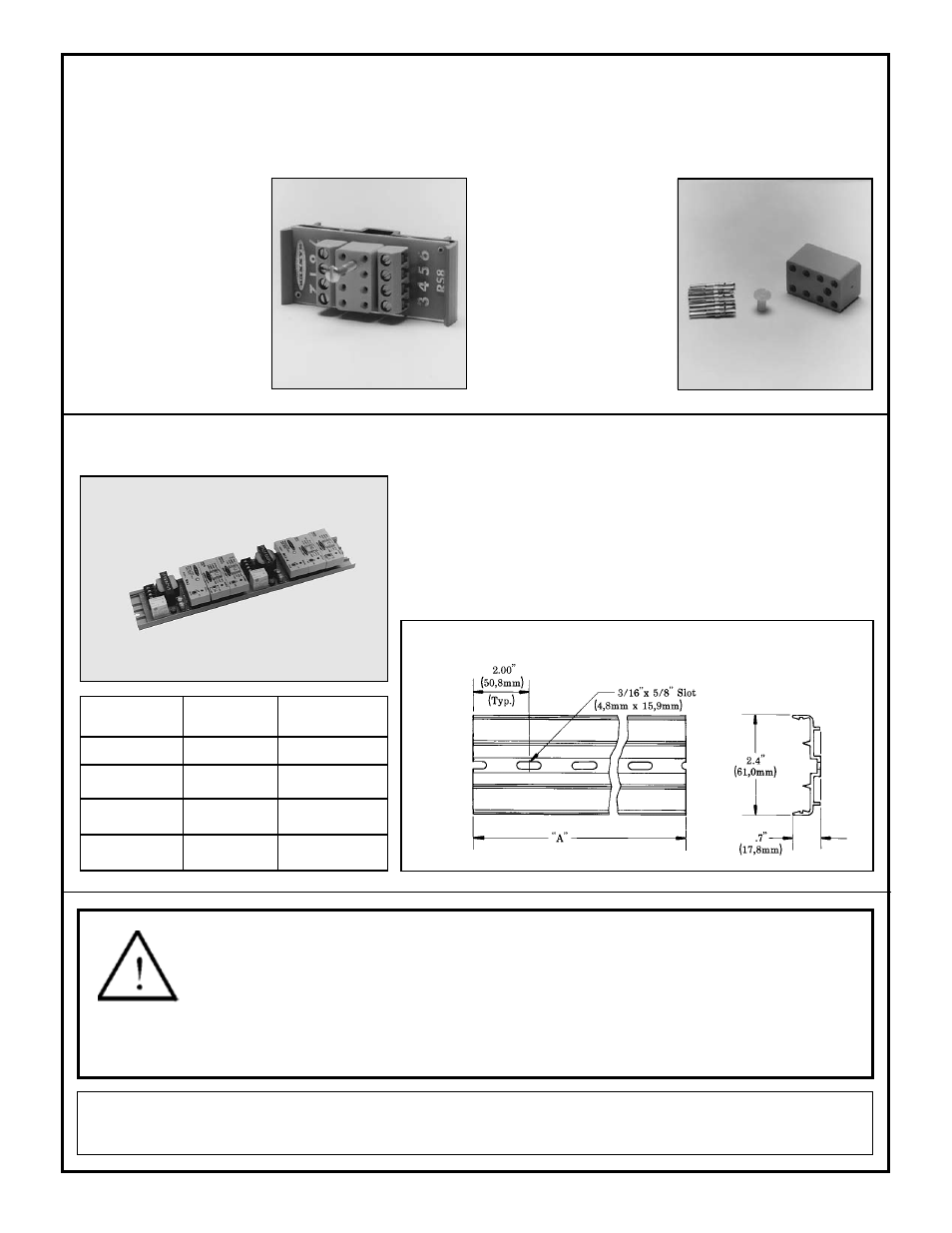

Banner MICRO-AMP Series - Manual (Page 2)

Mounting Track
RS8K
The RS8K is a kit of parts which
comprise the socket portion of
the RS8 assembly. It is used to
provide a socket for MICRO-
AMP modules that are installed
onto printed circuit boards. The
RS8K consists of a molded socket
block and 8 individual socket
pins. A nylon screw is included
to affix the socket block to the
PC board. The drill size for the
pins is #50 (.070"; 1,8mm). Drill
pattern dimensions are included
with the RS8K.
The RS8 socket is the most fre-
quently used means of mounting
and wiring a MICRO-AMP mod-
ule. It consists of a socket with
two four-terminal connection
strips, all wired together onto a
PC board. The PC board assem-
bly slides into a 1 inch (25mm)
long PVC track which is used
to mount the entire assembly. A
hold-down screw keys the cor-
rect polarity of the module.
Dimensions, TR-100 Mounting Track
PVC mounting track for MICRO-AMP components is available in 6 and 12 inch
lengths for systems which use multiple components. For example, a 6-inch length
will accomodate one MPS-15 power supply plus two additional RS8 sockets with
modules.
Longer lengths of mounting track may be supplied on a quote basis.
TR100-1
1 inch (25mm) long (supplied with RS8 socket)
TR100-4
4 inch (100mm) long (supplied with MPS-15 series power supply)
TR100-6
6 inch (150mm) long
TR100-12
12 inch (300mm) long
Track Model
TR100-1
TR100-4
TR100-6
TR100-12
MICRO-AMP
®
Accessories
WARRANTY: Banner Engineering Corporation warrants its products to be free from defects for one year. Banner Engineering Corporation will repair or replace,
free of charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty period. This warranty does not
cover damage or liability for the improper application of Banner products. This warranty is in lieu of any other warranty either expressed or implied.
Banner Engineering Corp. 9714 10th Avenue No., Minneapolis, MN 55441 Telephone: (612) 544-3164 FAX (applications): (612) 544-3573
RS8
Sockets
"A" Dimen-
sion
1" (25mm)
4" (100mm)
6" (150mm)
12" (300mm)
Minimum
number of slots
1
2
3
8
WARNING
MICRO-AMP ® Systems do NOT include the self-checking redundant circuitry necessary to allow their use in
personnel safety applications. A sensor or module failure or malfunction can result in either an energized or a de-energized sensor
output condition.
Never use this product as a sensing device for personnel protection. Its use as a safety device may create an unsafe condition which
could lead to serious injury or death.
Only MACHINE-GUARD and PERIMETER-GUARD Systems, and other systems so designated, are designed to meet OSHA and
ANSI machine safety standards for point-of-operation guarding devices. No other Banner sensors or controls are designed to meet these standards, and
they must NOT be used as sensing devices for personnel protection.
