6.2.5 Solutions
The solutions to be used must, as usual, be defined in tiamo
TM
. Connect the Dosino of the 50 mL
Dosing Unit to MSB 1 of the 905, the Dosino of the 20 mL Dosing Unit (HCl) to MSB 2 of the 905, the
Dosino of the 10 mL Dosing Unit (EDTA) to MSB 3 of the 905 and the Dosino of the 20 mL Dosing Unit
(Auxiliary complexing solution) to MSB 4 of the 905. The user is automatically requested to save the
solutions – click on
. In order to ensure compatibility with the methods provided, they must be
named as described below.
ƒ At the left click on
Configuration , then at the top right under Titrants / Solutions double-click on the
appropriate (empty) entries and enter the following under Solution name and Concentration :

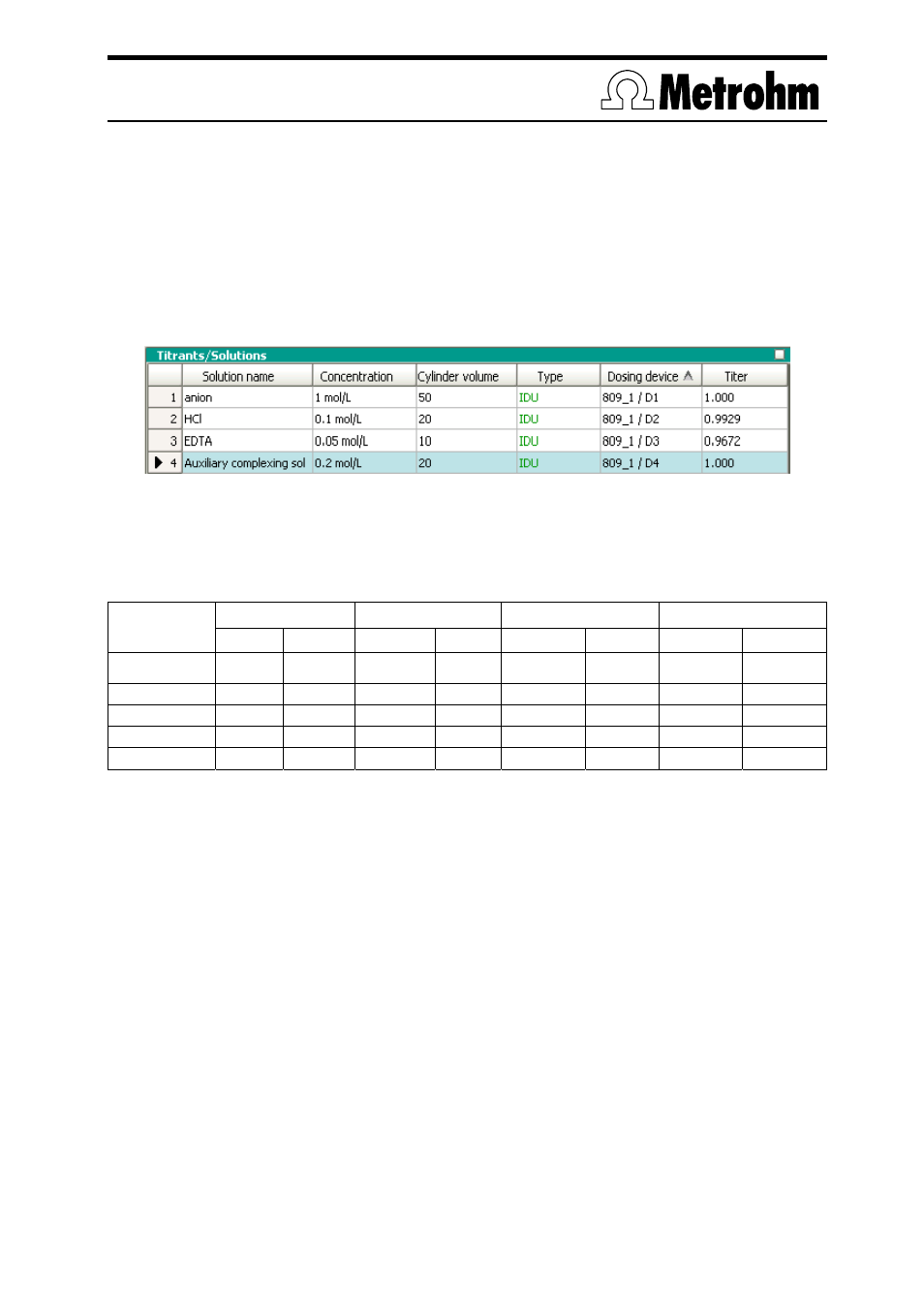

Configuration table for titrants / solutions
Now the tubing lengths and ports are defined for each Dosing Unit under Edit / Properties…/ Dosing unit as
follows:
Anion HCl EDTA
Auxiliary complexing sol
Port Length Port Length Port Length Port Length
Dosing Port Prep/
Empty
Special
Port - Dosing Port 1 - Dosing Port 1 - Dosing Port 1 -
Dosing Port 1 Port 4 60 cm Port 1 40 cm Port 1 40 cm Port 1 40 cm
Dosing Port 2 Port 3 0 cm Port 3 0 cm Port 3 0 cm Port 3 0 cm
Fill Port Port 2 80 cm Port 2 25cm Port 2 25 cm Port 2 25 cm
Special Port Port 1 0 cm Port 4 0 cm Port 4 0 cm Port 4 0 cm
Configuration table of the four Dosing Units
6.2.6 Electrodes
ƒ pH electrode: Under
Configuration/Sensors click on Edit / New / pH electrode and enter under Sensor
name Aquatrode Plus , type in the desired sensor information (e.g. serial number) and click on
.
ƒ Ca-ISE: Under Configuration/Sensors double click on the entry ISE electrode and type in the desired
sensor information (e.g. serial number) and click on .
ƒ Conductivity sensor: Under Configuration / Sensors click on Edit / New / other sensor and enter under
Sensor name Conductivity sensor type in the desired sensor information and click on .
6.2.7 Methods
The following methods are provided for tiamo
TM
:
ƒ
TitrIC 4 - complete run: With this method all the available parameters are measured and the IC
measurement is initiated.
