3 Installation
850 Professional IC –Anion – MSM-HC – MCS – Prep 2
￭￭￭￭￭￭￭￭ 61
3 Connecting the pressure side
Note
Depending on the use of the peristaltic pump, on the pressure side
you can either connect:
￭ Case A: a 6.2744.180 pump tubing connection with filter
(see Figure 32, page 61) or
￭ Case B: a 6.2744.160 pump tubing connection without filter
(see Figure 33, page 62).
For pumping the auxiliary solutions to the MSM or to the SPM, a
6.2744.180 pump tubing connection with filter must be used.
Case A: 6.2744.180 pump tubing connection with filter:
1 2
3

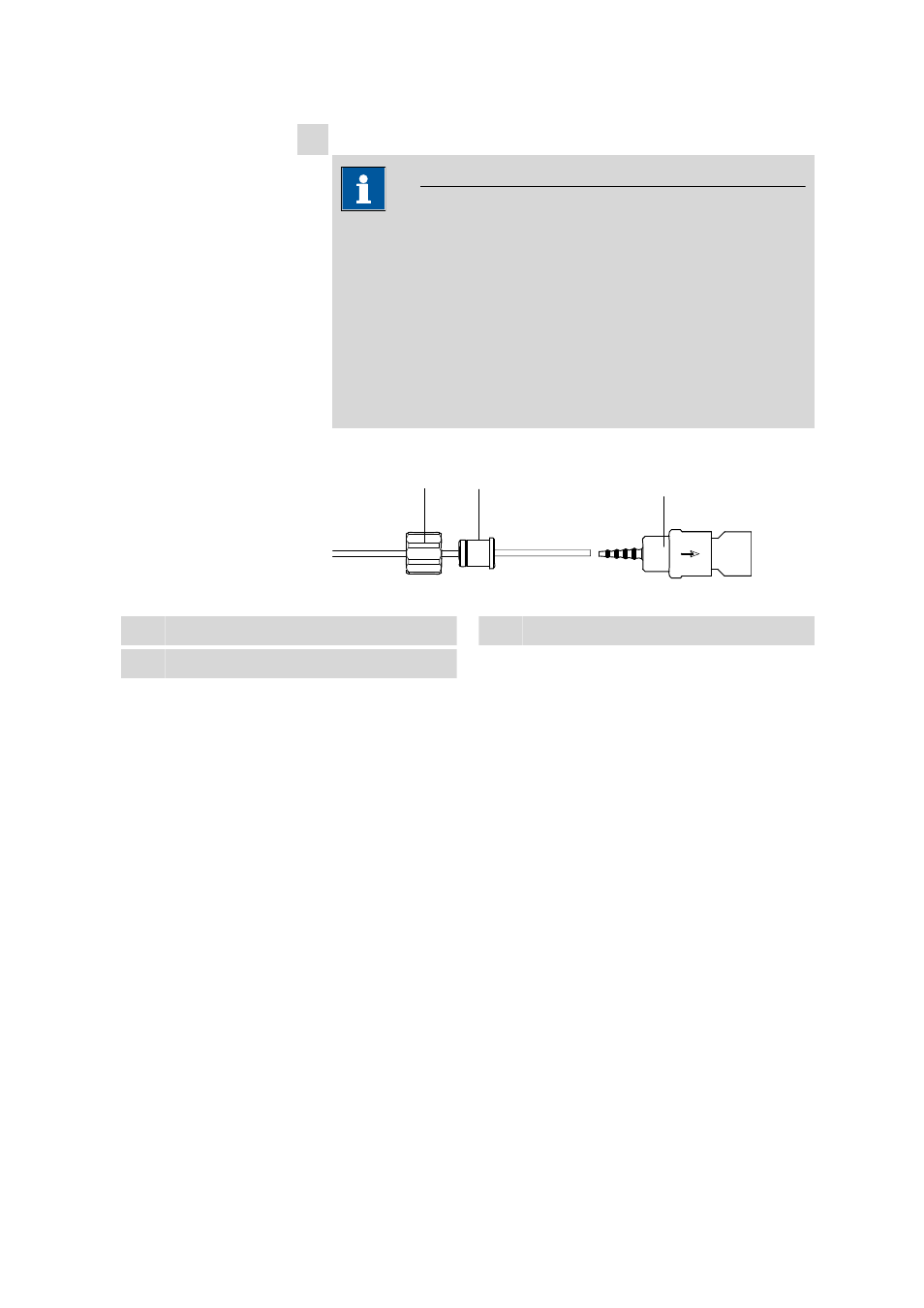

Figure 32 Install pump tubing connection with filter
1 Union nut 2 Adapter
3 Tubing olive with filter holder
￭ Slide union nut (32-1) onto the pump tubing.
￭ Select a suitable adapter (32-2) and slide it onto the pump tubing.
The type of adapter depends on the pump tubing (see Table 1,
page 62).
￭ Place the tubing olive with filter holder (32-3) onto the pump tub-
ing.
￭ Screw the union nut (32-1) onto the tubing olive (32-3).
or
Case B: 6.2744.160 pump tubing connection without filter:
