3.7 Capillary and cable feed-throughs
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
34 ￭￭￭￭￭￭￭￭
850 Professional IC –Anion – MSM-HC – MCS – Prep 2
2
1
2
1
3
4

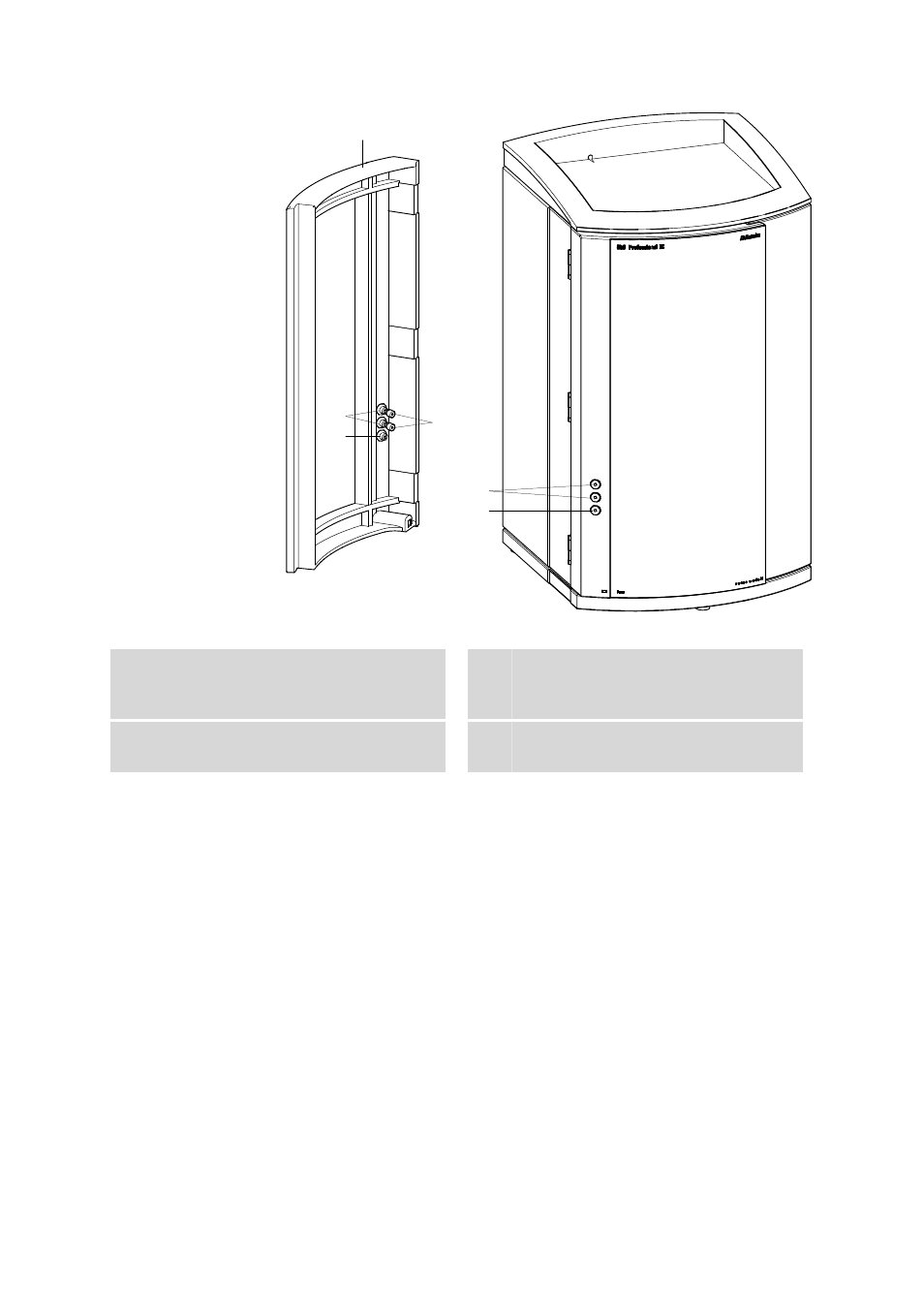

Figure 12 Capillary feed-throughs on the doors
1 Luer connectors
For connecting a 6.2816.020 syringe. For
manual sample feeding. 2 Capillary feed-through
3 PEEK pressure screws, short
6.2744.070 4 Door
Do not feed capillaries through the Luer connectors (12-1). The capillaries
are fastened with PEEK pressure screws (12-3) from inside to the Luer
connector. From outside, liquid can be aspirated or injected with a
syringe.
