5 Operation
In this chapter you will learn the following regarding the handling of the
800 Dosino with a dosing unit:
￭ Attaching the Dosino on a dosing unit
￭ Removing the Dosino from a dosing unit
￭ Function of the On and Status LEDs.
5.1 Attaching the Dosino onto the dosing unit
The 800 Dosino can be attached to a dosing unit in both switched-off and
switched-on modes.
1 Checking the position of the drive disk of the dosing drive
Caution
The drive pin of the dosing drive can adjusted only if the control
device connected to it is switched off.
1
2
3

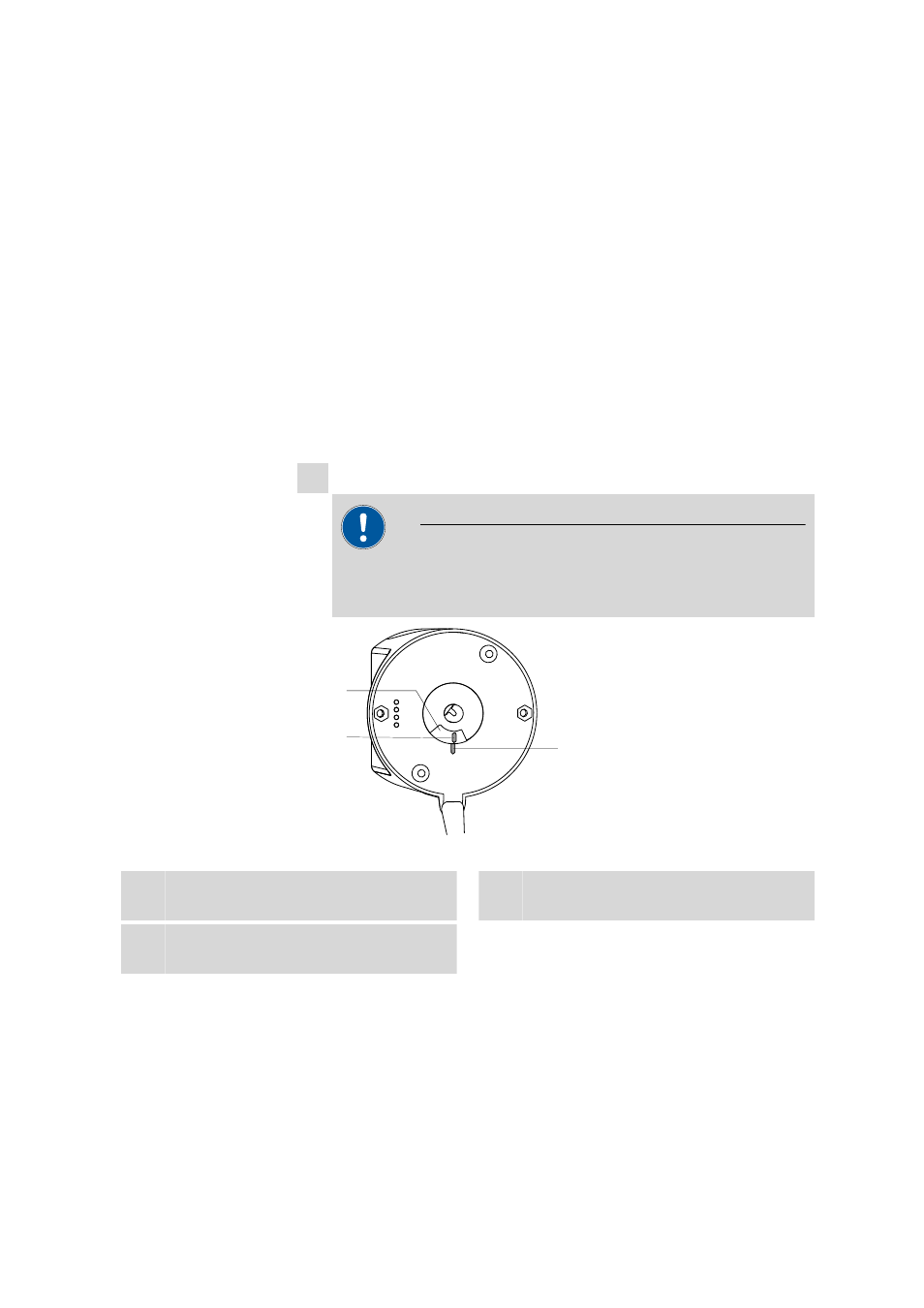

Figure 13 800 Dosino from below
1 Drive disc
For the drive of the dosing unit. 2 Plastic rib
On the drive disc
3 Plastic rib
On the underside of the dosing drive
￭ The plastic rib on the drive disk must be flush with the plastic rib
on the underside of the dosing drive (rib to rib)
￭ Rotate the drive pin by hand if necessary until the ribs are lined up
with one another.
