￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
800 Dosino ￭￭￭￭￭￭￭￭ 5
2 Overview of the instrument
4
1
2
3
5
4
6
7
9
10
8
11

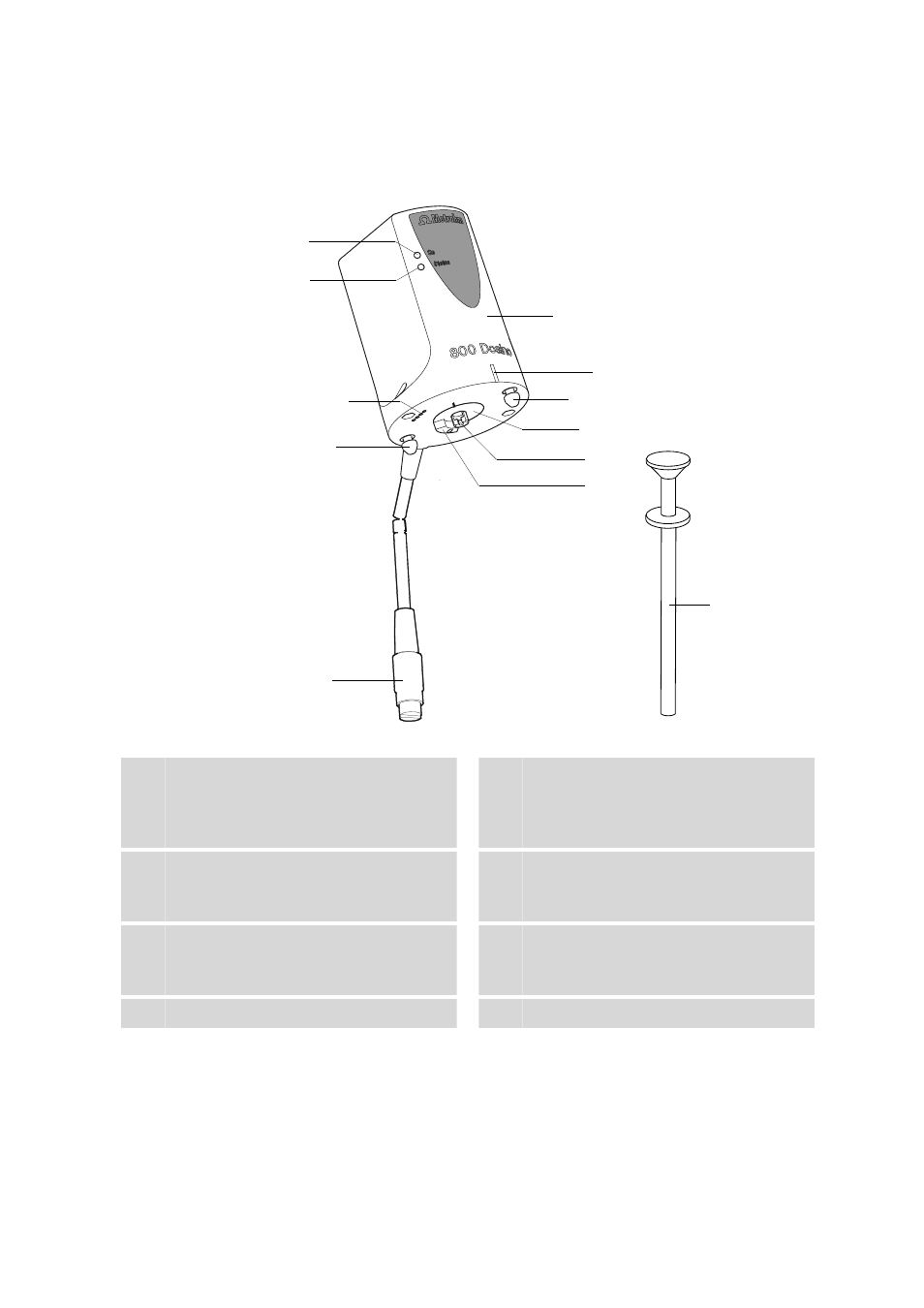

Figure 1 800 Dosino
1 On LED
Lights up, when the Dosino is connected to
an MSB connector of a control device and
the control device is switched on. 2 Status LED
Indicates the current status of the Dosino.
3 Contact surfaces
For reading / writing the data on the chip of
the dosing unit. 4 Guide pins
For inserting the Dosino into the openings
on the upper side of the dosing unit.
5 Mini DIN plug (8-pin)
For connecting to an MSB connector of the
control device. 6 Housing
Of PBT (polybutylene terephthalate).
7 Line marking green 8 Drive disc
