2.4 Connections
Relay Box 731, Instructions for use 15
2.4.5 Application examples
The 731 Relay Box is controlled via remote lines which can be freely
selected in many Metrohm instruments and set to be operation-
controlled.
On the 731 Relay Box an output line must be
set for each switchable output; this then con-
trols the corresponding output. This is done
with the remote address selection disk on the
front of the relay box. Use a screwdriver to set
the corresponding number of the output line.
See also page 21.

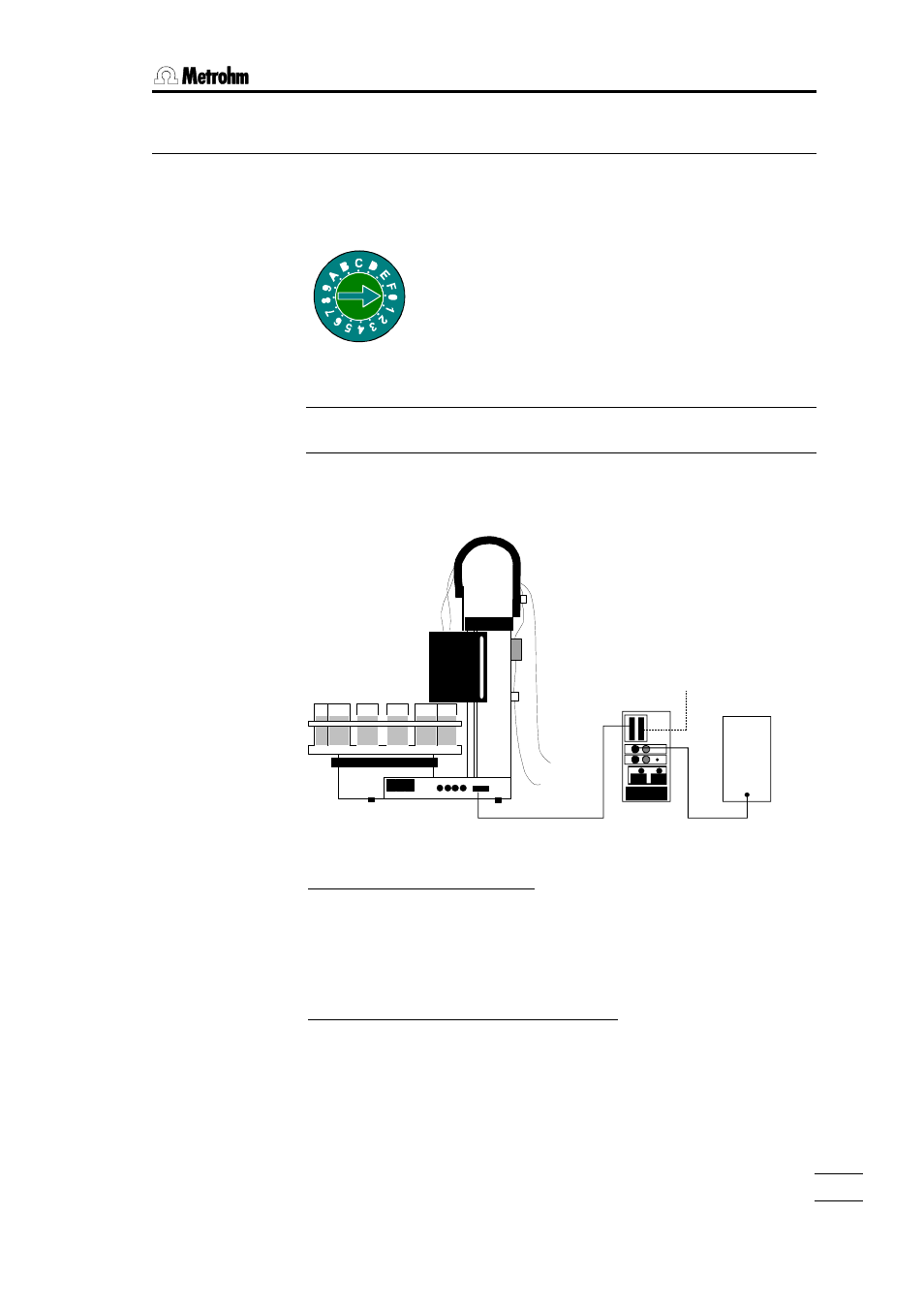

730/717 Sample Changer – 731 Relay Box –
772 Pump Unit
The 772 Pump Unit can be used to aspirate titration samples con-
taining solids.
730
731
772
Settings for the 731 Relay Box:
Connected to DC1 (or DC2)
Output voltage:
18 or 24 volt
Remote address selection disk DC1: D (=Output 13)
730 Sample Changer, control commands:
CTL:Rm : 1*************
switches pump on (Output 13)
CTL:Rm : 0*************
switches pump off (Output 13)
The output lead can be selected freely. Avoid conflicts with other in-
struments which may be connected, e.g. Titrinos (output lines occu-
pied: Output 0…7).
cable 6.2125.100
e.g. Titrino
(cable 6.2141.020)
