4 Operation and maintenance
850 Professional IC – Anion MSM-HC – MCS
￭￭￭￭￭￭￭￭ 81
1
2

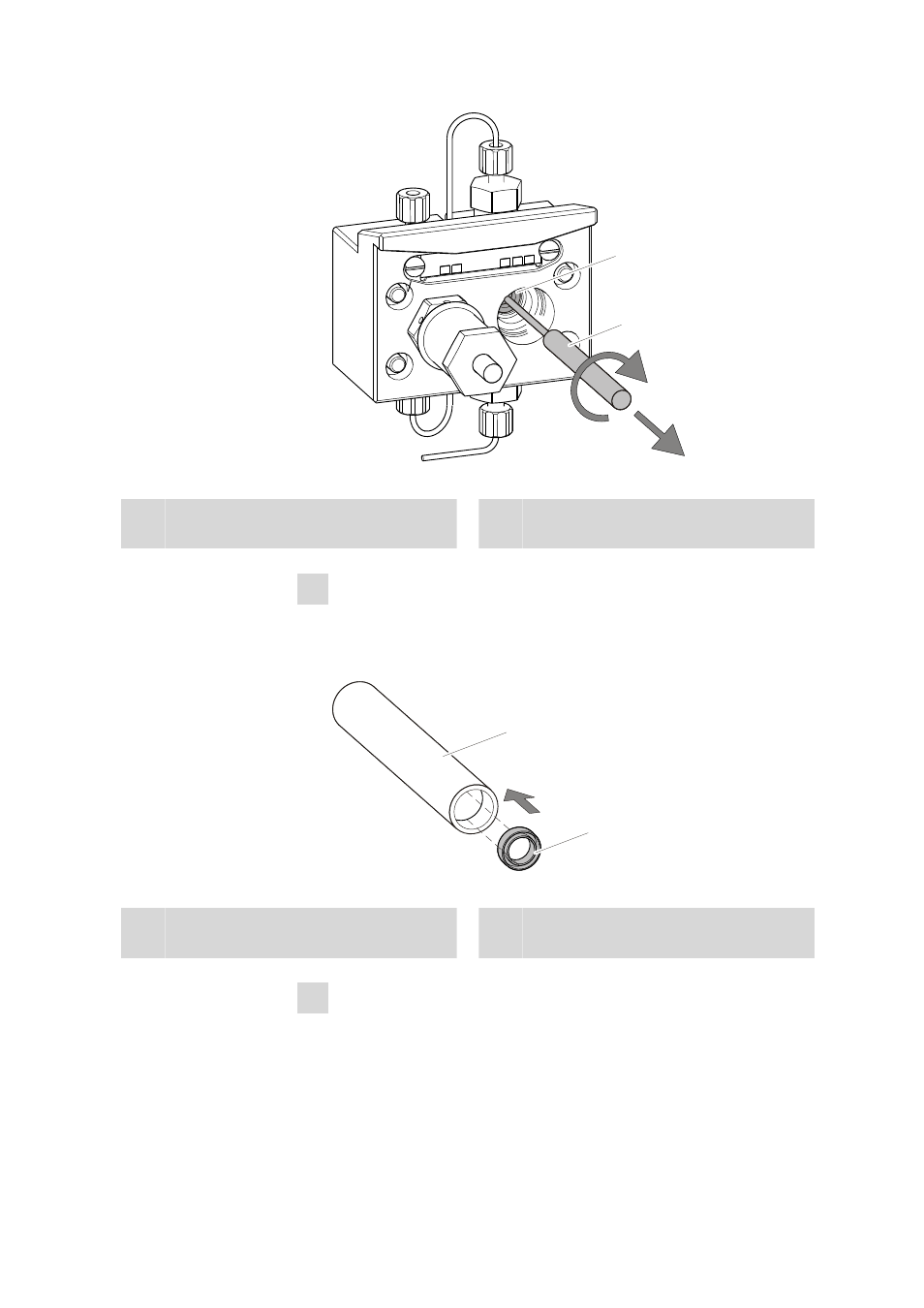

Figure 40 Removing the piston seal
1 Piston seal 2 Tool for piston seal
Pin of the tool.
2 Inserting the new piston seal into the tool
Insert the new piston seal tightly by hand into the recess of the
sleeve of the tool for the piston seal (39-2). The sealing springs must
be visible from the outside.
1
2
Figure 41 Insert the piston seal into the tool
1 Tool for piston seal 6.2617.010
Sleeve for inserting the new piston seal. 2 Piston seal
Order number: 6.2741.020
3 Inserting the new piston seal into the pump head
Guide the sleeve of the tool for the piston seal (39-2) with inserted
piston seal into the pump head and press the seal with the wide end
of the tool for the piston seal (39-1) into the pump head recess.
