Page 13
PRO RX g2 Installation and User’s Manual

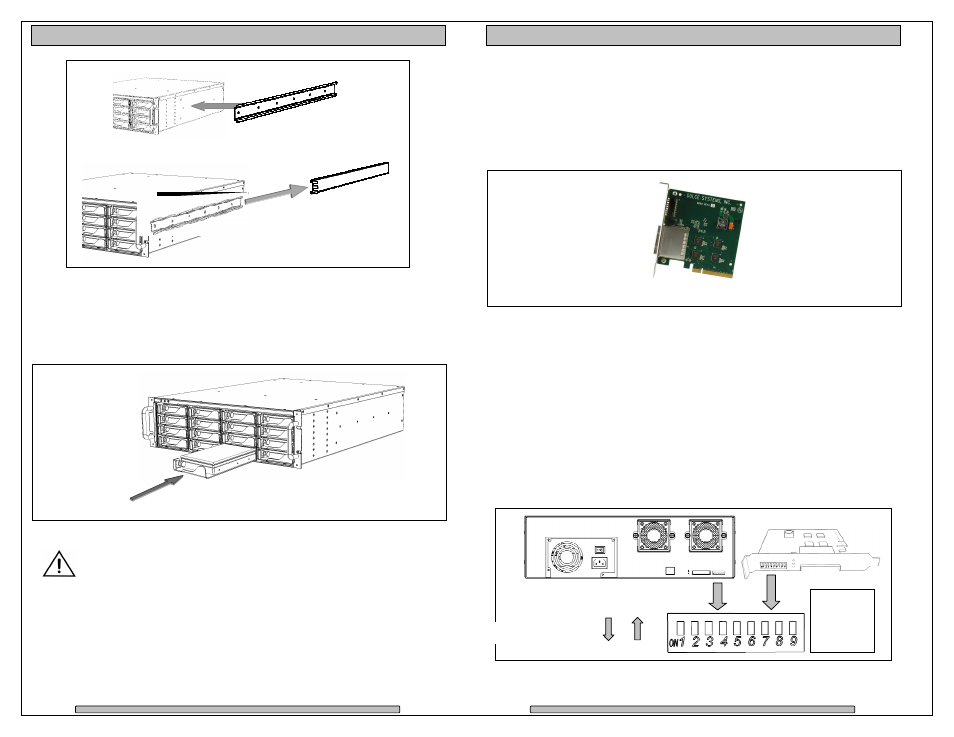

4.2. Disk Module Installation
Remove the front bezel. Install each marked Disk Module into the slot indicated.
Pull the Lock Pin to the right and insert drive tray fully, release Lock Pin to
secure.
DO NOT ship the PRO RX with the Disk Modules installed, the Disk
Modules MUST be packaged separately in a single or multi-pack to
properly protect them during shipment.
Slider
Rail mounted
to rack.
Page 14
PRO RX g2 Installation and User’s Manual
4.3. Host Bus Extender Card
Turn off the computer and unplug the power source before proceeding with the
Host Bus Extender (HBE) Card installation.
A PCI-e HBE Card is supplied with your PRO RX. The HBE Card will require an
available PCI-e slot in your computer.
PCI-e and PCI-x are not compatible or interchangeable with each other. A PCI-e
card can only be installed in a PCI-e equipped computer. Some computers
support both PCI-e and PCI-x such as the HP xw series but not Apple Macs.
4.3.1. Switch Settings
Determine the correct switch settings. Set both the HBE and PRO RX to same
configuration.
The HBE Card and the PRO RX enclosure can operate at 1, 4 or 8 lane speed
configurations. The maximum speed will be determined by the capability and
selection of the computer’s PCI-e slot. The HBE Card and the PRO RX must be
configured to match the speed of the computer PCI-express slot.
Switch position
ON OFF
PRO RX
& HBE
same
settings
PCI-express Host Bus Extender (HBE)
