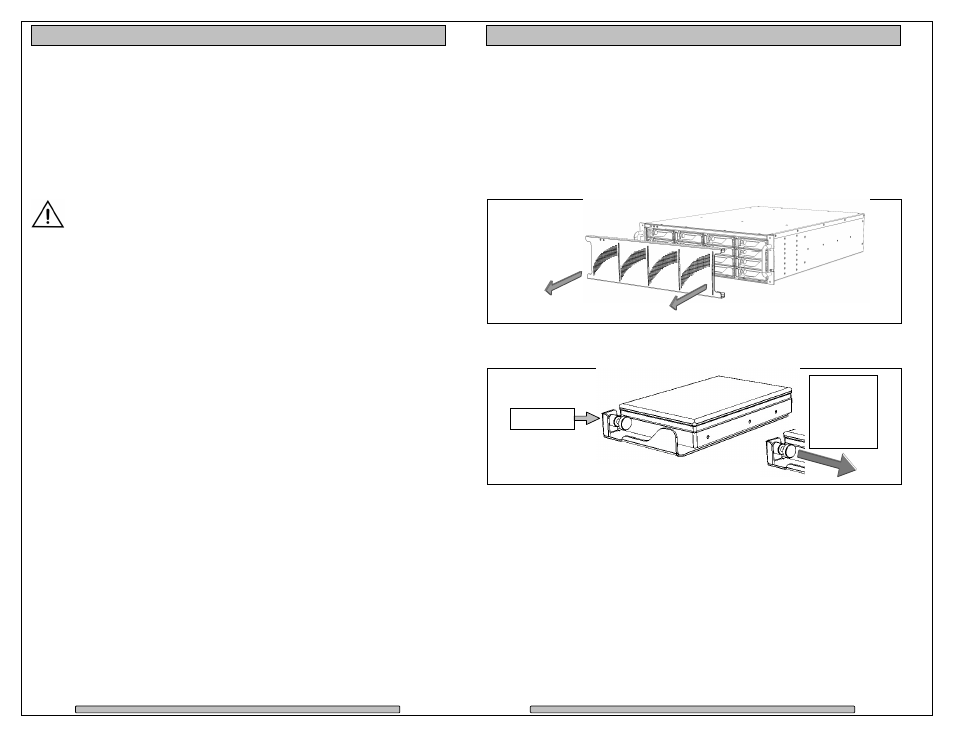

Page 9
PRO RX g2 Installation and User’s Manual
2. Getting Started
The PRO RX comes pre-assembled and almost ready for use, just install the
Disk Modules, the PCI-e (PCI-express) Host Bus Extender (HBE), connect the
cables, install the software driver and RAID Console. If you are using a Mac,
you are good to go, by default the unit is pre-formatted for Mac OS X operation.
For Windows, a small format procedure is needed.
2.1. Packaging
Please do not discard the boxes and packing materials in case you
might need to reuse them later. Always ship the product in its original
packaging. Improperly packaged products will be subjected to shipping
damage, for which you will be liable for the repair.
2.2. Check List
• Installation and User’s Manual.
• Power Cord (North America user only).
• A 12 or 16 disk bay generation 2 system enclosure.
• 8, 12, or 16 generation 2 Disk Modules.
• A PCI-e x8 Host Bus Extender card.
• A 1-meter PCI-e x8 Extender Cable. (3, 7 and 10-meters optional)
• Rackmount rails (optional)
Page 10
PRO RX g2 Installation and User’s Manual
3. Overview
3.1. The Bezel
The front bezel can be easily removed to access the Disk Modules. The bezel is
held on by four snap pins located at each of the four corners.
Use both hands, push from behind the left and right side of the bezel. Access
through the rack mount handles.
3.2. Disk Module
Disk Module
Lock Pin
Pull right
to unlock
during
insert and
removal.
