Page 16
Quad & Duo Quad Installation and User’s Manual

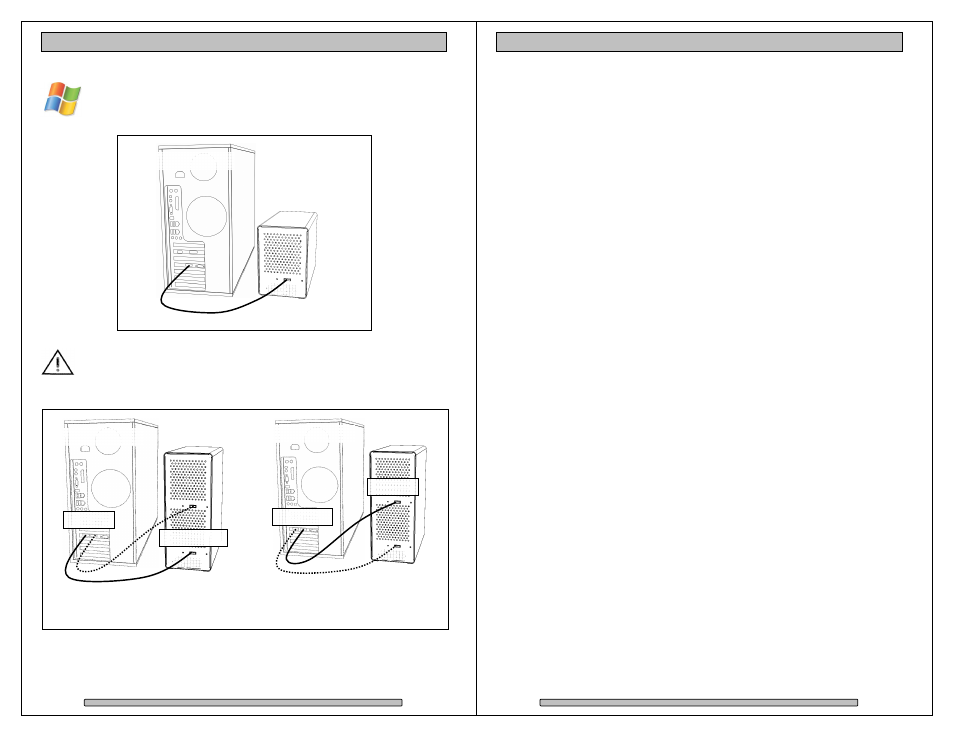

4.3.3. Windows PC Connection
Connect the Quad or Duo Quad to the RAID Controller with the
supplied Quad Channel SATA II cable(s).
A typical Windows PC such as the HP xw workstation
Duo Quad: For proper drive numbering assignments, it is important to
match up the ports on the RAID Controller to the ports on the Duo Quad.
Carefully follow the cabling instruction in the diagram below.
A typical Windows PC such as the HP xw workstation
Left Port
Top Port
Right Port
Bottom Port
Left side port to
Bottom of Duo Quad
Right side port to
Top of Duo Quad
Windows PC
Windows PC
Windows PC
Page 17
Quad & Duo Quad Installation and User’s Manual
(Page left blank intentionally)
