Spreading Wings S900

User Manual

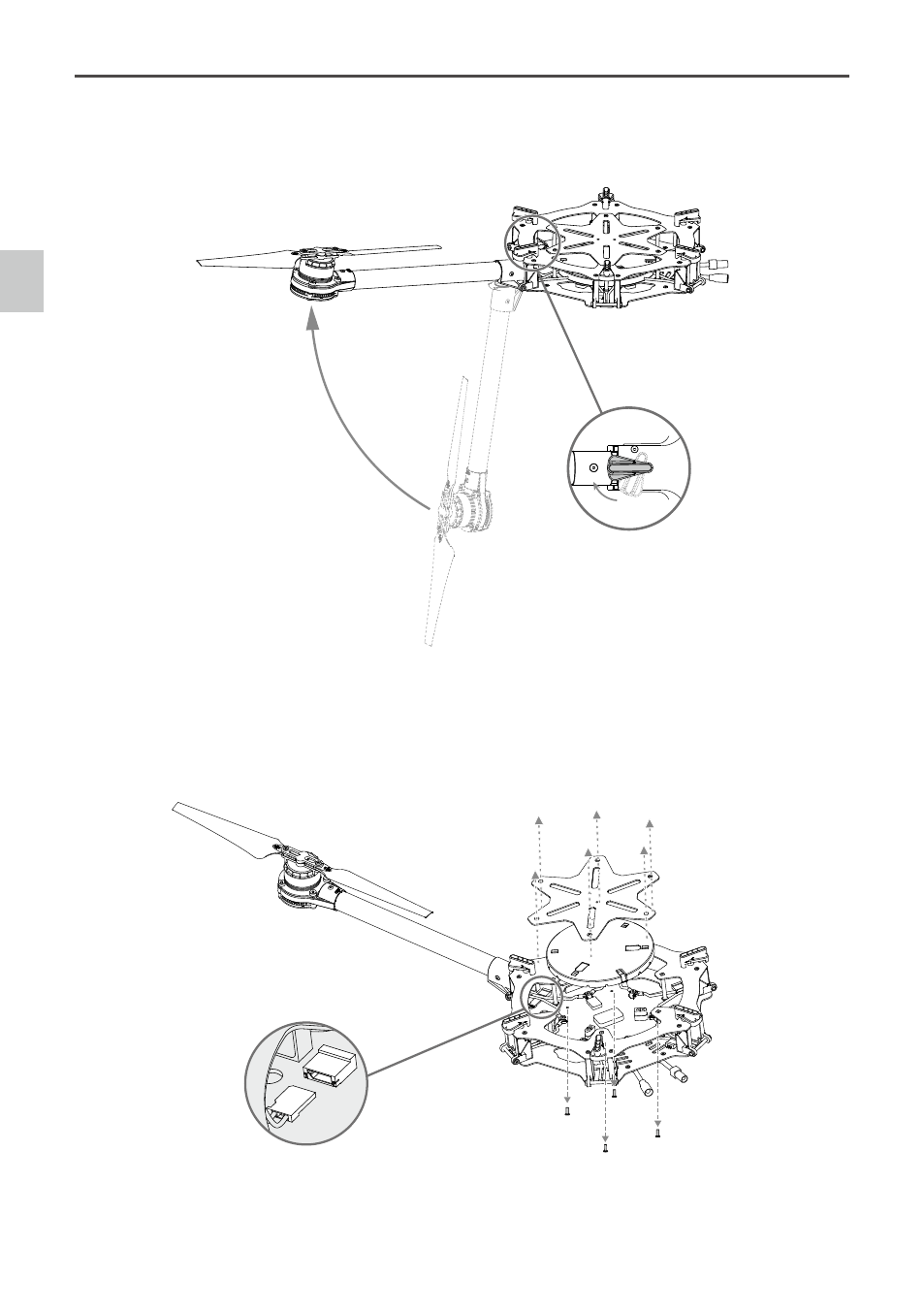

5. Gently lift the frame arm.

6. Twist the red knob to lock each arm in place. Be sure there is an audible click, which indicates a proper

lock. Check the arm for movement. To store, untwist the knob and lower the frame arm.

7. Now unscrew 6 screws (M2.5×8 cheese) on the upper plate of the center frame and remove the upper

plate. Then unscrew the 4 screws (M3×8 self-tapping, found under the center frame) of the round cover

and remove it to gain access to the ESC and power cable installation area.

8. Plug each ESC signal cable into the slot near each arm on the center frame.

Mounting Frame Arms
