Mounting the Landing Gear
Instructions

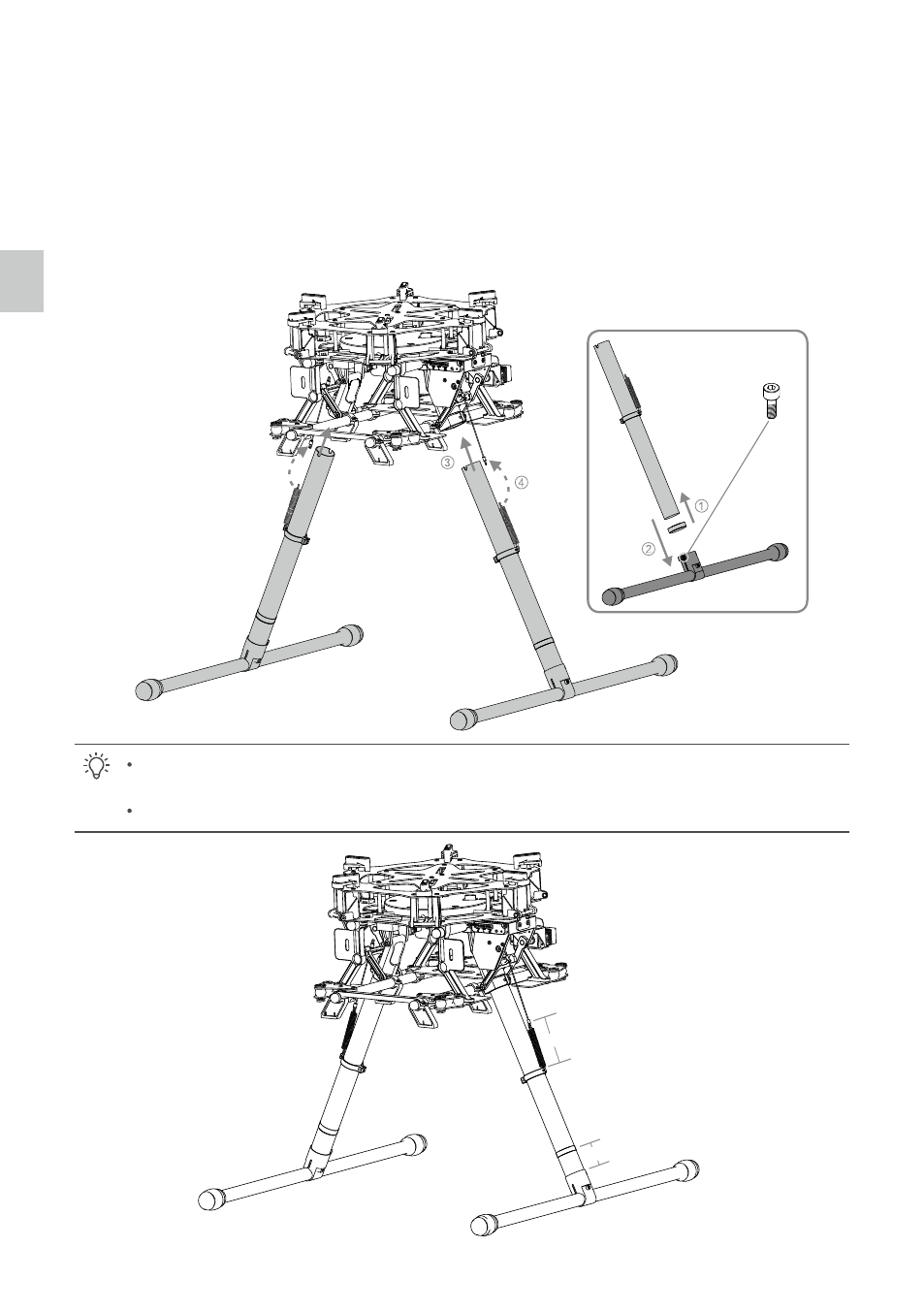

1. Put one landing gear leg ring onto each landing gear leg.
2. Insert one landing gear leg into each landing skid tube and secure it in place by tightening the M2.5×8
(socket cap) screw. Ensure silicone rubber dampers are attached to each end.
3. Insert the landing gear leg into connection point on the center frame. Affix in place with M3×8 screws.
4. Connect both springs on the legs to the center frame.
Note the springs are 58.5mm before connecting to the center frame, and are stretched to 70mm
when mounting is completed.
It is recommended that the landing gear leg ring be placed about 30mm above the landing skid tube.
70mm
30mm
Mounting the Landing Gear
M2.5×8
(socket cap)
