Spreading Wings S900
User Manual
14
©
2014 DJI. All Rights Reserved.
Mounting Electronics and Wiring
If using a DJI WK-M flight controller, you must use the wires that came with the WK-M. M1 through
M6 correspond to each motor number.

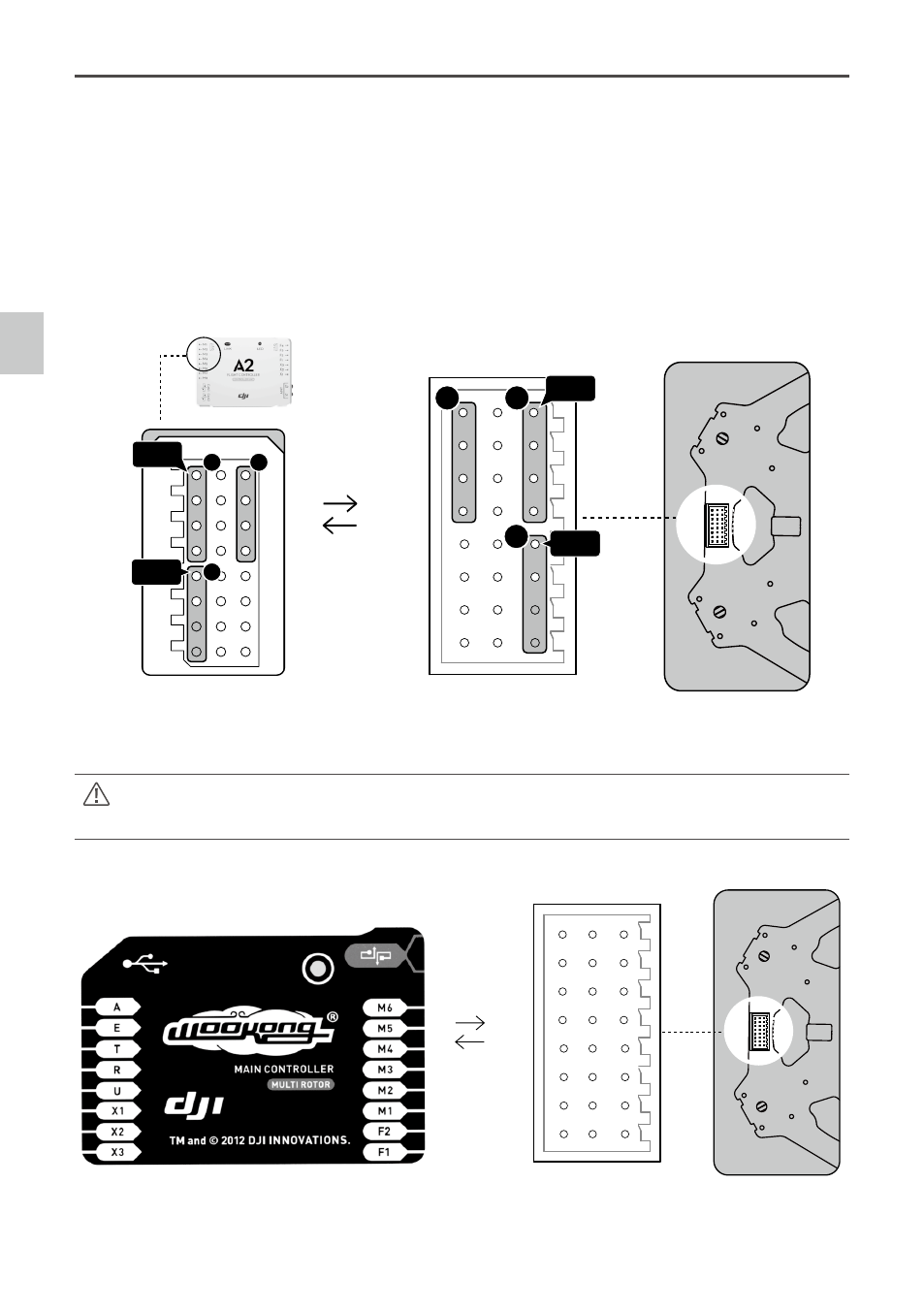

Connecting the flight controller to the center frame
1. Connect the flight control system according to your flight control system user manual.
2. Plug in the connector sets to the ESC signal outlet on the center frame. Then plug in the connector set to
flight controller as shown below.
(1) Yellow 4-pin cables are for M1~ M4 connections. The yellow cable should be connected to M1.
(2) Brown 4-pin cables are for M5~ M6 connections. The brown cable should be connected to M5.
(3) Black 4-pin cables are for four continuous ground pins connections. M1~M4 are connected as the
following diagram shows.
M1
2
3
4
5
6
M
M
M
M
M
1
brown
2
3
M1
M2
M3
M4
M5
M6
yellow
1
2
3
M1
M2
M3
M4
M5
M6
yellow
brown
M1
2
3
4
5
6
M
M
M
M
M
M1
M2
M3
M4
M5
M6
3
1
4
2
5
6
4
6
3
5
2
1
the ESC Signal Outlet
the ESC Signal Outlet
WKM Flight Controller
A2 Flight Controller
