Package No. Name
Part No.
3
S900 Lock Knob
S9020301, S9020302, M3×8 (self-tapping)
9
S900 Center Frame Support Pillar
S9020901, M2.5×8 (cheese)
12
S900 Arm Mounting Bracket
S9021201L, S9021202R, S9021203,
M3×6.5
14
S900 Center Frame Bottom Board
S9021401, M3×4.5 (cheese), M3×8 (self-
tapping), M3×6.5, M3×5.5
15
S900 Center Frame Top Board
S9021501, S9021502, S9021503, M3×6.5,
M2.5×8 (cheese)
11
S900 Frame Arm Mounting Steel Shaft S9021101
Landing Gear
S9031601/
S9033304
S9031603/
S9033305
S9031602/
S9033303
S9031604/
S9033306
S9031605/
S9033307
S9033301
S9033302
M2.5x5
S9031802
S9031803
S9031804
S9031805
M2.5x8(cheese)
S9031806
S9031807
M3x8
S9031808
S9031809
M1.6x5
S9031810
S9031811
S9031812
S9031814
S9031815
S9031801
S9031712
S9031701
M2.5x10 (socket cap)
M2.5x13
M3x6.5
S9031903
S9031904
S9031905
M3x4.5
M3x6.5
M3x6.8
S9031902
S9031901
S9032001
S9032002
M2.5x8 (socket cap)
M2.5x8 (cheese)
S9032601
S9032602
S9032603
S9032606
M3x22 (socket cap)
S9032604
S9032605
M2.5x8 (socket cap)
S9030201
S9033313
S9033308
S9033309
S9033310
S9033311
S9033312
S9031713/
S9031813
S9033314

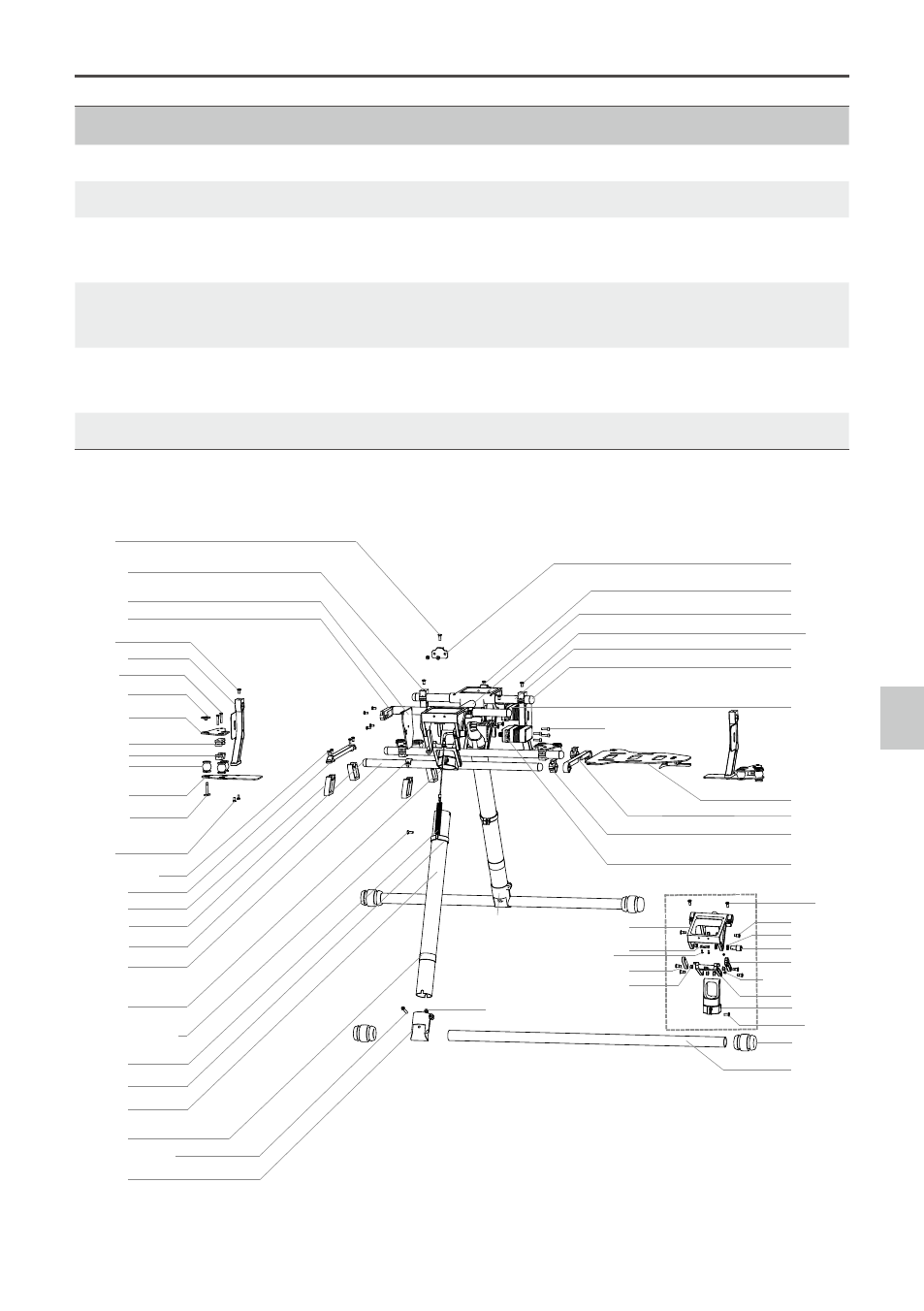

Caution (1) Parts within the dotted box are mirrored against each other.
Except for S9031814 and S9031815.
(1)
Part List
