8
PRELIMINARY
4. CONTROL PANEL
CONTROL PANEL
5
6
Power
Supply
DMX 512
DMX 512
5 PIN

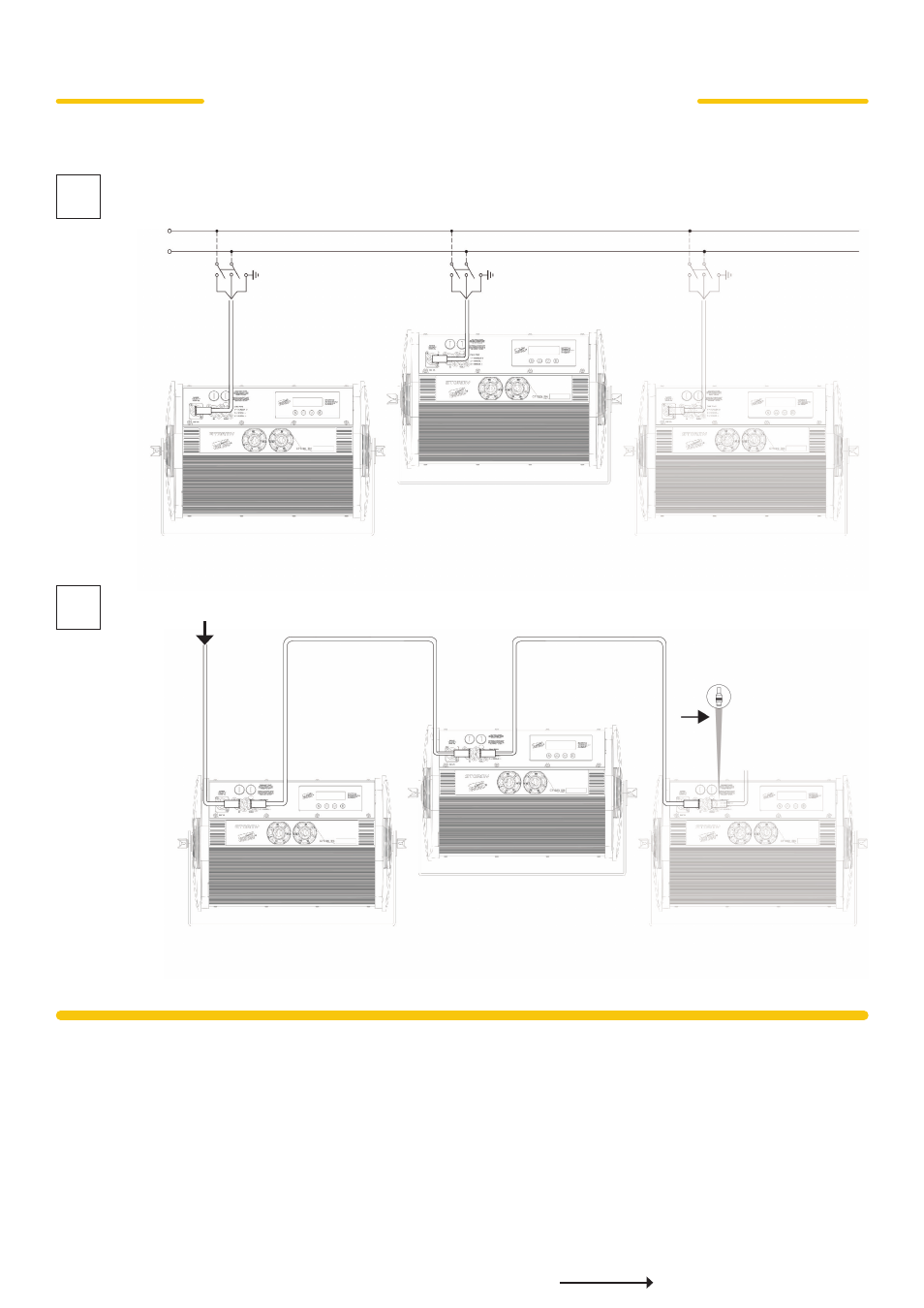

Fig. 5 - Connection to the power mains
Fig. 6 - Connections to the control signal line (DMX)
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω characteristic
impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics
differing from those specified. End connections must be made using XLR type 3-pin male/female
connectors. A terminating plug must be inserted on the last projector with a resistance of 120
(minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the
connectors. The casing must be connected to the shield braid and pin 1 of the connectors.
Continued
STORMY C71090
STORMY CC C71091
