aPPEndix a –
Pipe Material, Pipe Type And Data Tables
After selecting a Pipe material, you can select Pipe Types for
that material and get data for each type, including Outside
Diameter, Internal Diameter, Wall Thickness, Pipe Weight per
Foot, Filled Weight per Foot, and Internal Area.

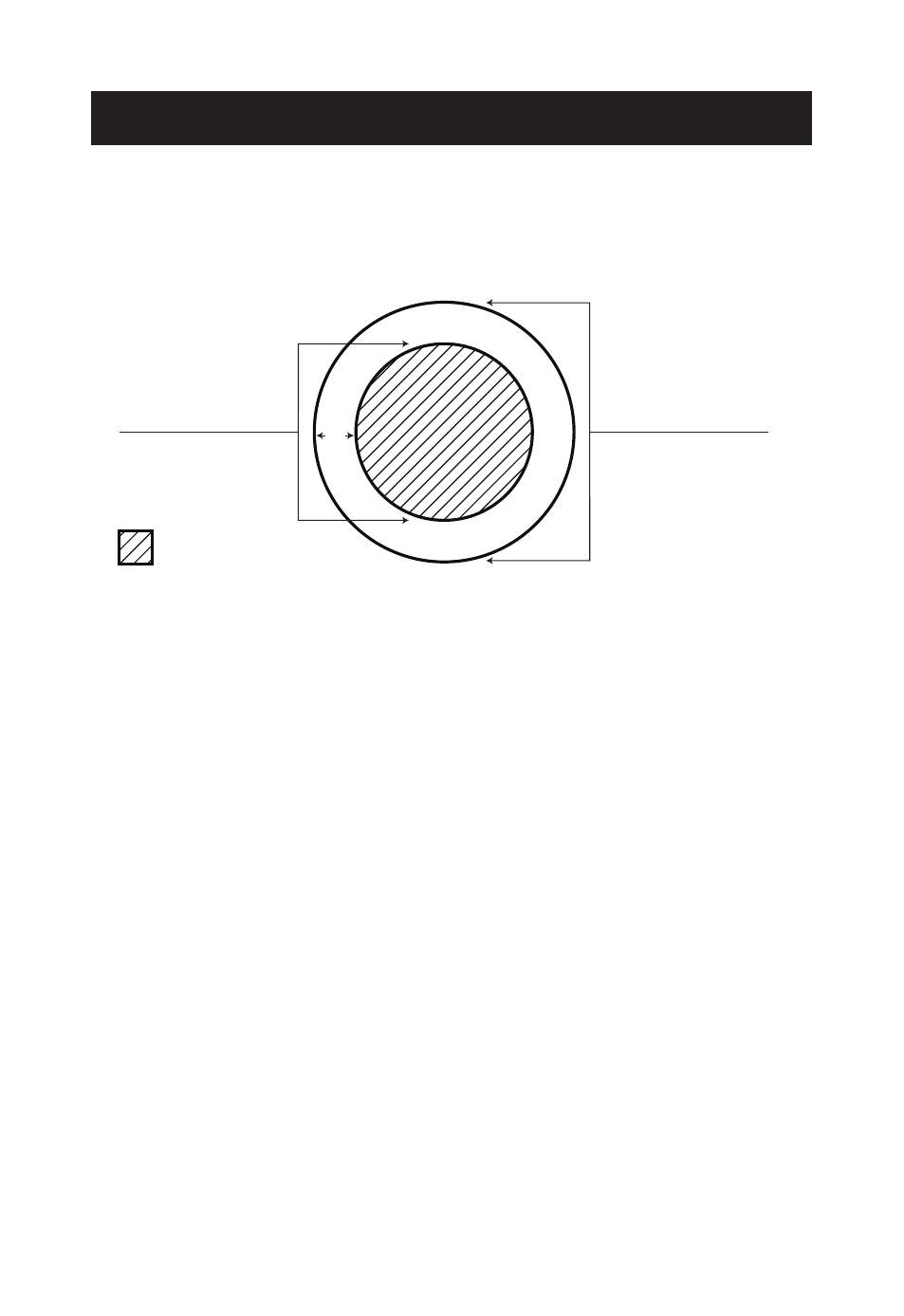

= Internal Area
T
= Wall Thickness
Internal Diameter
External Diameter
T
PIPE MATERIALS
Plastic, Copper, Steel, Stainless Steel, Brass, Aluminum and
Cast Iron. The default is Steel. The calculator will recall the last
material used. After a Clear All or Factory Reset, the default is
displayed first.
PIPE TYPES FOR EACH MATERIAL
Stainless Steel
Schedules: 40-S, 80-S, 160, 5-S, 10-S
Plastic
Schedules: 40, 80, 120; SDR 21, SDR 26,
SDR 32.5, SDR 41
Copper
Type L, Type K, Type M, Type DWV, Medical Type L,
Medical Type K, ACR-Annealed, ACR-Drawn
Steel, Brass, Aluminum, Cast Iron
Schedules: Std, 40, 60; XS, 80, 100, 120, 140, 160; XSS,
10, 20, 30
