12 — P

iPe

T

rades

P

ro

Pipefitting Project Keys

Travel

Slope

Of

fset

Angleº

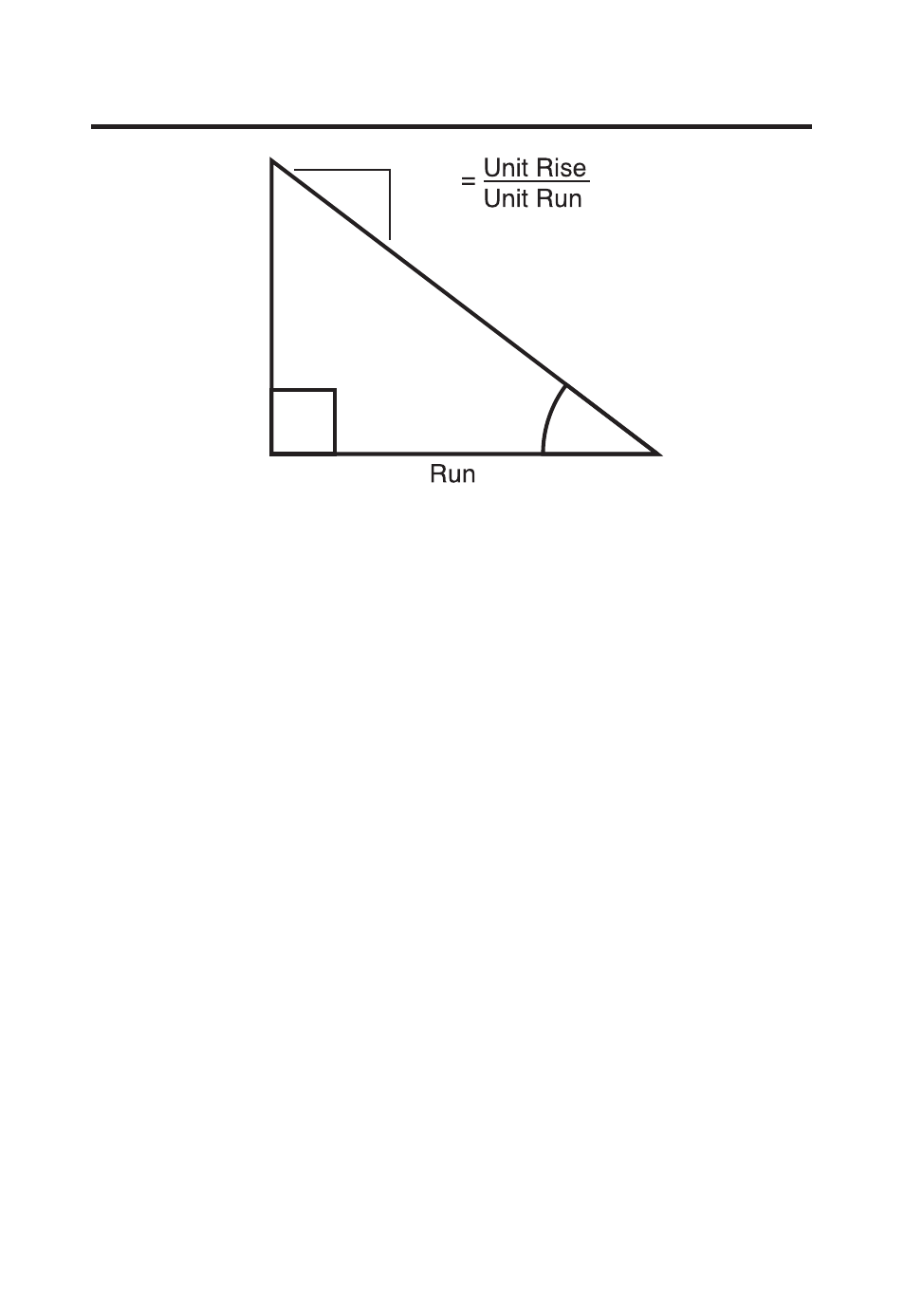

Enters or calculates a linear Slope, Slope Angle,

or Percent Grade. The linear slope is the amount

of "Offset" over 12 inches of "Run." Values may be

entered as:

● a Dimension:   A

● an Angle or Degrees:   A

● a Percentage (percent grade): 7    A

Once an angle or slope has been entered, consec-

utive presses of A will convert to the remaining

formats listed above.

Take-Out (T.O./Arc) – Used to enter or solve fit-

ting Take-Outs when calculating pipe cut lengths.

Calculates inner, center, and outer arc lengths for

marking field cut fittings.

Calculates or enters the Offset (Rise).

Welder's Gap – Defines the Welder's Gap sub-

tracted from the end to end pipe length calculation.

Default value is 1/8", 0 is a valid value.

Enters or calculates the Run.

Enters or calculates the Travel (Diagonal).
