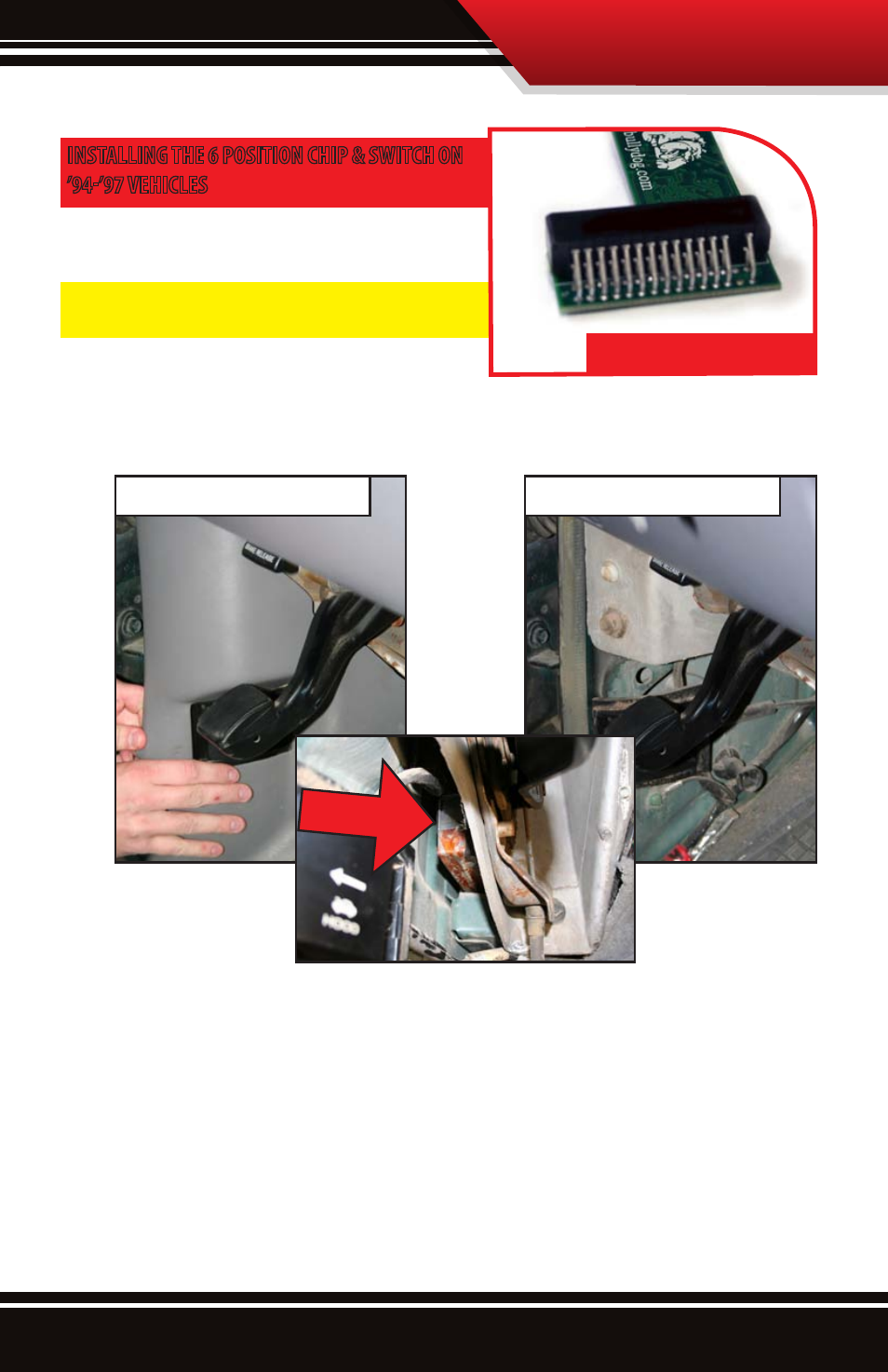

inSTAllATiOn STePS
6 Position Chip
InstallIng the 6 posItIon chIp & sWItch on
’94-’97 vehIcles
In this steps you will route the switch into the cab and
plug the 6 Position Chip into the ECU.
IMPORTANT: The steps on this page are performed on ’94-’97
vehicles only. If your vehicle is not a ’94-’97 skip this page.
1. With the contact points clean, the 6 Position Chip can now be
installed onto the ECU. Gently work the 6 Position Chip onto the connector. You may have to work it side to side in order to
slide it completely onto the connector.
2. Ensure that the connections are solid with both the chip as well as the switch.
3. The switch now needs to be routed into the cab. To do so, the kick plate located inside the cab by the driver’s
side door needs to be removed. To remove the kick plate, remove one screw in the door’s molding and a large
plastic rivet that is located in the center of the kick plate.
4. With the kick plate removed and the ECU removed you should be able to see through the firewall into the
engine bay. Take the ECU inside the engine bay and first route the switch through the ECU housing and then
reinstall the ECU back in it’s housing.
5. Reverse the removal process and put the seal back in place and reconnect the cabling. Leave the kick plate
off until you have the switch installed.
Removal of the Kick Plate Kick Plate Removed
ECU
