DMX pORT SETTINGS: (CONTINUED)
port Mode = Normal
Device will send data received from the DMX IN port to the network
universe regardless of other data being received.
port Mode = Backup
Device will NOT automatically send any data from this port. This input
port will only transmit data to the network universe when the network
universe is receiving no other active data input.

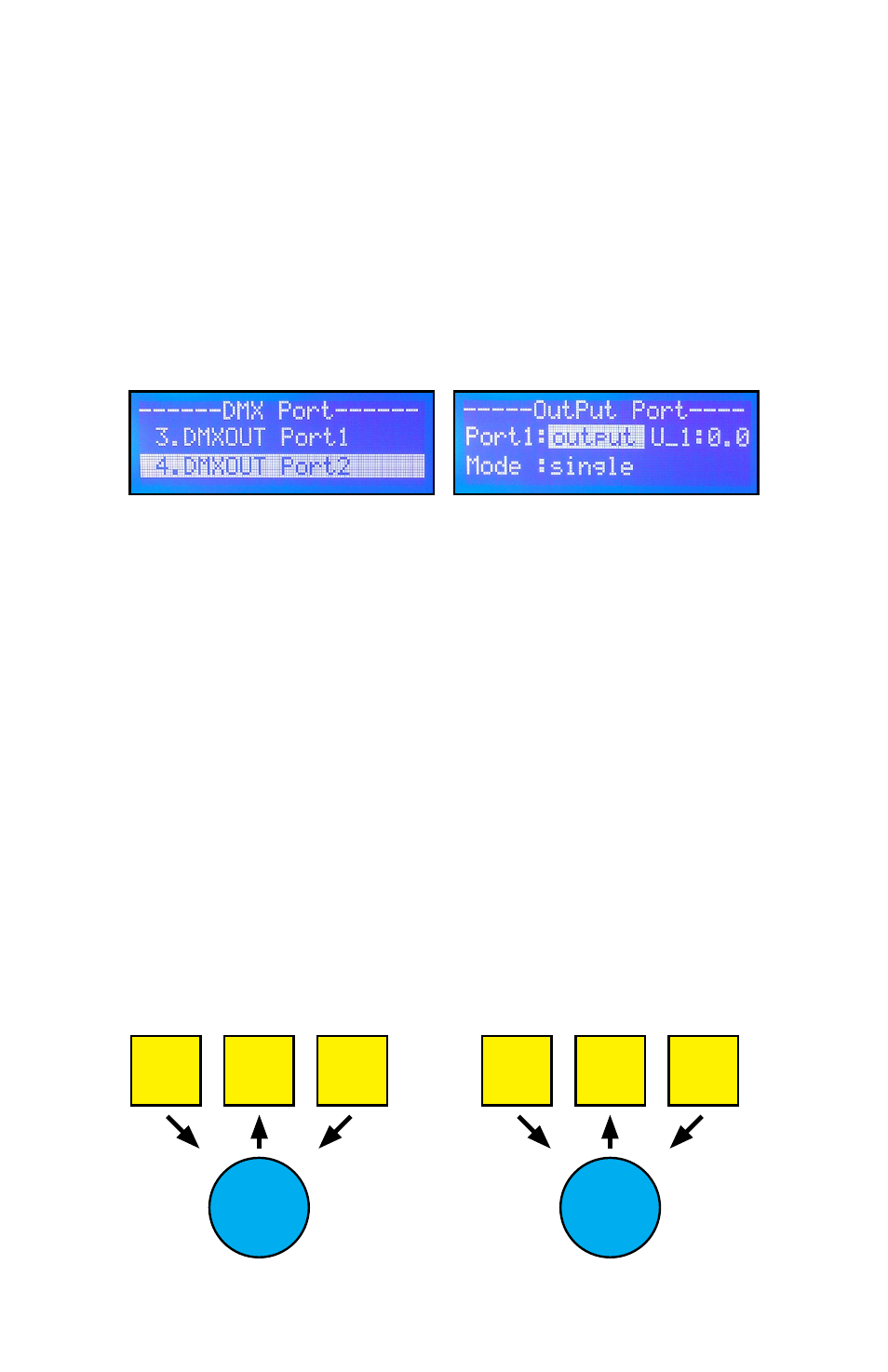

2.) DMXOUT port 1-8
You can set the Port Status of any the DMX Ports 1-8 as “output” or
“disabled”. When the Port Status is set to “output”, the Port Mode
can be set to one of the following (4) modes:
Zero = The port sends a DMX test signal only with all channels at 0%.
Single = The port sends the DMX values of the selected universe.
LTp = (Latest Takes Precedence) Port will output the latest channel
activity between 2 selected universes. It compares the principal and
secondary universes and sends the latest one to the network.
HTp = (Highest Takes Precedence) Like Single, but will merge two
DMX universes (principal and secondary). It will compare and output
the one with higher value to the network. And like Single and LTP, the
universes can be set within the range of 0.0-F.F.
DMX
IN
DMX
OUT
IP
IN
Merger
LTP
HTP
DMX
IN
DMX
OUT
DMX
IN
Merger
LTP
HTP
