AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC

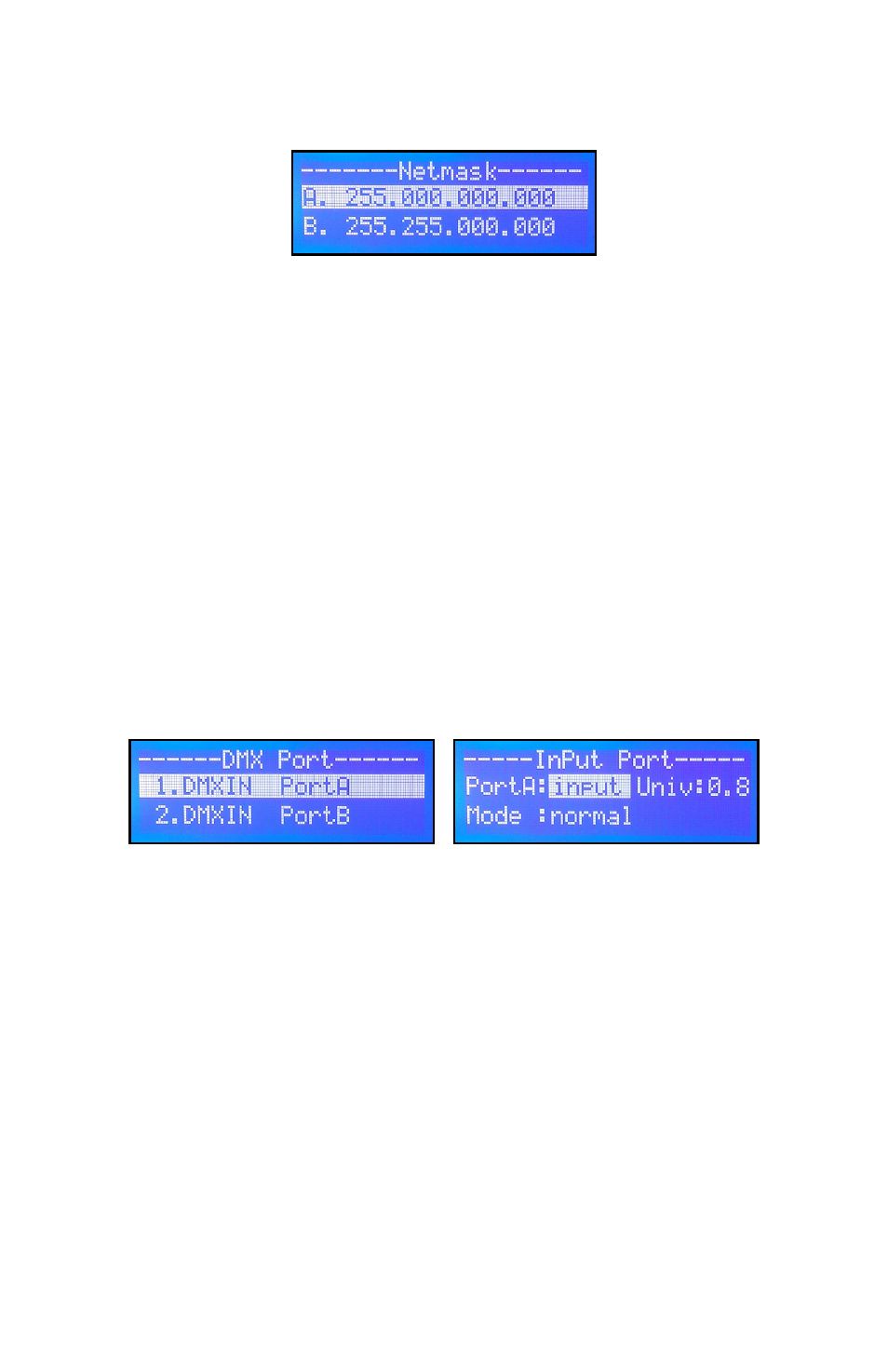

SETTING THE NETMASk:
This allows you to choose from the 3 commonly used network mask
configurations that you can change per your system requirements.
Enter the main menu by pressing the
the buttons to highlight “3. Set Netmask”. Press
the button. Then use the buttons to scroll
through the 3 choices and push the button when your
selection is highlighted.
To finish setting the netmask, you must save your changes by using
the buttons to scroll to “Enter”, and then push the
button.
DMX pORT SETTINGS:
Enter the main menu by pressing the
the buttons to highlight “4. Set DMX port”. Press
the button. Then use the buttons to scroll
through the DMX in/out port selections and push the button
when highlighted.
1.) DMXIN port A/B
DMX IN Port A/B can be set as “input” or “disabled” status. “Univ”
(Universe), can be set within the range 0.0 - F.F. When the DMX Port is
set as “input”, the Port Mode can be set as “normal” or “Backup”.
For all of the DMX Port Settings on page 8, use the
buttons to scroll through your choices, and push the button
to confirm. Repeat this process for each group as necessary.
