2. MEET THE AuTOBAHN™ 8

MAIN FEATURES:

• ArtNet/DMX bilateral signal conversion

• 1x RJ45 Neutrik™ EtherCON® Ethernet LAN port, 10/100M,

supports TCP/IP protocol

• 2x DMX inputs and 8x DMX outputs, each photoelectrically isolated

• Auto MDI/MDI-X ethernet connector

• Supports standard DMX-512 and ArtNet protocol

• DMX input/outputs can be set to enabled or disabled

• Each DMX output can be set to single, zero, HTP, or LTP mode

• Each DMX input can be set to normal or backup mode

• DMX splitter/merger functionality

• Manual IP address settings

• LCD display indicates each DMX input/output status

• Ethernet LED status indicator

• Quick and easy to set user presets

OvERvIEW:

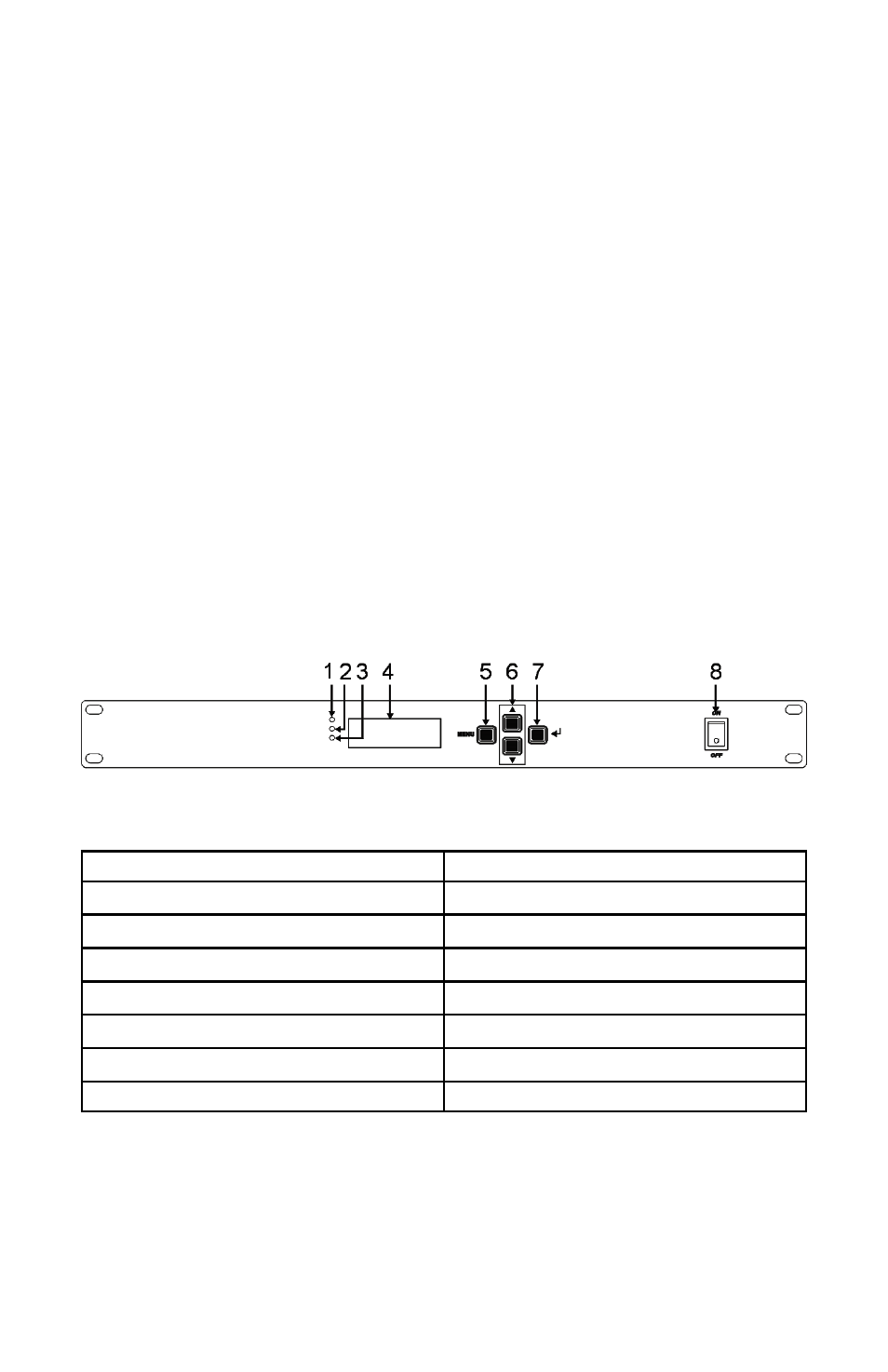

Front Side

1.) Power LED

Shows unit on/off status

2.) Link LED

Shows network connect status

3.) Activity LED

Flashes when data transmits

4.) LCD Display

Shows status & available options

5.) Menu Button

Return to main or previous menu

6.) Up/Down Buttons

To scroll through menu selections

7.) Enter Button

To confirm a menu selection

8.) Power Switch

To power ON/OFF the unit
