— 8 —
Pump Motor Rotation
WARNING
Before performing any service that involves electrical
connection or disconnection and/or exposure to
electrical components, always perform the Electrical
LOCKOUT/TAGOUT Procedure. Disconnect all circuits.
Failure to comply with this procedure can cause
property damage, injury or death.

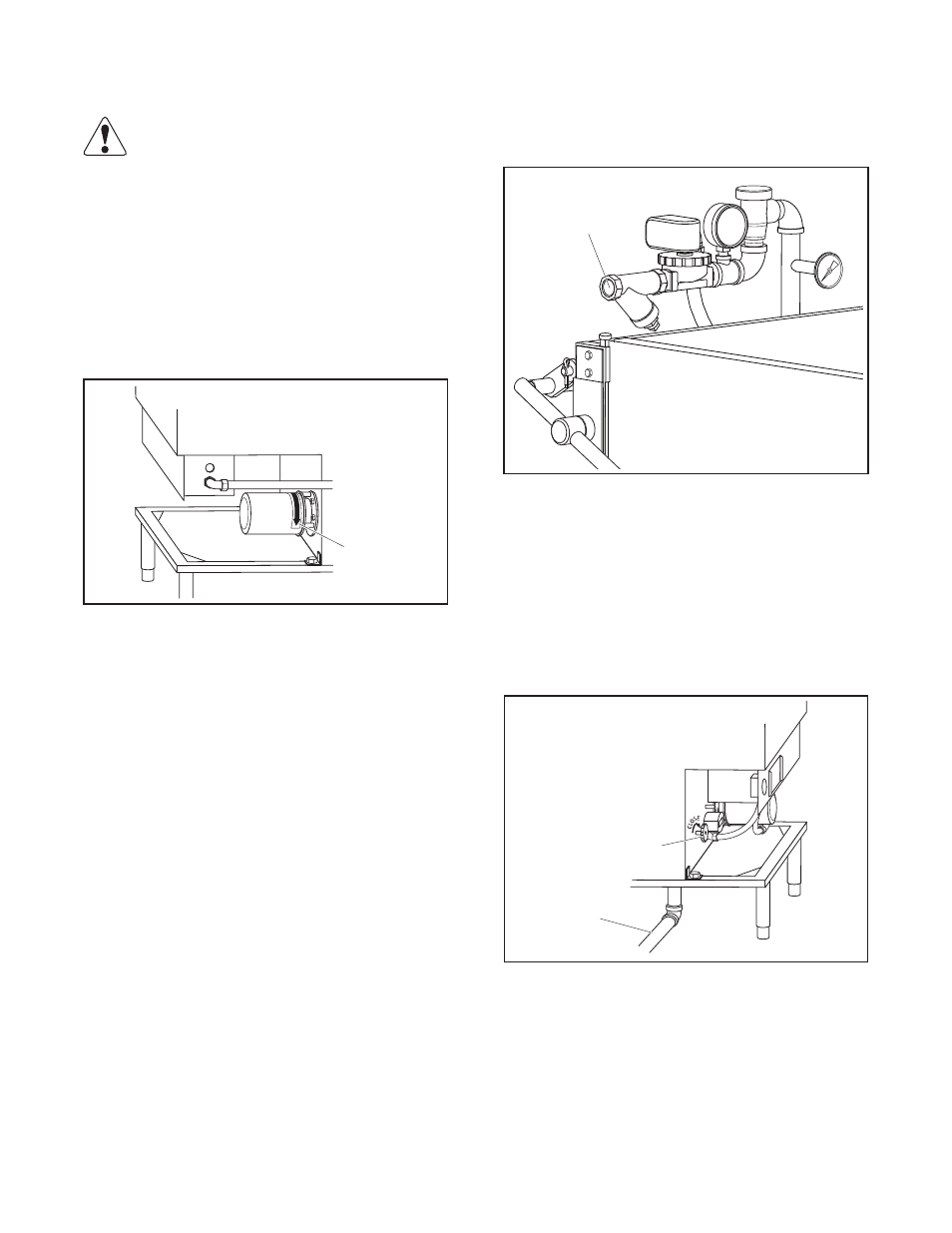

The pump motor(s) must rotate in a clockwise direction
as viewed from the front of the dishwasher. An arrow
on the side of the pump motor(s) indicates the correct
motor direction.
Motor rotation
arrow
Pump Motor Rotation
This rotation was checked at the factory but must be
rechecked before putting the dishwasher into service.
Note: There may be more than one pump motor
depending on the model.
Fill/Rinse
Final Rinse water is used to fill the dishwasher’s wash
tank(s). The water supply must have a water temperature
of 180°-195° F with a dynamic flow pressure of 15 to 25
PSI at the dishwasher.
Note: If the dishwasher has been supplied with either a
machine mounted booster or a remote booster, the
water supply temperature must be 140° F minimum.
If the incoming water supply pressure is below the required
15 PSI, an optional pressure booster pump will be required.
If the incoming water supply pressure is greater than 25
PSI, a pressure reducing valve (optional) will be needed.
The unit requires 72 gal/hr of 140°F water.
Connect a ¾" pipe to the line strainer.
For a piping run greater than 20 ft, increase the pipe size
to insure proper flow pressure at the dishwasher.
Line Strainer
Line Strainer
Drains
Drain connections must comply with all local and national
code requirements.
Connect the tank drain(s) to the building drain connection
using 2” pipe.
Drain line
to sewer
Drain Valve Handle
Drain Installation
If a grease trap is required, it must be installed below the
drain line and have a capacity of 40 gallons per minute.
