— 13 —
K1
K1
L1
Ground
5*
2
FUSE
N.O.
DISPENSER
TRANSFORMER

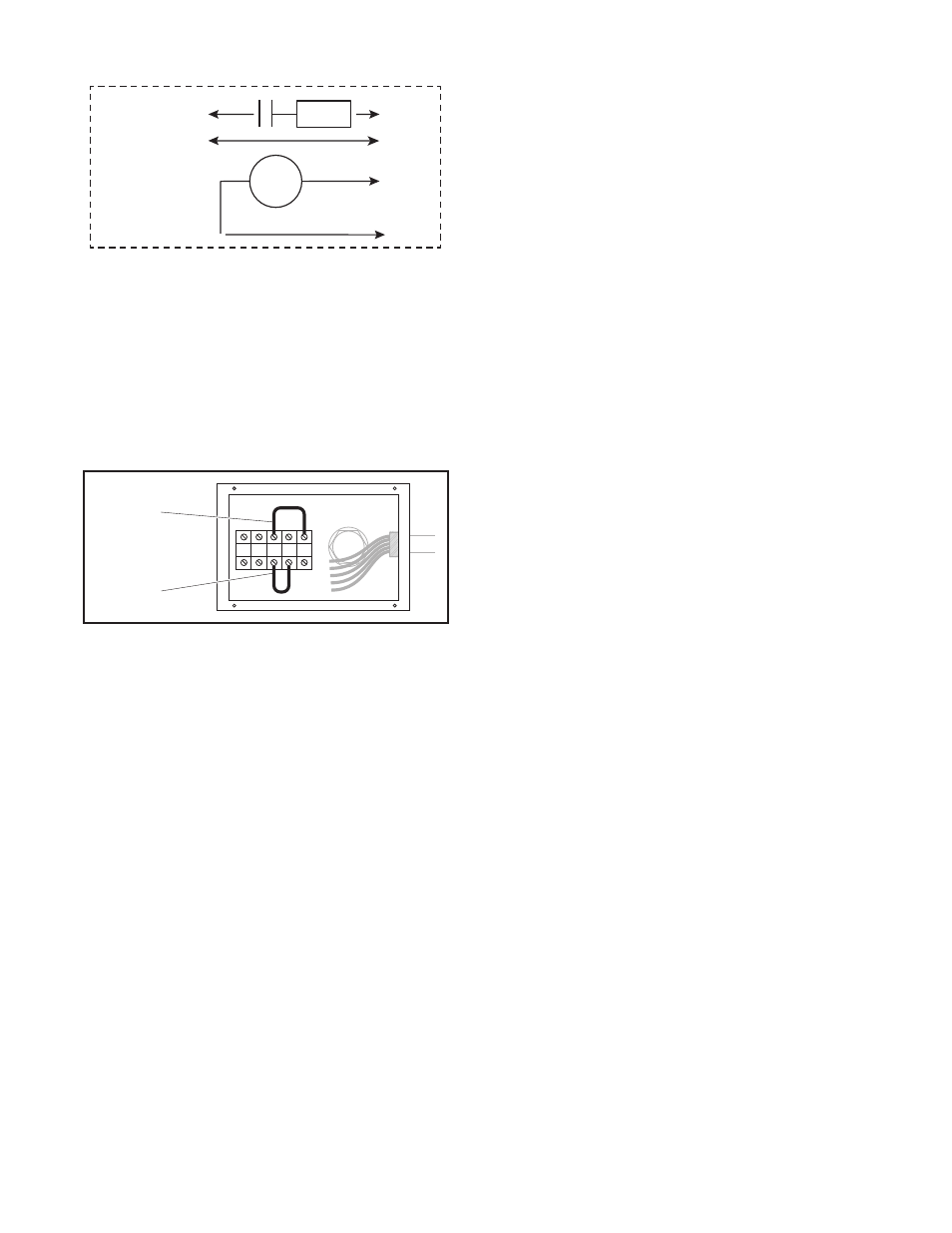

The designated wire connections for the dispensers are
found in the control box. #2 is common; the switched side
connection is determined by the serial number suffix.
Connections for machines manufactured after September
2005 with a suffix ABB and up:
Detergent – 8 & 2
Rinse – 6 & 2
L1 L2 2 6 8
Detergent
Rinse
