Bird Technologies 5012 User Manual
Page 9
Burst Average Power
Crest Factor
Complementary Cumulative Distribution Function (CCDF)

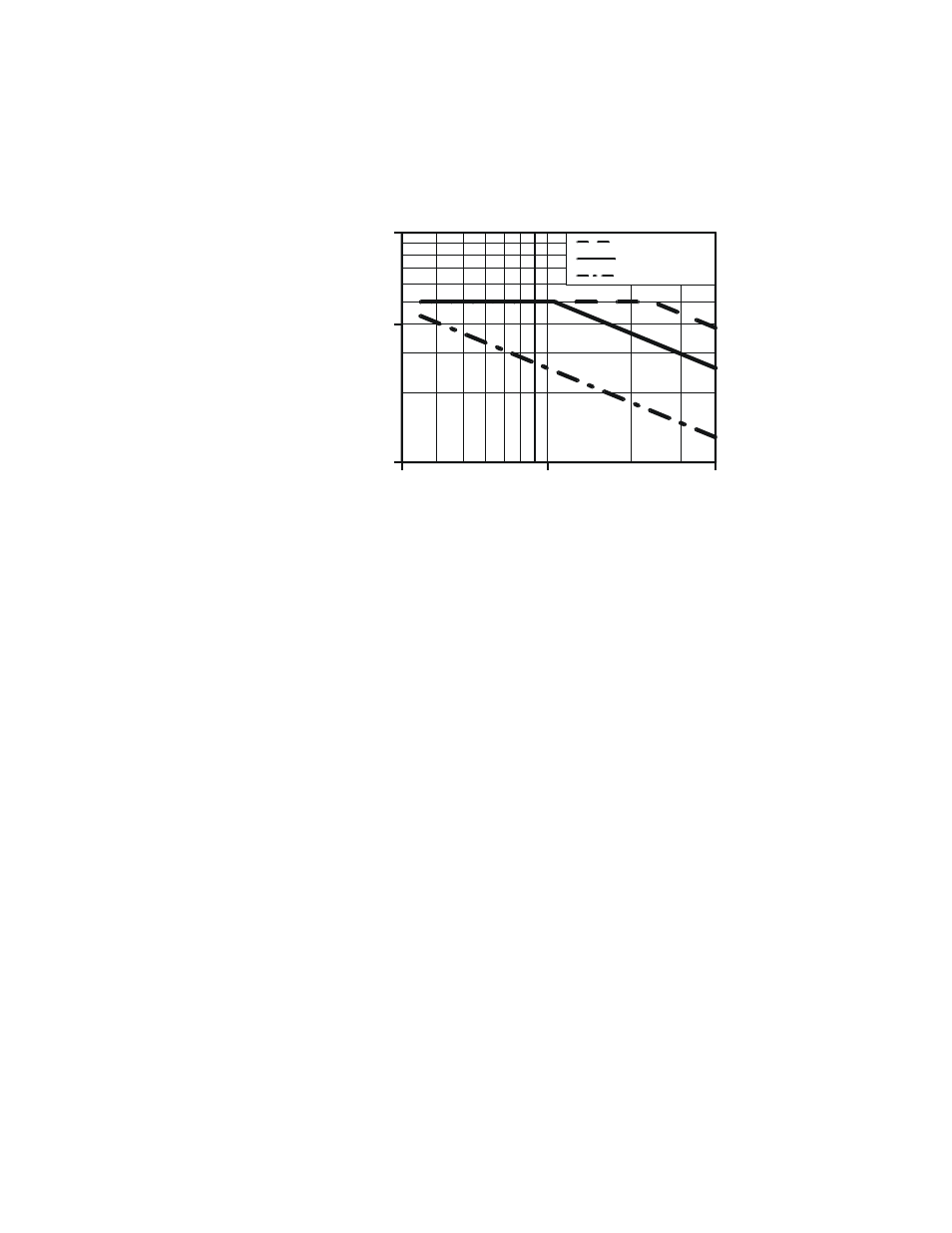

Figure 7
Max. Peak
Power
Power Range
10 – 150 W average
Burst Width
1 µs – 50 ms
Repetition Rate, Min
15 Hz
Duty Cycle (D)
0.001 – 1 (D = Burst Width / Period)
Measurement Uncert.
± (6% of reading + 0.05/D W)
*
*
Above 35 °C or below 15 °C add 3%
RF Power Range
4 – 150 W
Measurement Uncert.
Linear sum of peak and average power
uncertainty
Measurement Range
0.1 – 100%
Measurement Uncert.
± 0.2%
Threshold Level Range
4 – 400 W
Level Set Accuracy
As peak power uncert. + 2%
Frequency (GHZ)
4
1
0.3
P
eak Power (W
att
s
)
1000
400
100
VSWR = 1
VSWR = 1.5
VSWR = 3
Maximum Peak Power
