1. Remove the meter from the rack by removing the four screws
holding the panel in place.
2. Remove the leads from the meter, make a note of the
locations.
3. Remove the leads from the phono jacks.
4. Attach the new cable to the meter.
5. Push the cable plug into the phono jack.
6. Repeat if necessary with the second cable.
7. Install the panel in the rack, using the four screws removed
previously.
4201A004 The 4201A004 cables are also replaceable. Two of these cables are used per unit.
The 4201A004 cable is an interconnecting cable used between the Input and the
Output on the module. For identification, refer to figure 12. Replace by following the
instructions below.
1. Remove the defective cable by pulling the plugs out of the
phono jacks.
2. Label the locations if replacing more than one cable.
3. Install the new cable by pushing the plugs into the same
phono jacks as used by the defective cable.
If the problem is not corrected by any of the remedies in this chapter, contact a
qualified service center.

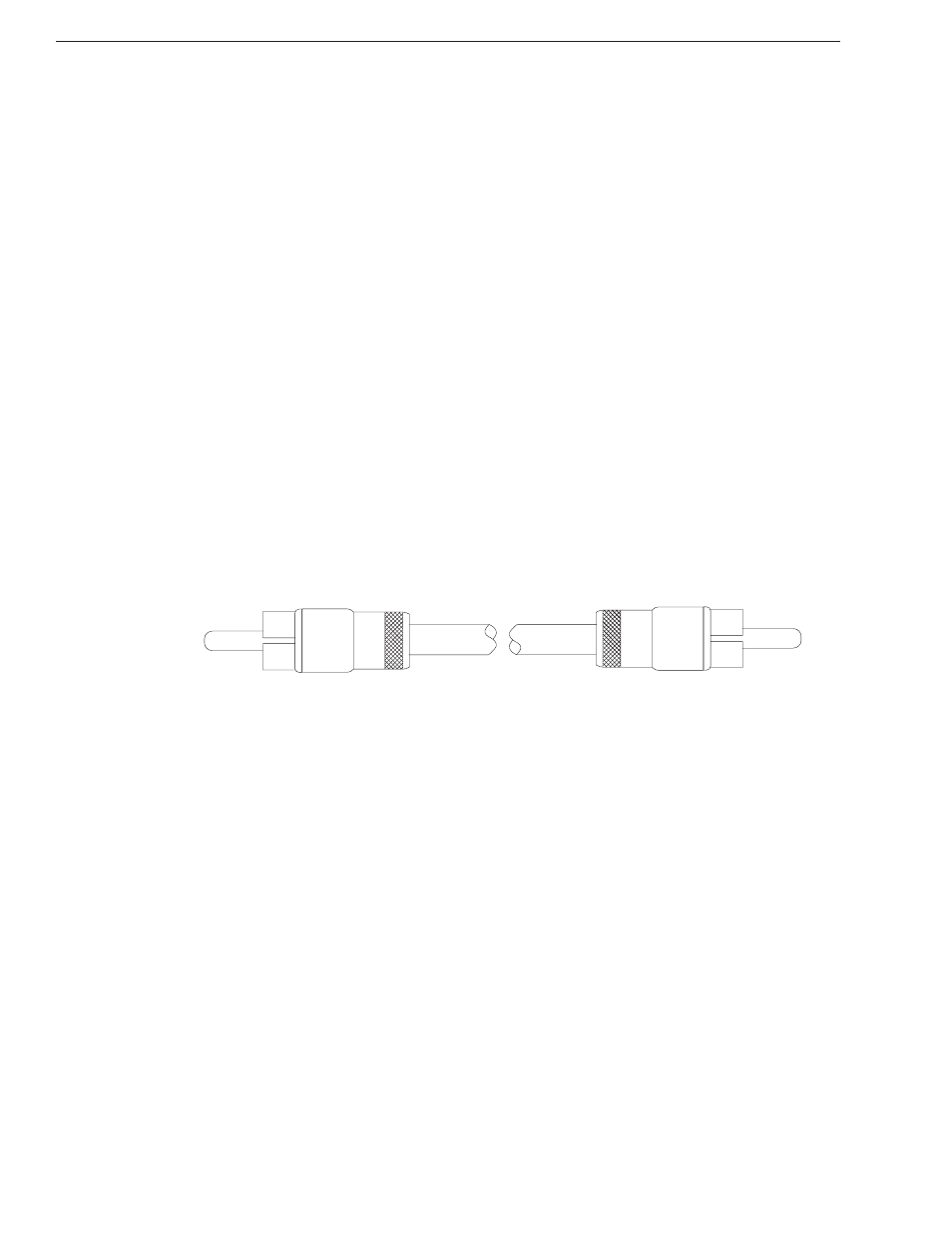

Figure 12
4201A004
Interconnecting
Cable
