Maintenance

Servicing the Resistor

The load is designed to be quickly and easily repaired in the field. If a signifi-
cant change in the dc resistance is noted or if the resistor should fail, inexpen-
sive replacement resistors are available.

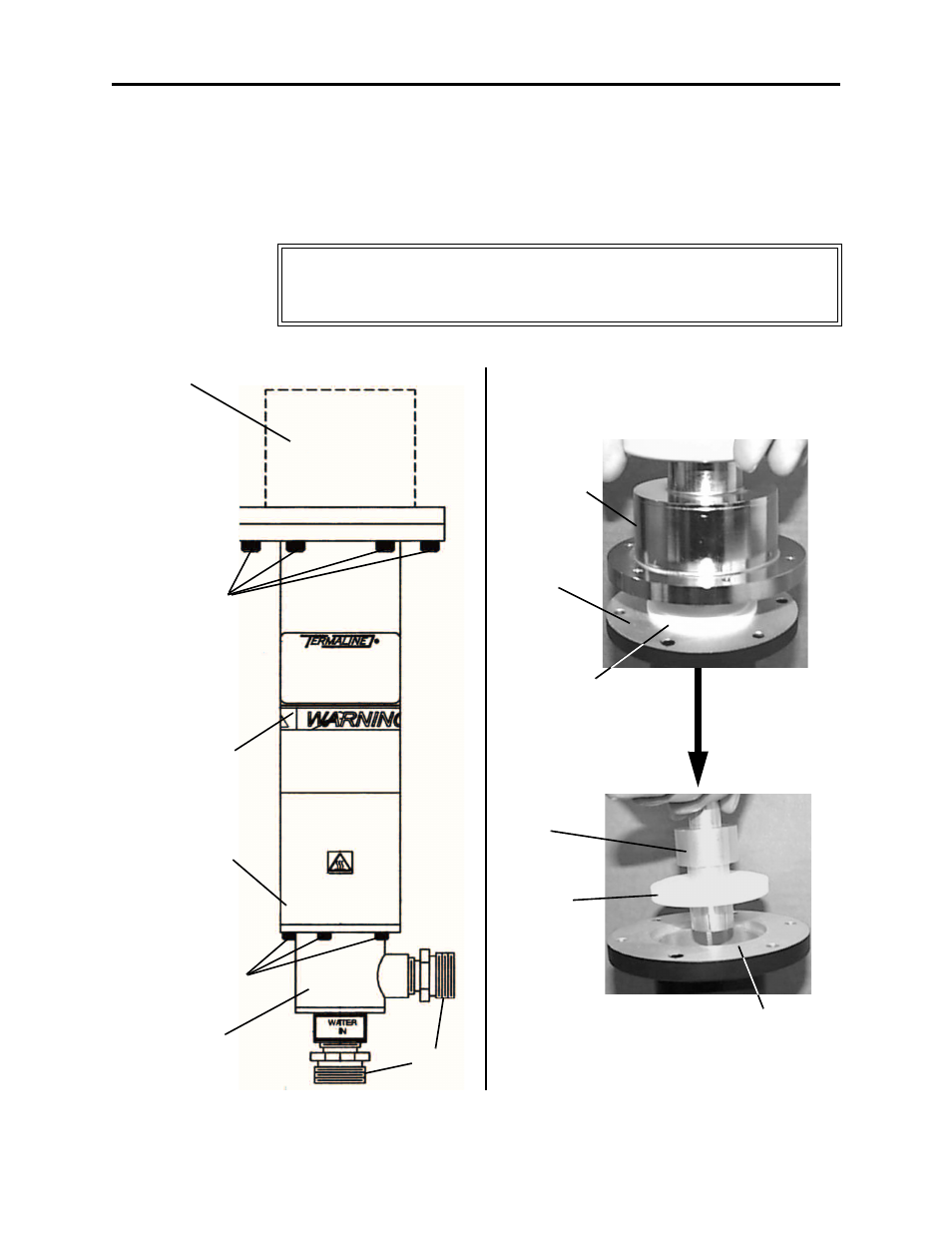

Figure 7 Load Exploded View - Model 8730

WARNING

Disconnect the unit from all power sources before servicing. The unit may

be energized from multiple sources. The potential for electric shock exists.

Outer Conductor

Label

Nipple
Locations

Housing

Water Chamber

Screws

Outer
Conductor

Housing
Flange

Center Conductor
Assembly

Housing Flange

Center Conductor
Assembly

Teflon Disk

DETAIL - Center
Conductor Assembly
