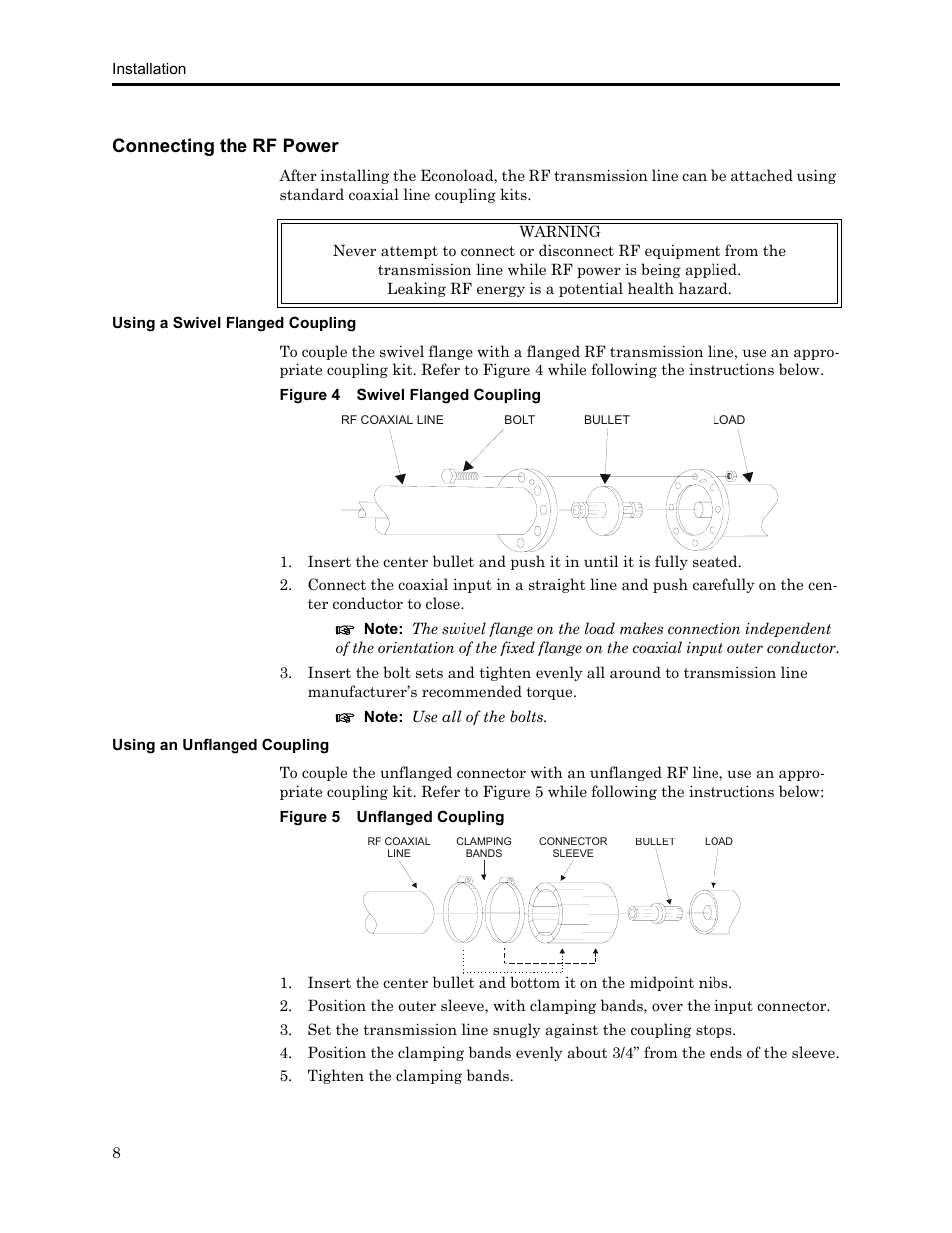

Connecting the rf power, Using a swivel flanged coupling, Figure 4 swivel flanged coupling – Bird Technologies 8730 Series User Manual
Page 20: Using an unflanged coupling, Figure 5 unflanged coupling
