Maintenance
17
Relpacing the Fuse
1. Pry, with a small flat head screwdriver, the fuse cover door tab out.
2. Open the fuse cover door.
3. Replace the fuses in the holder according to the AC mains voltage supplied.
Note:
6.3A, T (P/N 5A2257-24) for 115V and 3.15A, T, (P/N
5A2257- 21) for 230V applications.
4. Place the drawer into the AC line module.
5. Push the drawer until it snaps in place.

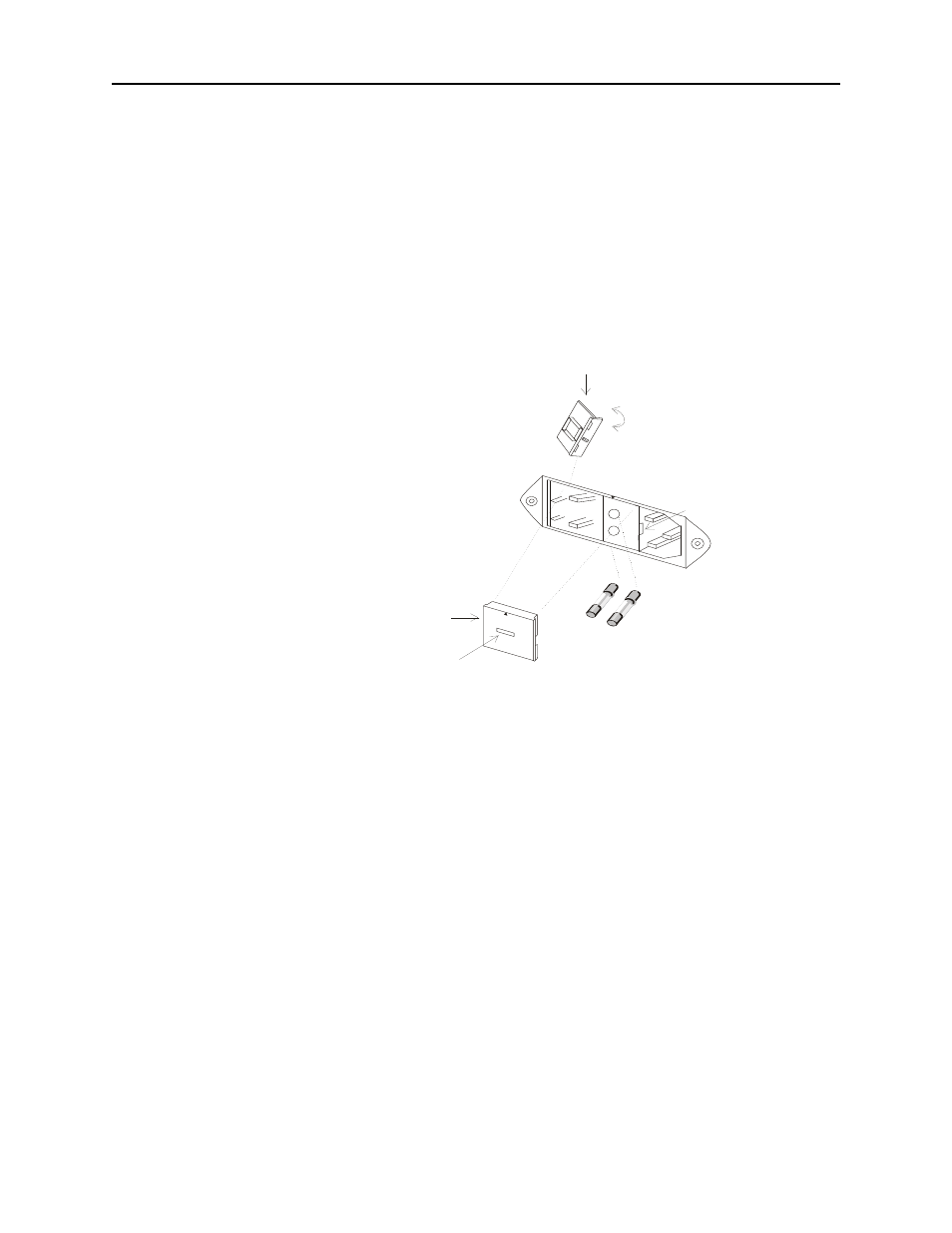

Figure 4 Fuse Replacement
Replacing the AC Line Module
1. Unplug the power cord from the AC line module.
2. Lay the load on its side.
3. Remove the bottom panel by removing the 14 screws securing it to the
unit.
4. Remove the screws at each end of the module while holding the hex nuts
on the other side of the front panel.
Note:
Retain the screws and other hardware after they have been
removed.
5. Pull the AC line module straight out and through the front panel.
6. Detach the wires connected to the module.
Note:
The wires utilize quick disconnects.
7. Reverse this procedure to replace the power module.
Storing
If the unit is to be unused or stored for any length of time, cover it with a cloth
or plastic sheet and store it in a moisture free, cool, dry place. There is no spe-
cial preparation for the unit however; moisture will be the greatest concern.
Storage temperatures should remain -40° to 70°C (-40° to 158°F) and the rela-
tive humidity percentage should remain low.
Line Voltage
Select Window
Fuse
Drawer Fuses
Voltage Select Card
Snap Out Here
