Bendix Commercial Vehicle Systems ACom Diagnostics V.6.7 User Manual
Page 36

36

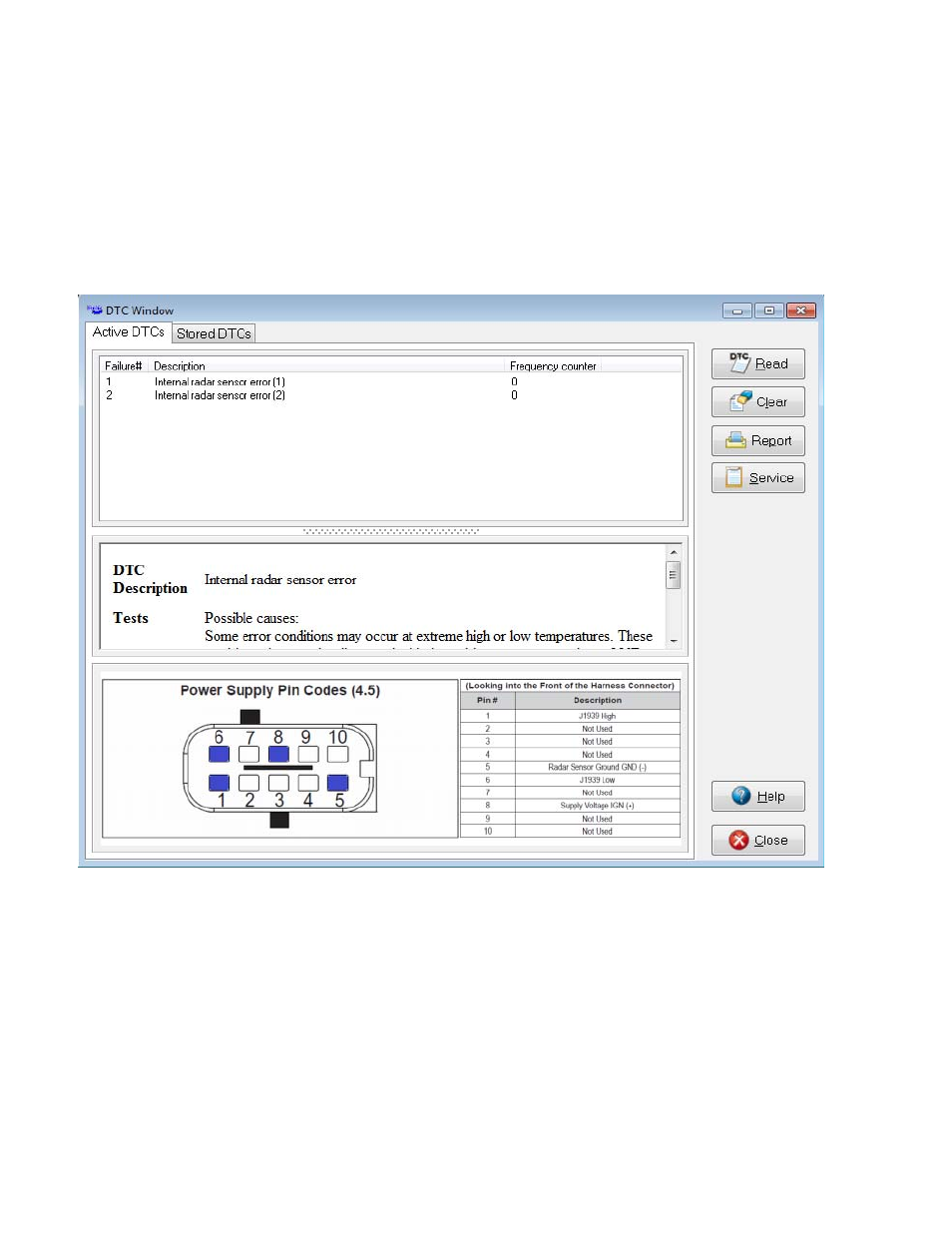

Diagnostic Trouble Code (DTC) Window‐ACB Sensor
The DTC screen provides the technician with active and stored DTC information. For the active and stored
DTC information, the windows are two tabs; switch between the two views by clicking on the tab. Each page
has two panes: the first pane displays the DTCs; and the second pane displays troubleshooting/repair
information corresponding to the DTC.
The DTC window will display the SPN (Suspect Parameter Number), FMI (Failure Mode Identifier), Error
Object, Failure Number, Description and Frequency Counter (number of occurrences the fault).
Figure 39
Control Buttons for DTC window
• The
Read
button will refresh the DTC information from the ECU
• The
Clear
button will clear the information from the tab
• The
Report
button opens a page to allow the technician to input data about the ECU and then allows
the technician to save, email or print a DTC report
• The
Service
button opens the service data
• The
HELP
button opens help page for DTC
• The
Close
button will close the window
