10
Bendix
®
ACom
®
Diagnostic Windows 6.7 Screen ECU Status Screen
Refer to the Service Data sheet for the system being diagnosed for all cautions and warnings; certain
system changes (e.g. sensor position changes) require approval from Bendix Engineering.
Bendix ® ACom ® Diagnostics opens, by default, to the Electronic Control Unit (ECU) status screen. This
screen provides the technician with a snap-shot of the ECU. In the System Data field, the following
information is displayed: system name, part number, serial number, software version, ABS configuration,
odometer, whether
Bendix ® Trailer Roll Stability Program (TRSP) is enabled or disabled and ADL program.
Additionally, in the Status field, the voltage and the number of active Diagnostic Trouble Codes (DTCs) − if
any − are displayed.

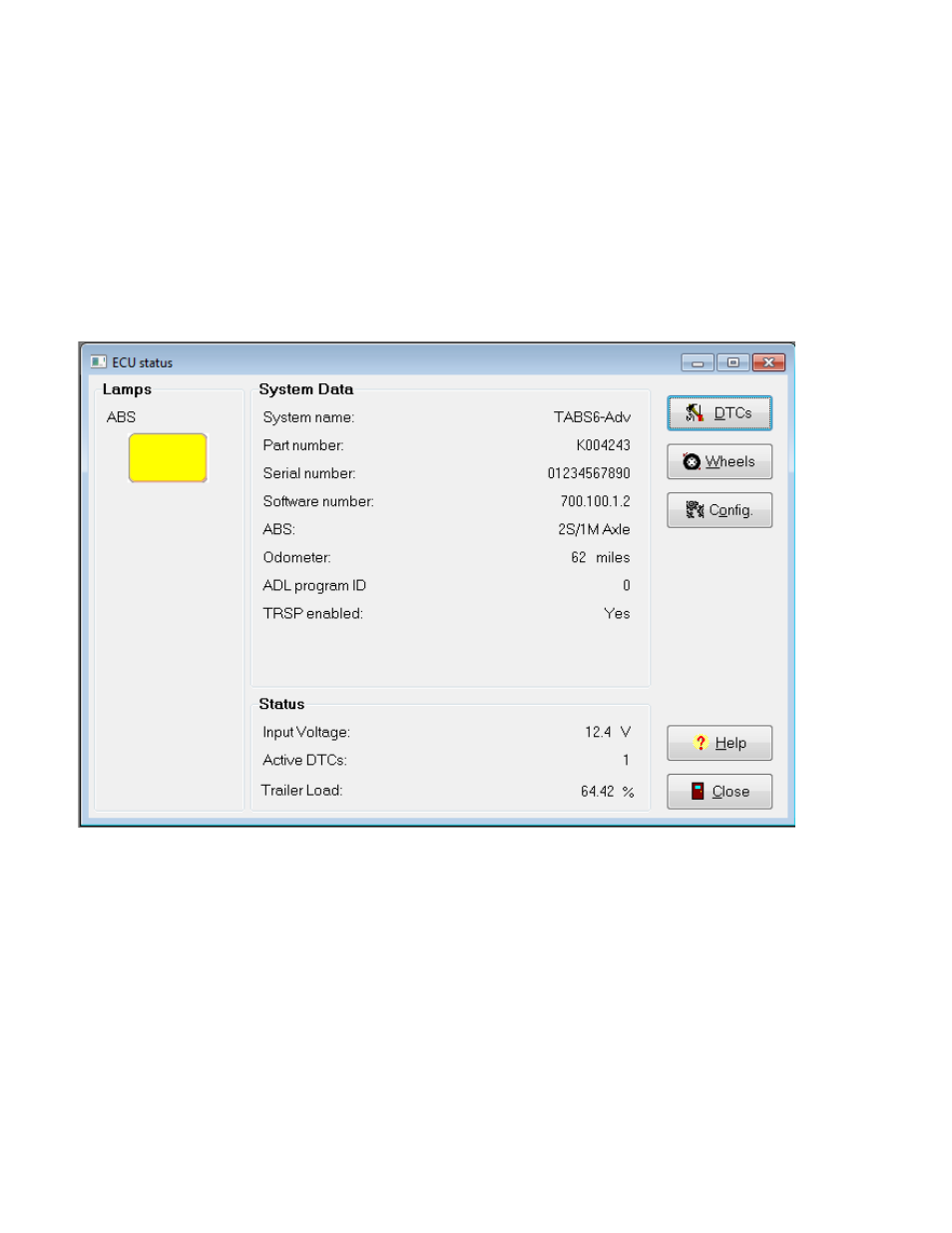

Figure 7
From the ECU Status screen the technician can open the DTC screen by either double clicking on the ABS
lamp or selecting the DTC button. The technician can also open the Wheel Speed Sensor or Configuration
screens by selecting the appropriate button.
Control Buttons for ECU Status
 The
DTC will open the DTC screen
 The
Wheels will open the wheel speed sensor screen
 The
Config will open the configuration screen
 The
Help
will open the Help page for ECU Status
 The
Close will close the screen
