Component Test Screen
The Component Test screen allows the technician to test various components of the system such as: wheel
speed sensors; modulators; pressure sensors; switches; and the Bendix
®
Trailer Roll Stability Program
(TRSP) system.
The Component Test screen also allows the technician to perform system tests such as: battery voltage;
ABS indicator lamp; Aux I/O; and axle load.
Note: Before performing the component test, make sure the vehicle is parked on a level and flat
ground with the wheels chocked.

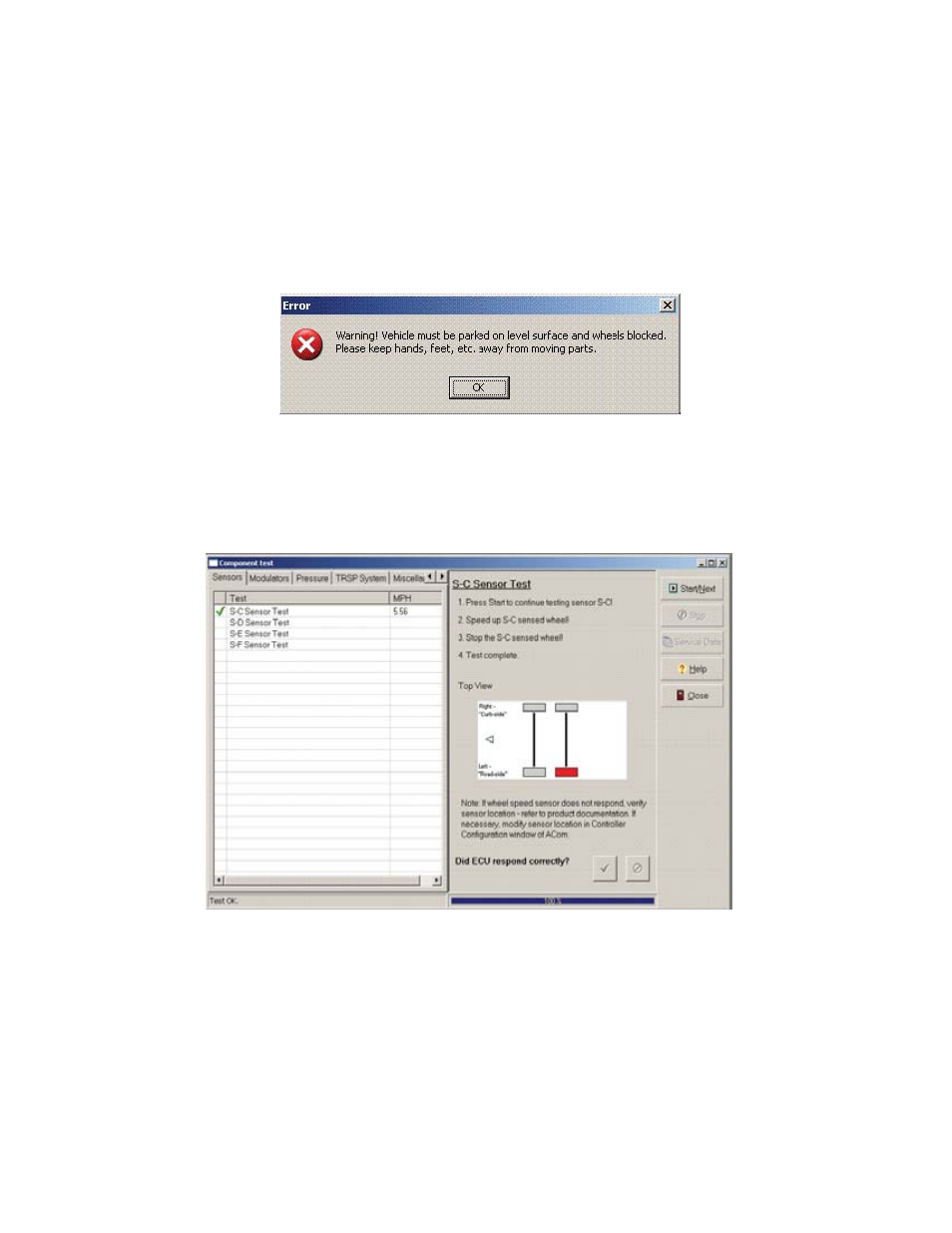

Figure 20
The Component test screen supports various tests; each tab will be populated with the tests which are
supported by the ECU. The tabs are Sensors, Modulators, Pressures, TRSP system (if equipped) and
Miscellaneous. Select the appropriate tab and the left side of the screen will display a list of available tests.
Upon selecting the test, the right side of the
screen will show what the technician must do before the test
can run.
Figure 21
Control Buttons for Component Test
• The
Start/Next
button will start the test and/or move the technician to the next step of the test
• The
Stop
button will stop the test
• The
Service Data
button will open the service data sheet
• The
Help
button will open Help
• The
Close
button will close the screen
