Bendix Commercial Vehicle Systems TABS-6 ADVANCED MC SD SHEET - Manual (Page 30)

30

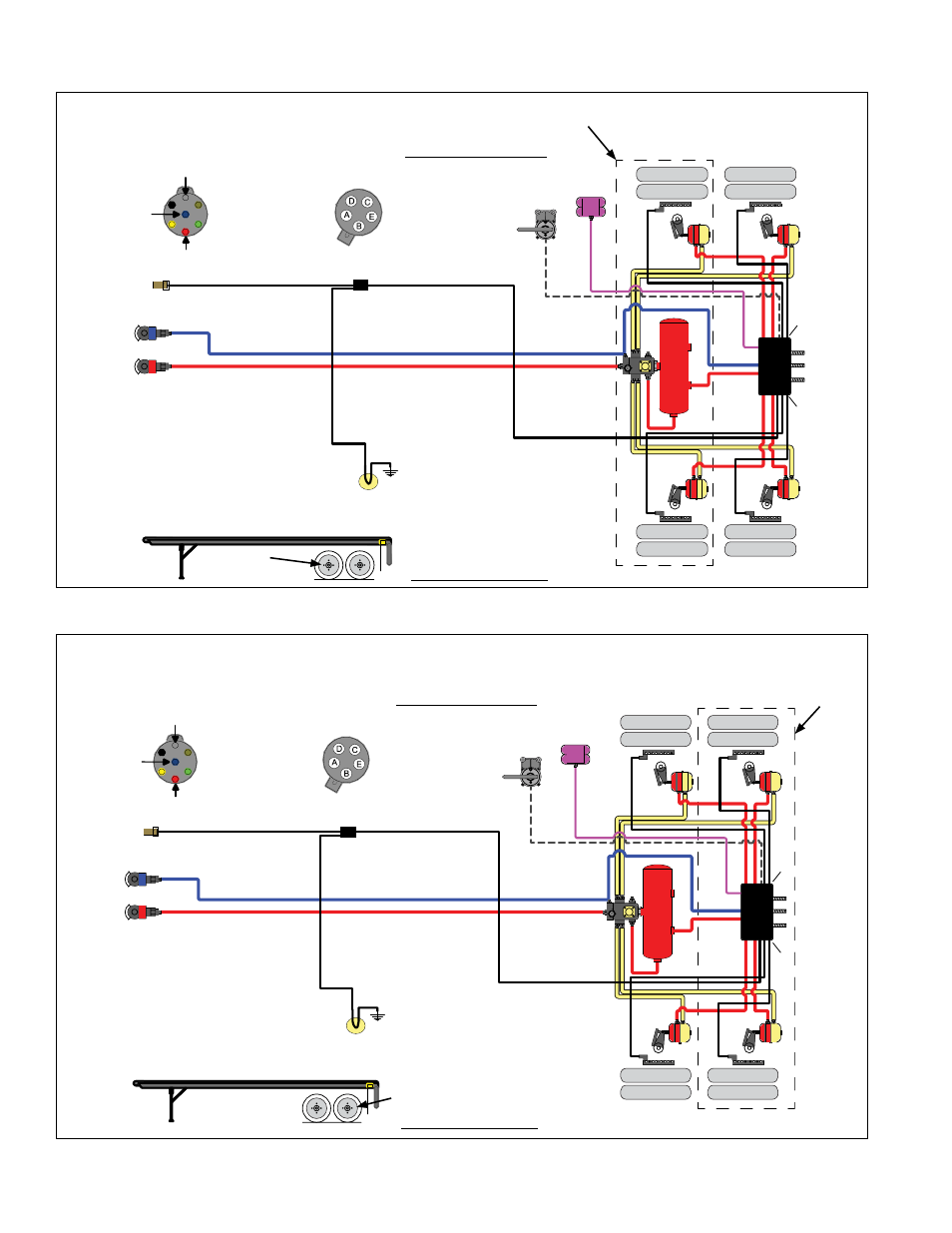

FIGURE 28 - 4S/2m Side contRol (0 deGRee) With FRont liFt Axle, AbS electRicAl & AiR SYStem
FIGURE 29 - 4S/2m Side contRol (0 deGRee) With ReAR liFt Axle, AbS electRicAl & AiR SYStem
Troubleshooting: System Schematics
4S/2M - SIDE CONTROL - Front Lift Axle
0 Degree Mounting Orientation
Ignition
Power
Trailer Chassis Harness
Bendix ®
TABS-6 ™
Advanced
Multi-
Channel
Bendix ®
SR-5 ™ Trailer
Spring Brake
Valve
Trailer ABS Pigtail Harness
Dashed-line box
Shows Lift Axle
ABS Indicator Lamp
Air Bellow
(where used)
Load Sensor
(where used)
5-Pin ABS Connector
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Tandem Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
P21
P22
Brake Lamp Power
Ground
“S-D”
“S-C”
Bendix ® WS-24 ™ Wheel Speed Sensors
Bendix ® WS-24 ™ Wheel Speed Sensors
“S-E”
“S-F”
Lift Axle
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground
Ignition
Power
Trailer Chassis Harness
Bendix ®
TABS-6 ™
Advanced
Multi-
Channel
Bendix ®
SR-5 ™ Trailer
Spring Brake
Valve
Trailer ABS Pigtail Harness
Dashed-
line box
Shows
Lift Axle
ABS Indicator Lamp
Air Bellow
(where used)
Load Sensor
(where used)
5-Pin ABS
Connector
Supply Line
Control Line
Right - “Curb-Side”
Semi-Trailer Tandem Axle Trailer
Left - “Road-Side”
7-Pin SAE J560
Connector
P21
P22
Brake Lamp Power
Ground
“S-D”
“S-C”
Bendix ® WS-24 ™ Wheel Speed Sensors
Bendix ® WS-24 ™ Wheel Speed Sensors
“S-E”
“S-F”
Lift Axle
4S/2M - SIDE CONTROL - Rear Lift Axle
0 Degree Mounting Orientation
A Brake Lamp Power
B Ignition Power
C NC
D Indicator Lamp
E Ground
