Bendix Commercial Vehicle Systems TABS-6 TRAILER ABS MODULE User Manual
Page 31

31
ECU Part Number Label
The external part number label is located on the relay valve portion of
the module. Label shown above is located under the removable cover
of the TABS-6 module. If the part number label is not readable or is
painted over, the ECU part number and revision can be read using a
diagnostic tool. The number of the initial software loaded on the ECU
is also indicated.
The module part number, and pin-out information is shown on the label
beneath the removable cover.
Software Revision Level
The current software revision number can be read using a diagnostic
tool.
Document Revision Level
Please visit Bendix.com to ensure you have the latest version of this
document.

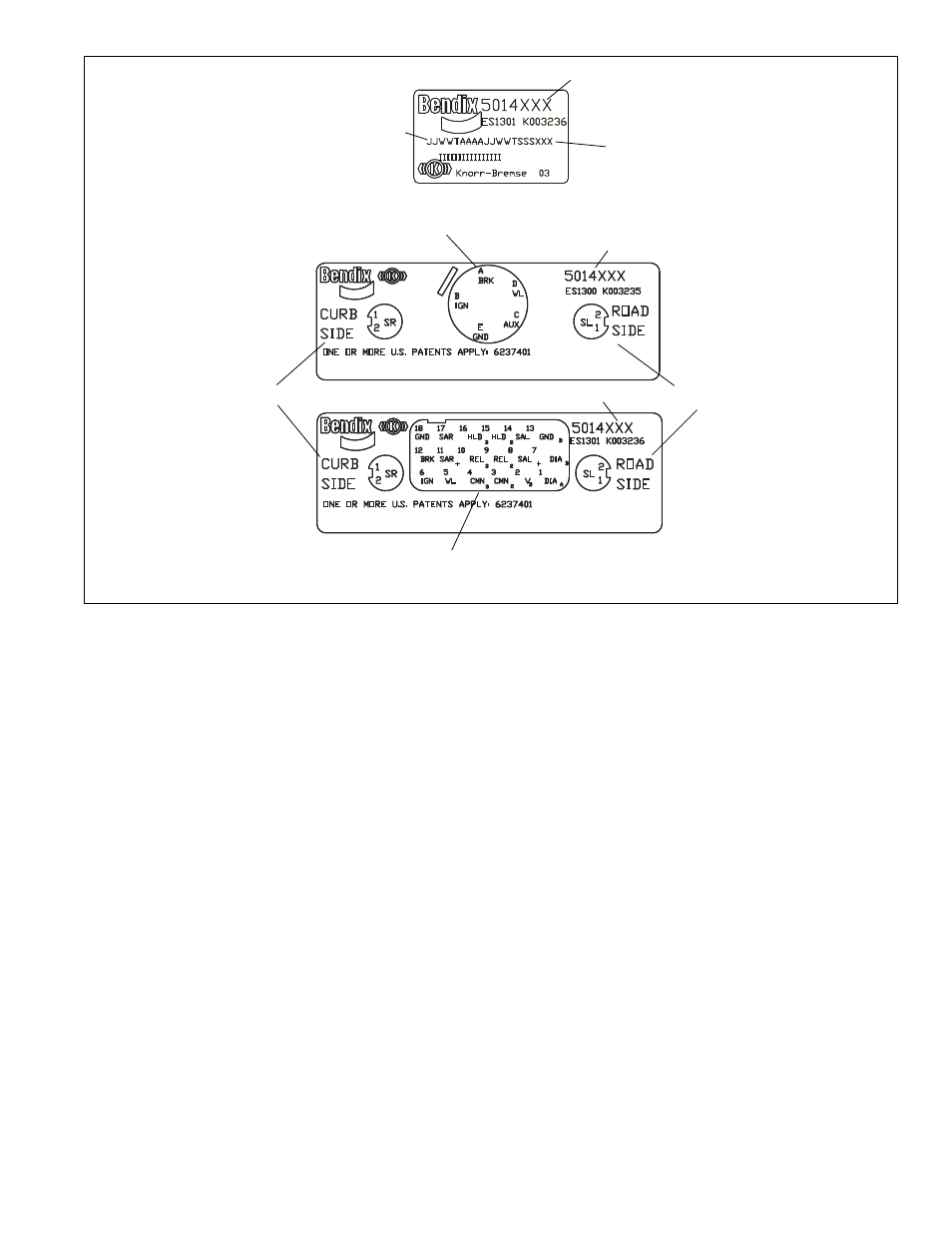

FIGURE 17 - LABEL INFORMATION
Date of Manufacture Code
Number Showing
the Initial Software
Loaded
(Software may be revised
on the production line or
in the fi eld.)
5-Pin ECU Pin-Out
Bendix Part Number
18-Pin ECU Pin-Out
2-Pin Sensor Pin-Out
and Routing Info
Bendix Part Number
2-Pin Sensor Pin-Out
and Routing Info
Bendix Part Number
