Bendix Commercial Vehicle Systems TABS-6 TRAILER ABS MODULE User Manual

Page 28

SECTION F: TROUBLESHOOTING THE

POWER SUPPLY

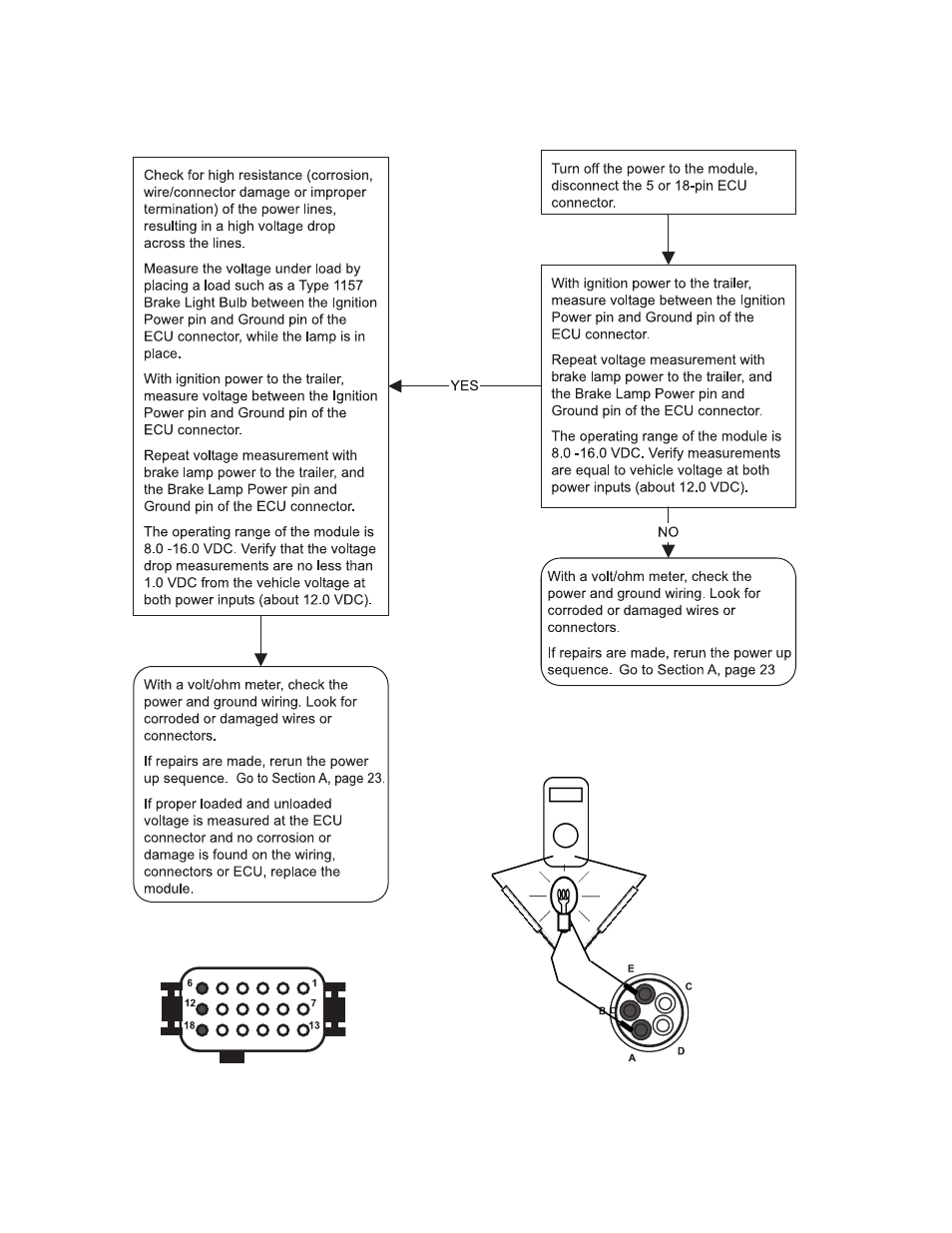

Measure the loaded
voltage across a type
1157 brake light bulb.

Looking into Premium TABS-6 Module Wire Harness,

ECU Connector Measure:

Pin 6 (Ignition Power) to Pin 18 (ground) and

Pin 12 (Brake Light Power) to Pin 18 (ground)

Looking into Standard TABS-6 Module Wire Harness,

ECU Connector Measure:

Pin B (Ignition Power) to Pin E (ground) and

Pin A (Brake Light Power) to Pin E (ground)
