27

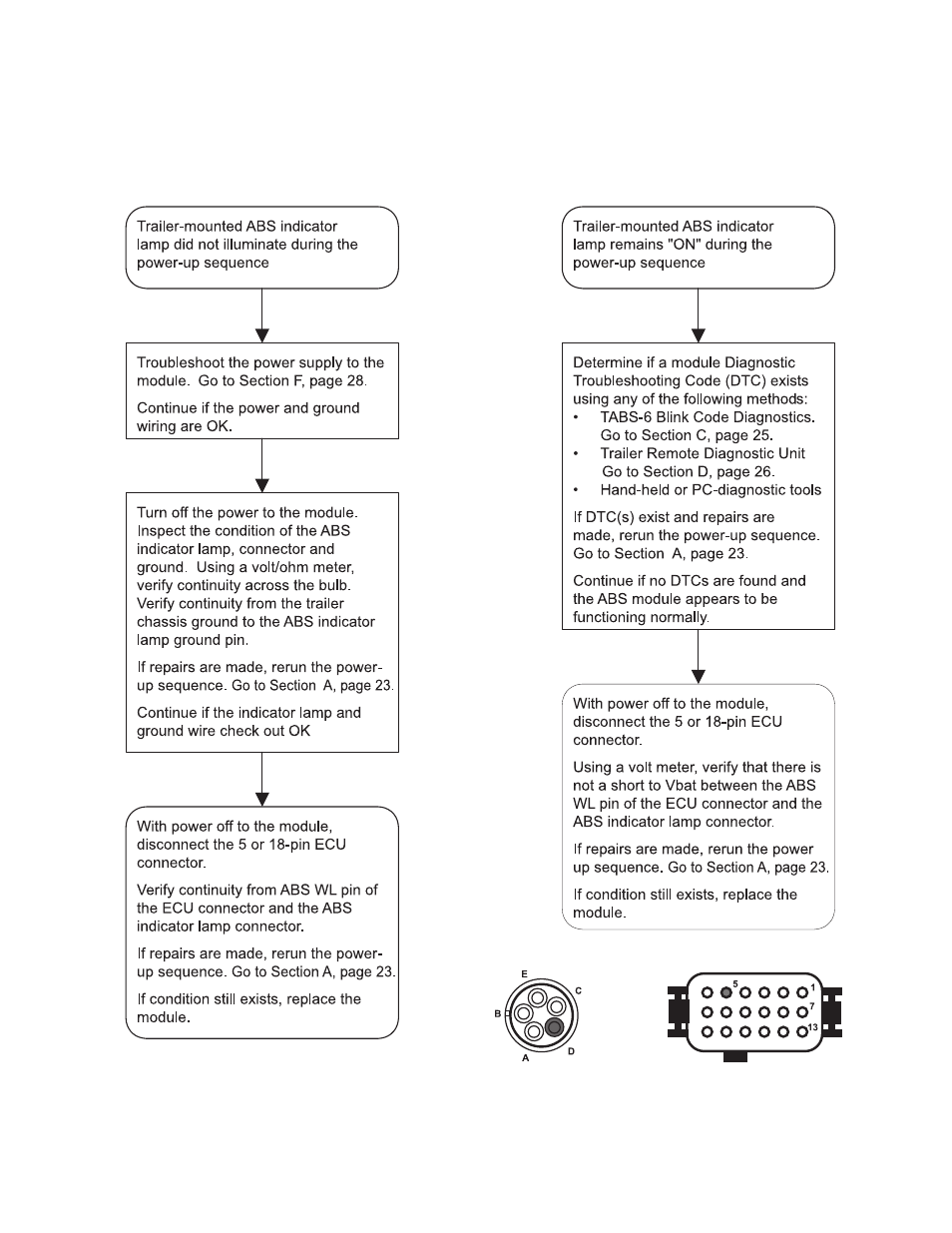

SECTION E: TROUBLESHOOTING THE TRAILER-MOUNTED

ABS INDICATOR LAMP CIRCUITRY

Looking into Standard

TABS-6 Module Wire

Harness (Pin D ABS

Indicator Lamp)

Looking into Premium

TABS-6 Module Wire

Harness (Pin 5 ABS

Indicator Lamp)
