18

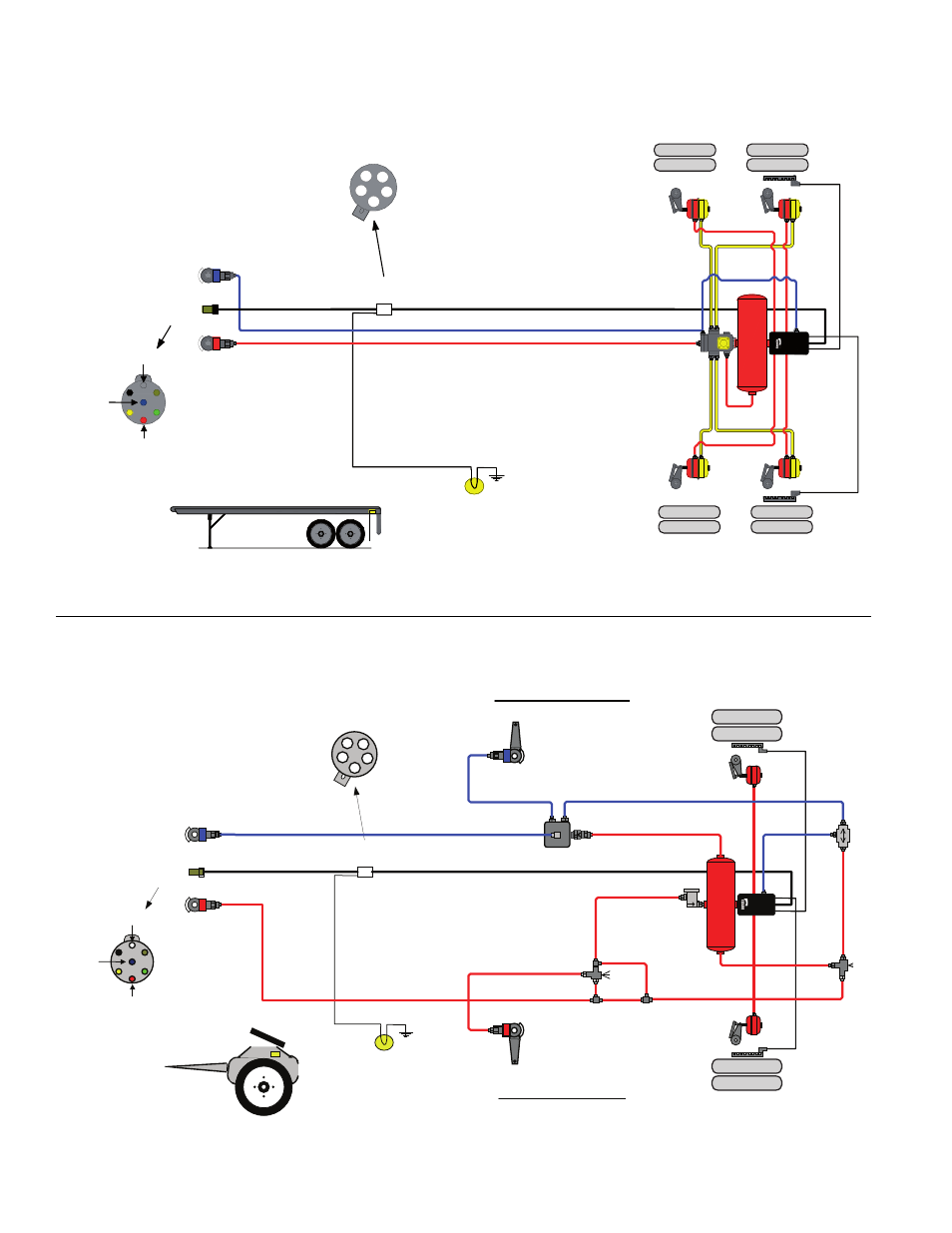

Troubleshooting: System Schematics
2S/1M - AXLE
CONTROL
Trailer
Chassis
Harness
ABS
Dual Axle Trailer
Bendix
SR-5 ™ Trailer
Spring Brake
Valve
Trailer ABS
Pigtail
Harness
5-PIN
CONNECTOR
Ignition
Power
Brake
Light
Power
Ground
7-PIN
CONNECTOR
SUPPLY
LINE
CONTROL
LINE
C
E
B
A
D
Bendix ®
TABS-6
Trailer
ABS
Module
ABS
Indicator Lamp
T
ABS
Bendix WS-24 ™
Wheel Speed
Sensor "SR"
Bendix WS-24 ™
Wheel Speed
Sensor "SL"
Right -
“Curb-Side”
Left -
“Road-Side”
®
®
®
A Brake Light Power
B Ignition Power
C NC
D Warning Lamp
E Ground
TABS-6
2S/1M - DOLLY AXLE CONTROL
Trailer
Chassis Harness
Trailer ABS
Pigtail Harness
5-PIN
CONNECTOR
Ignition
Power
Brake Light
Power
Ground
7-PIN
CONNECTOR
SUPPLY
LINE
CONTROL
LINE
A Brake Light Power
B Ignition Power
C NC
D Warning Lamp
E Ground
C
E
B
A
D
Trailer
ABS
Module
TABS-6
ABS Light
TA
B
S
WS-24 ™ Wheel Speed Sensor
WS-24 ™ Wheel Speed Sensor
"SR"
"SL"
Dolly
A B S
DC-4 ® Double
Check Valve
TR-3 ™
Inversion
Valve
PR-3 ™ Pressure
Protection Valve
SV-4 ™ Synchronizing
Valve
SC-3 ™ Single
Check Valve
R-12P ™ Pilot Relay Valve
Coupling - Control
Coupling - Supply
Right - “Curb-Side”
Left - “Road-Side”
