30
When you have finished the setting
up procedure described on the
previous page, you must mount the
glass doors and the cable cover.
How to assemble BeoSound 3200

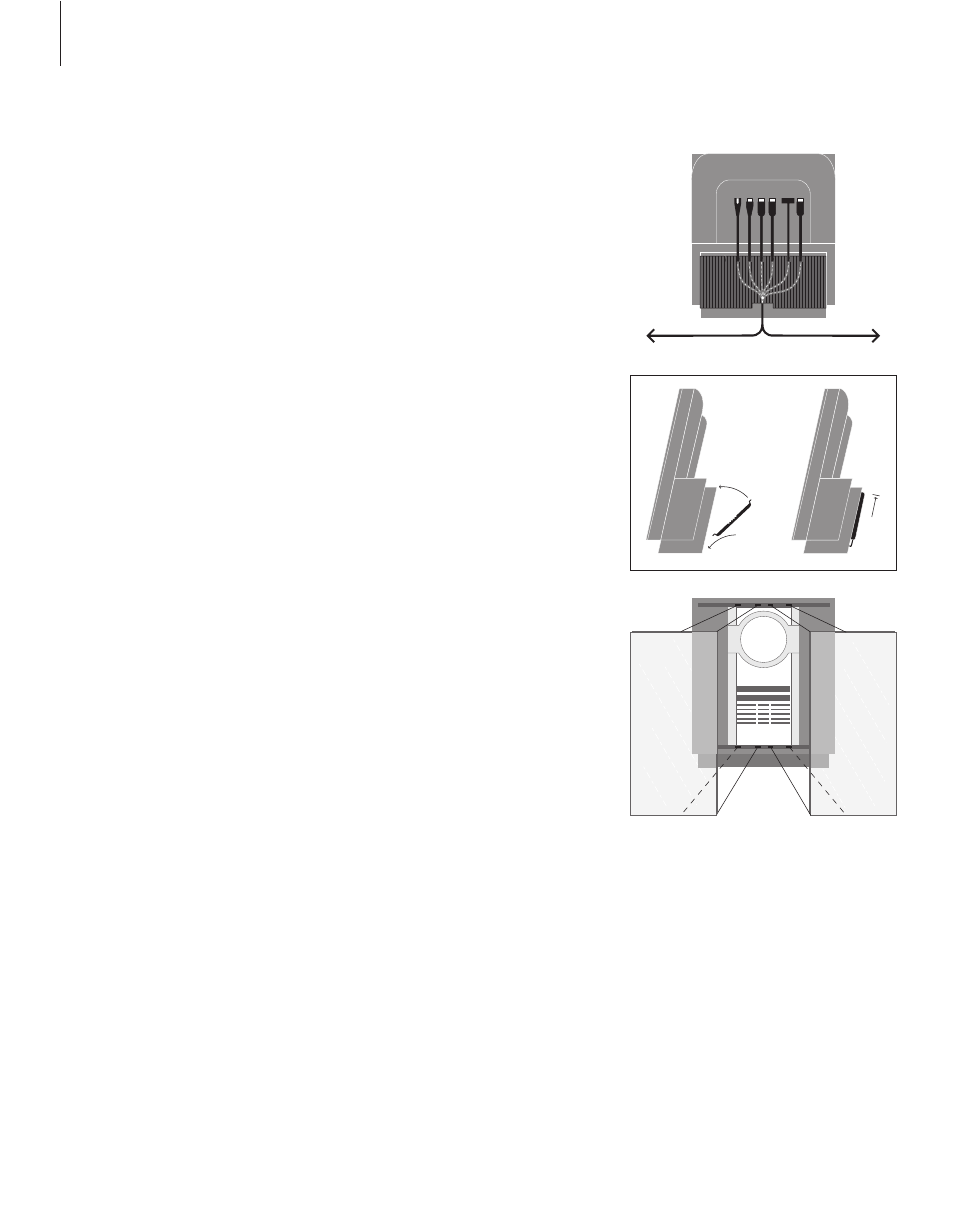

Arrange the cables
Arrange the connector cables in the cable cover as
shown to the right. You can fasten the cables with
tape to keep them in place before you mount the
cable cover to the rear of the music system.
Mount the cable cover
Fasten the cover – with the cables attached – to
the grill on the BeoSound rear panel:
a Insert the bottom row of pegs into the grill.
b Push the top row of pegs into the grill.
c Pull the cable cover upwards until the pegs fit
properly with the grill.
Do not plug in the cables before the cable cover is
mounted.
Mount the glass doors
The labels on the back of the glass doors indicate
which end should be pointing upwards, and which
side of the glass door should point towards the
middle of the BeoSound.
> Fasten the two glass doors, one at a time, to the
front of the music system by pressing their
fastening points into the corresponding
fastening sockets on the BeoSound.
> Press gently on each of the fastening points until
you hear a click. The click indicates that the
glass doors are mounted properly.
c
b
a
Treat the glass doors with great care. If they are
cracked or chipped, or damaged in any other way,
they should be replaced immediately, as they could
otherwise cause bodily harm. You can order
replacement doors through a Bang & Olufsen
retailer.
