Section 4: Assembly Procedures
Mount MSP08 on a Gold Plate
Attach mounting bracket to a Gold Plate
MSP08
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd
4.3.1: Attach mounting bracket to a Gold Plate
Ensure that the Gold Plate is securely attached to a tripod or shoulder mount.

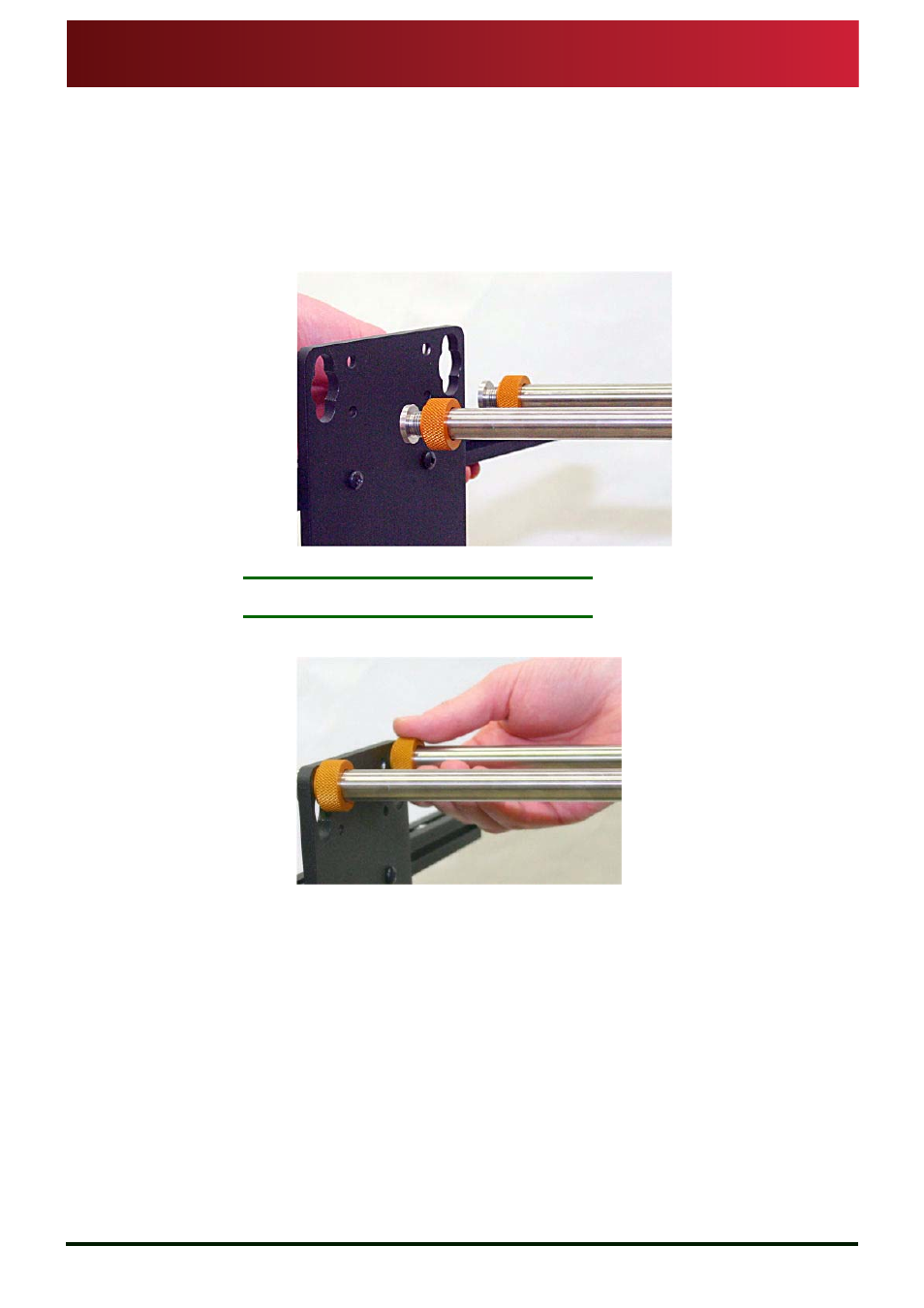

1. Loosen the knurled locking rings on the adaptor rods at the front of the
Gold Plate.
2. Place the openings in the keyhole plates over the ends of the adaptor
rods.
N OTE : Ensure the keyhole plates remain in front of the locking rings.
3. Tighten the locking rings to secure the mounting bracket in postion.
4. Mount your camera on the Gold Plate camera carriage.
5. Adjust the position of the whole assembly on the tripod so that it is
correctly balanced.
