Autocue SSP-i User Manual

Page 9

Text mode
Original mode

SSP-iUserManual.docx 2011-06-14

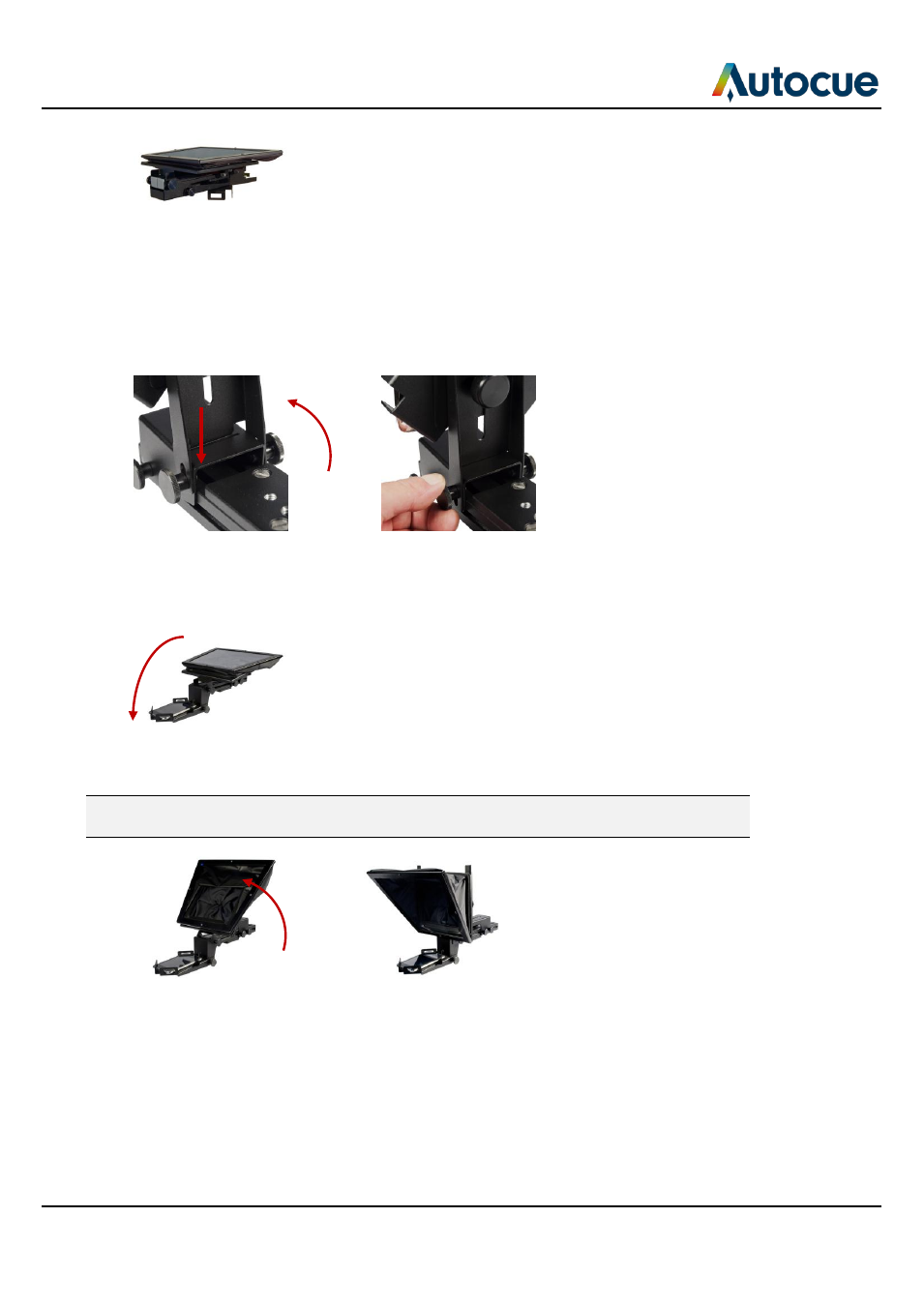

2. Loosen the thumbscrews holding the monitor assembly and raise the iPhone

Adaptor.

3. Align the metal tongue of the monitor mounting plate with the slot in the drop

bracket and carefully insert the tongue into the slot.

4. Tighten the thumbscrews to secure the monitor assembly.

5. Loosen the two thumbscrews holding the monitor and hood assemblies.
6. Rotate the monitor assembly so that the monitor is horizontal.

7. Raise the hood assembly to the vertical position and tighten the thumbscrews.

Note: The hood mounting bracket should fit over the drop bracket and hold it securely in

position.

8. Loosen the retaining thumbscrews holding the camera mounting bracket.
9. Rotate the camera mounting plate so that it is on the top of the unit and behind the

hood.

10. Slot the bracket over the thumbscrews and tighten all four thumbscrews to secure it.
