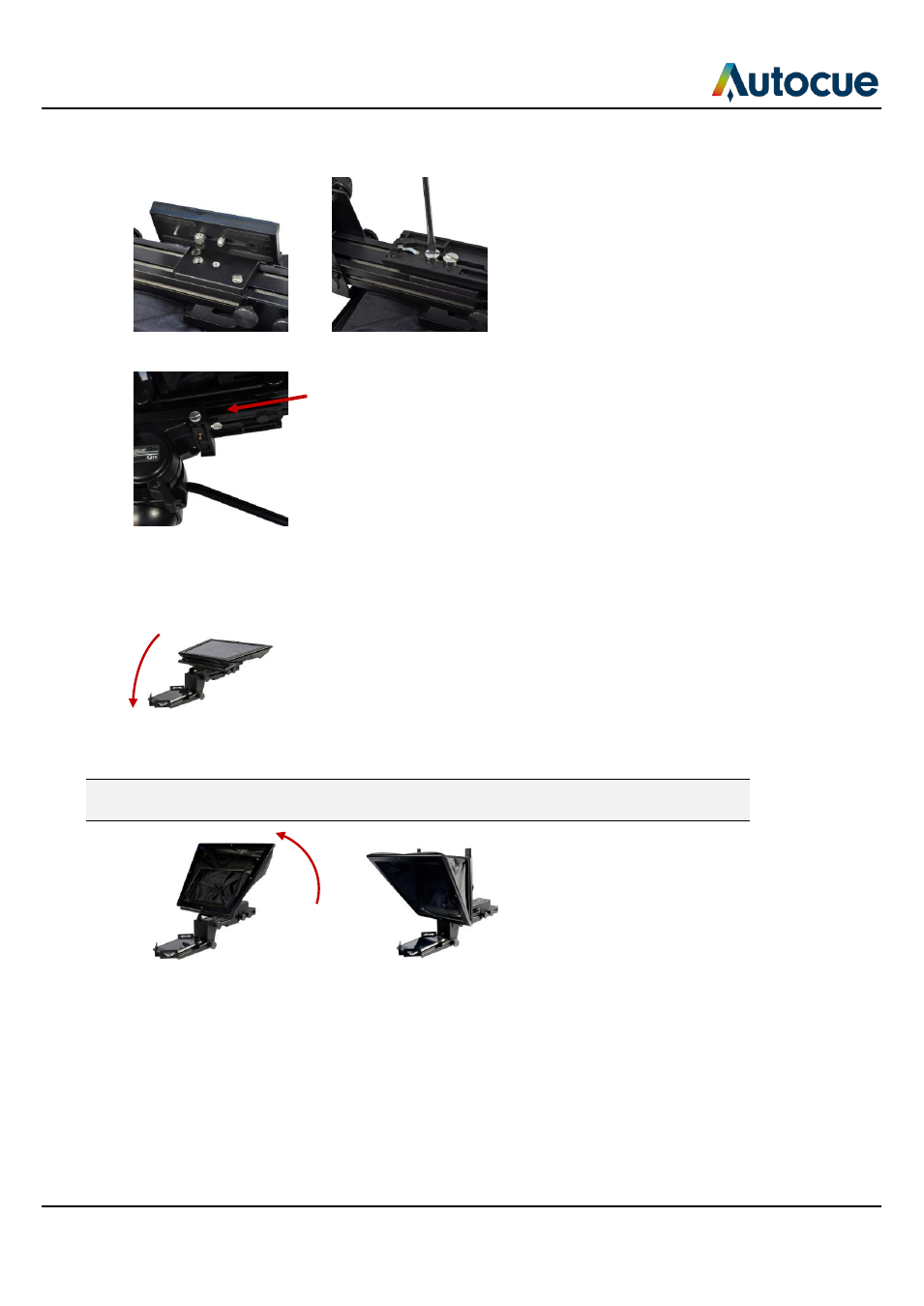

6. Attach the tripod camera mounting plate to the slider plate on the underside of the
SSPi unit.
7. Slide the on-camera unit onto your tripod.
8. Loosen the two thumbscrews holding the monitor and hood assemblies.
9. Rotate the monitor assembly so that the monitor is horizontal.
10. Raise the hood assembly to the vertical position and tighten the thumbscrews.
Note: The hood mounting bracket should fit over the drop bracket and hold it securely in
position.
11. Loosen the retaining thumbscrews holding the camera mounting bracket.
12. Rotate the camera mounting plate so that it is on the top of the unit and behind the
hood.
13. Slot the bracket over the thumbscrews and tighten all four thumbscrews to secure it.
