5 AJA R20CE 10-bit Encoder User Manual

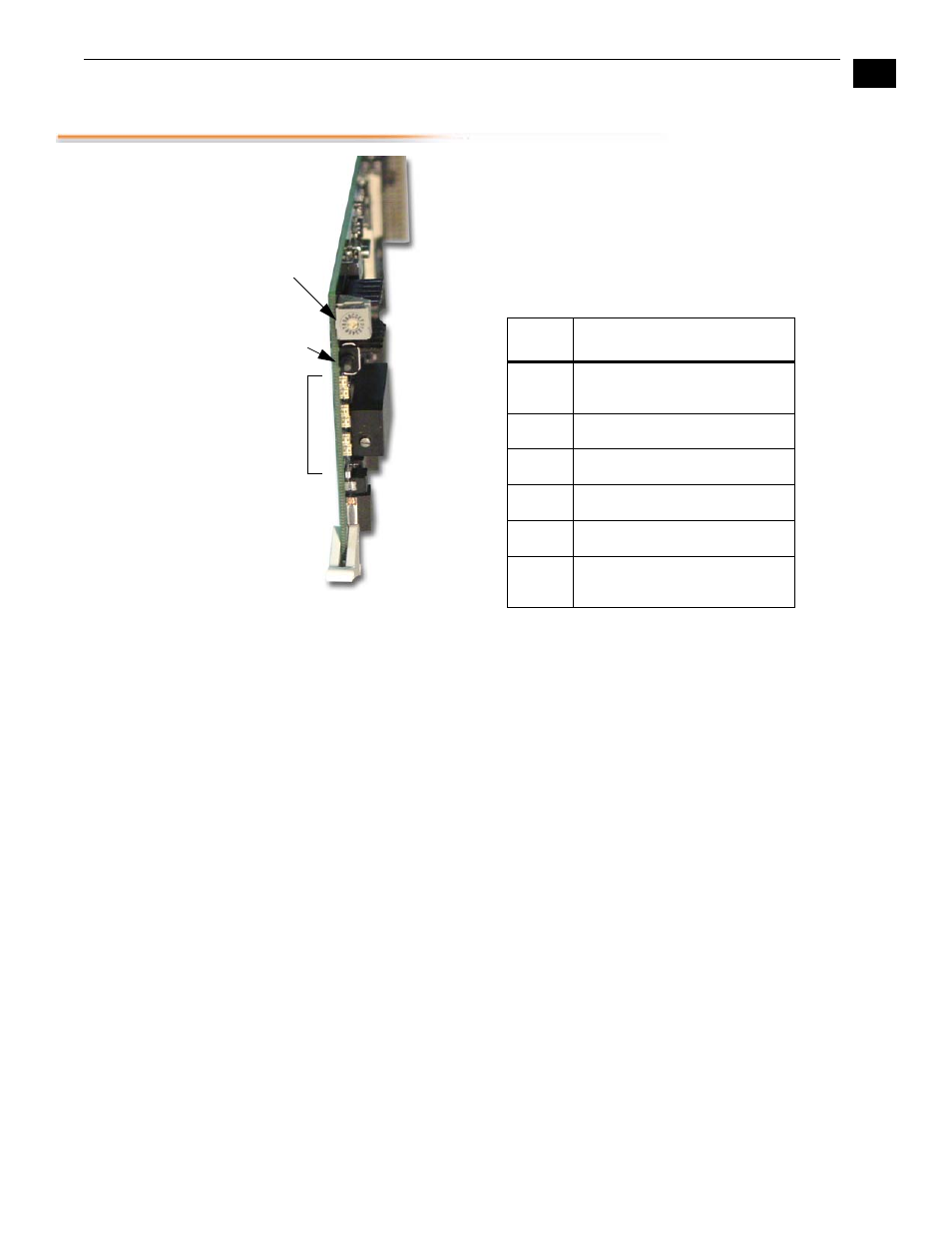

User Controls
The user interface for the R20CE includes a 16 position hex
rotary switch, a momentary action up/down toggle switch,
and 6 LEDs. Use the rotary switch to select a function and
then adjust the function using the toggle switch. The BANK
Led allows two banks of functions to be accessed, The LEDs
are numbered 1-6 from top to bottom. The LEDs are labeled
as follows:
Control Functions The following tables describe the functions controlled by the rotary switch and toggle
switch user interface. To access a particular function, set the hex rotary switch to the
appropriate function, and then adjust the function by flipping the toggle switch. For
ON/OFF-type functions, such as Setup/NoSetup selection, moving the toggle switch to
the UP/LEFT position sets the function and moving the switch DOWN/RIGHT clears the
function. Using the toggle with multi-value functions, such as INPUT MODE, rotates
through all the possible choices for the function. To control variables, such as
framesync delay, the value of the function will be incremented or decremented each
time the switch is momentarily moved either up, or down respectively. Holding the
switch in either position will cause the function to automatically begin incrementing or
decrementing—after a two second pause. On functions having more than two
selections, using the toggle switch cycles through the available selections.
LED FUNCTION
1 BANK (OFF=Bank O
ON=Bank 1)
2 525
3 AUTO (auto 525/625 select)
4 625
5 VID (video detected at input)
6 CONFIRM (for signaling memory
load, errors, etc.)
Rotary
Switch
LEDs
Bank
Switch
