Delay Mode
1.
Perform function 1 in Bank 1 "
SET DEFAULT DELAY.
" This action sets the total
delay through the R20CE to about 1 frame.,
2.
Perform function 2 in Bank 1 "
SET LINE DELAY.
" This allows you to advance and
delay the output timing in line increments.
3.
Perform function 3 in Bank 1 "
SET PIXEL DELAY
." This allows you to advance and
delay the output timing in Pixel increments.
Note:
In "
SET PIXEL DELAY,
" the first four increments are 1/4 pixel steps.
4.
Adjust timing as desired anywhere between the steps set above by adjusting
the "
FINE TIMING ADJUST
" control on the front of the R20CE board.

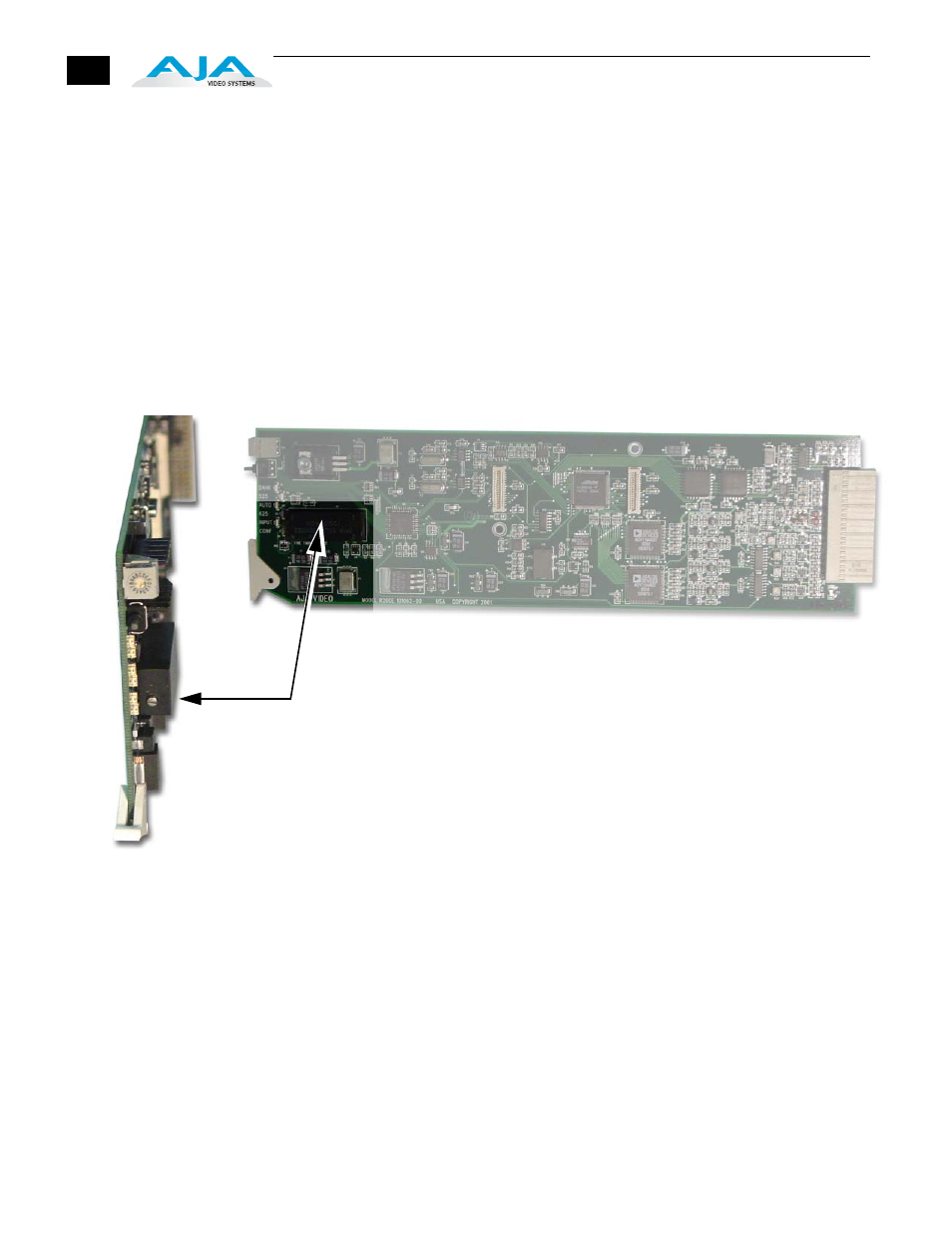

R20CE Fine Timing Adjustment Control Location
Fine Timing Adjustment
