21 T-TAP Installation and Operation Guide — Control Panel Operation
Video Setup Screen T-TAP provides a high-quality digital video output in interlaced (i), progressive (p), or progressive
segmented frame (psf ) formats. This screen shows the current settings for frame formatting of
the digital video output, and allows you to re-configure it when desired.

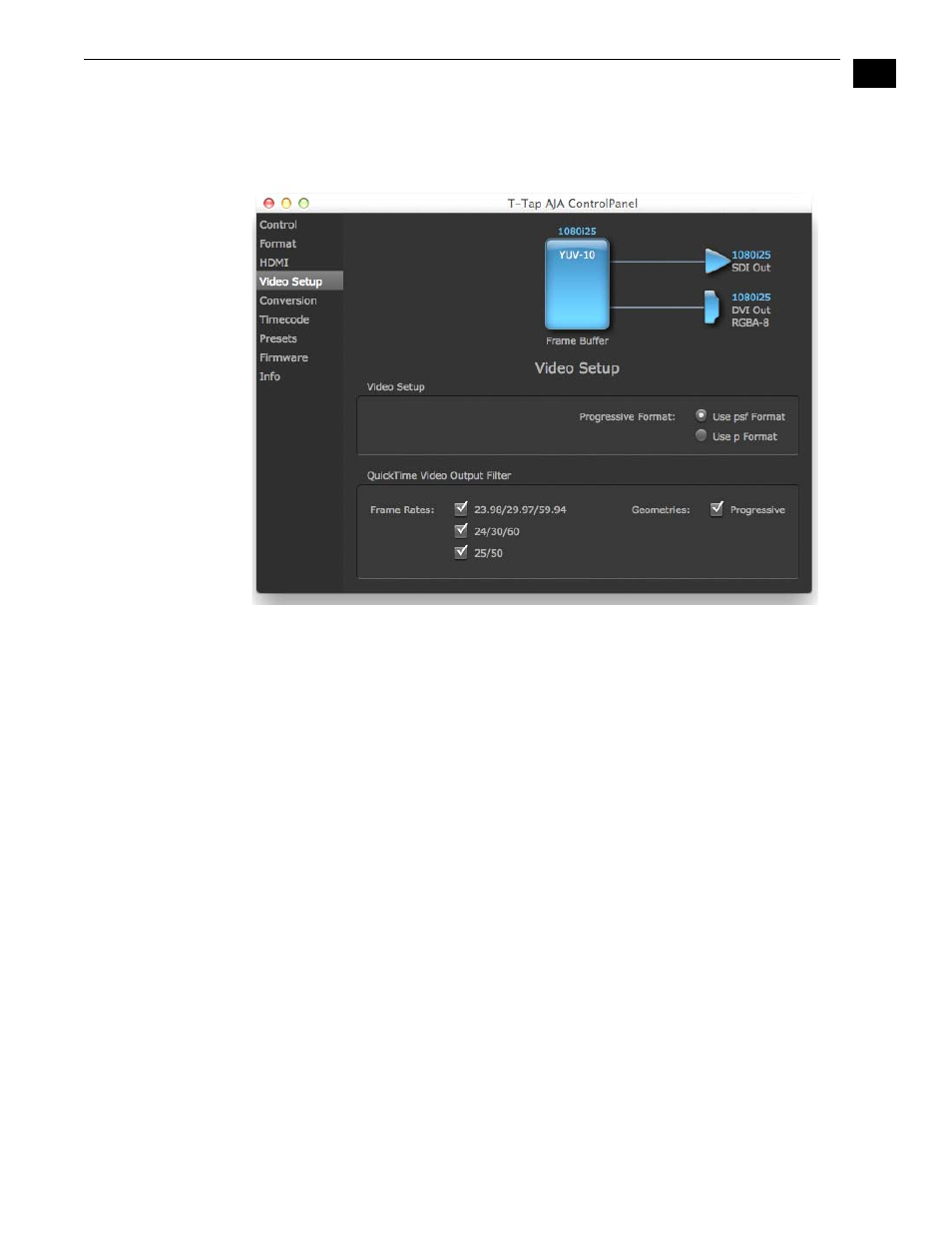

AJA Control Panel, Video Setup Screen
Setup Screen Settings
Progressive Format—Choose between progressive (p) and progressive segmented frame (psf)
format for your digital output.
QuickTime Video Output Filter—The QuickTime Video Output Display Filter is designed to
help manage the comprehensive list of video outputs that may be available to applications.
By selecting the checkbox next to specified parameters, the video outputs related to these
specified parameters are enabled as possible video outputs for applications. For example, if
the checkbox next to 25/50 is unchecked, 50Hz video outputs are deselected and would
not be available to the user’s editing application. To avoid confusion when working in a
particular editorial environment, you might choose to leave 50Hz unchecked if working
solely in a 60Hz editorial environment. The same might be true if you do not intend to work
with true progressive 1080 material.
