HDMI Output
Screen The T-TAP’s HDMI output is shown and configured in this screen.

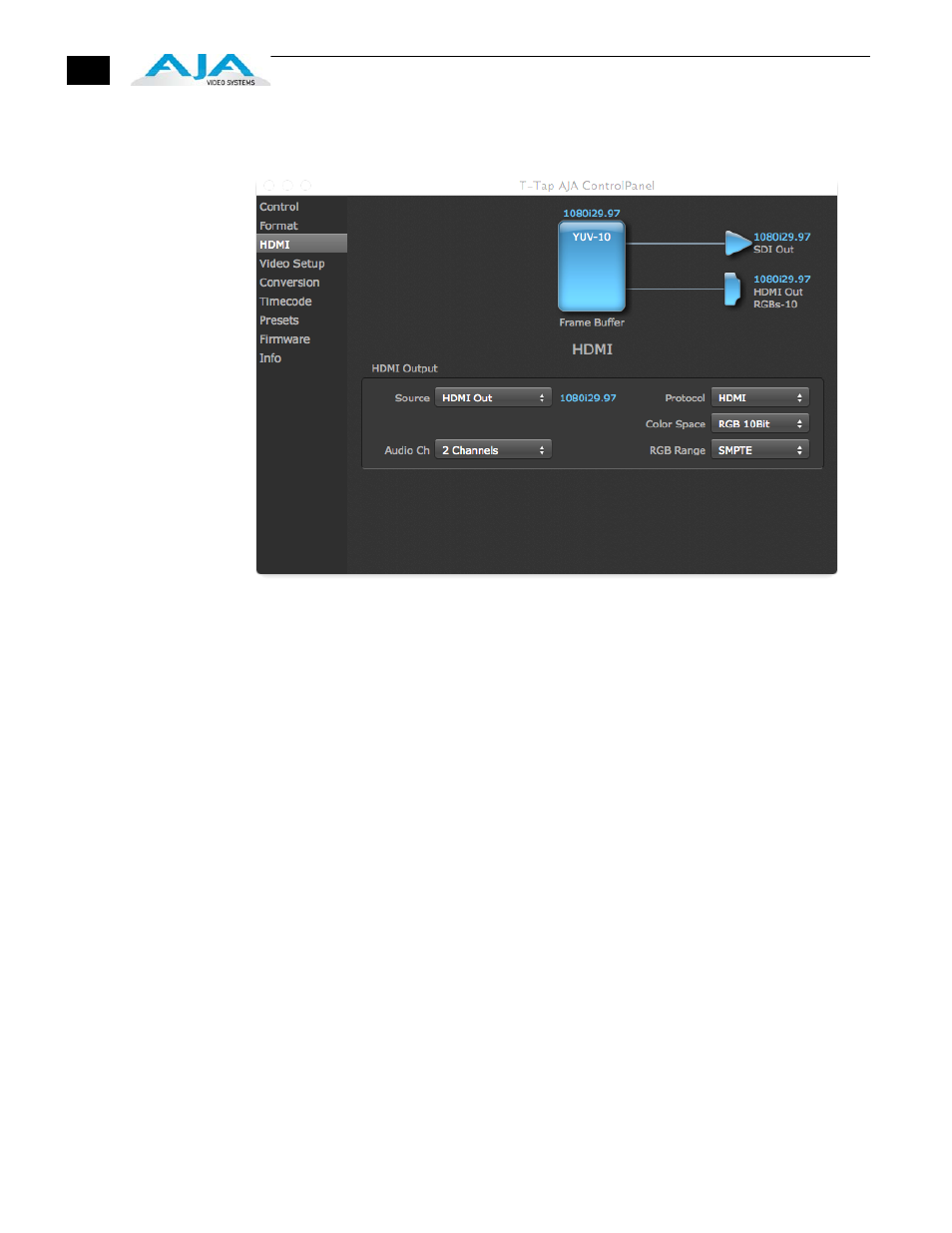

AJA Control Panel, HDMI Output Screen
HDMI Output Settings
Source— (used for KONA/Io products only) the Source pulldown menu allows you to choose
between the primary and secondary video format for output.
Pulldowns are also provided for configuring the video Protocol, Color Space, RGB Range, and
Audio Channels:
Protocol—the Protocol pulldown allows you to choose either “HDMI” or “DVI” protocol—use
DVI if you’re outputting to a DVI monitor using an HDMI to DVI adapter.
RGB Range (SMPTE or Full levels)—the RGB Range pulldown menu allows you to select either
Full range (0-1023) or SMPTE range (typically 64-940) for RGB color output.
Audio Channels—an Audio Channel pulldown allows you to select the number of
embedded audio channels (2 or 8) for the HDMI output.
