88
Genlock
Control Screen This screen selects the type of genlock source and then allows fine adjustment of the
horizontal and vertical timing, and audio delay—relative to the source selected. There are
two ways to enter a value:
• Click and drag the slider.
• Click on the numeric value above the slider, enter a new value and press Enter to
commit the changed value.

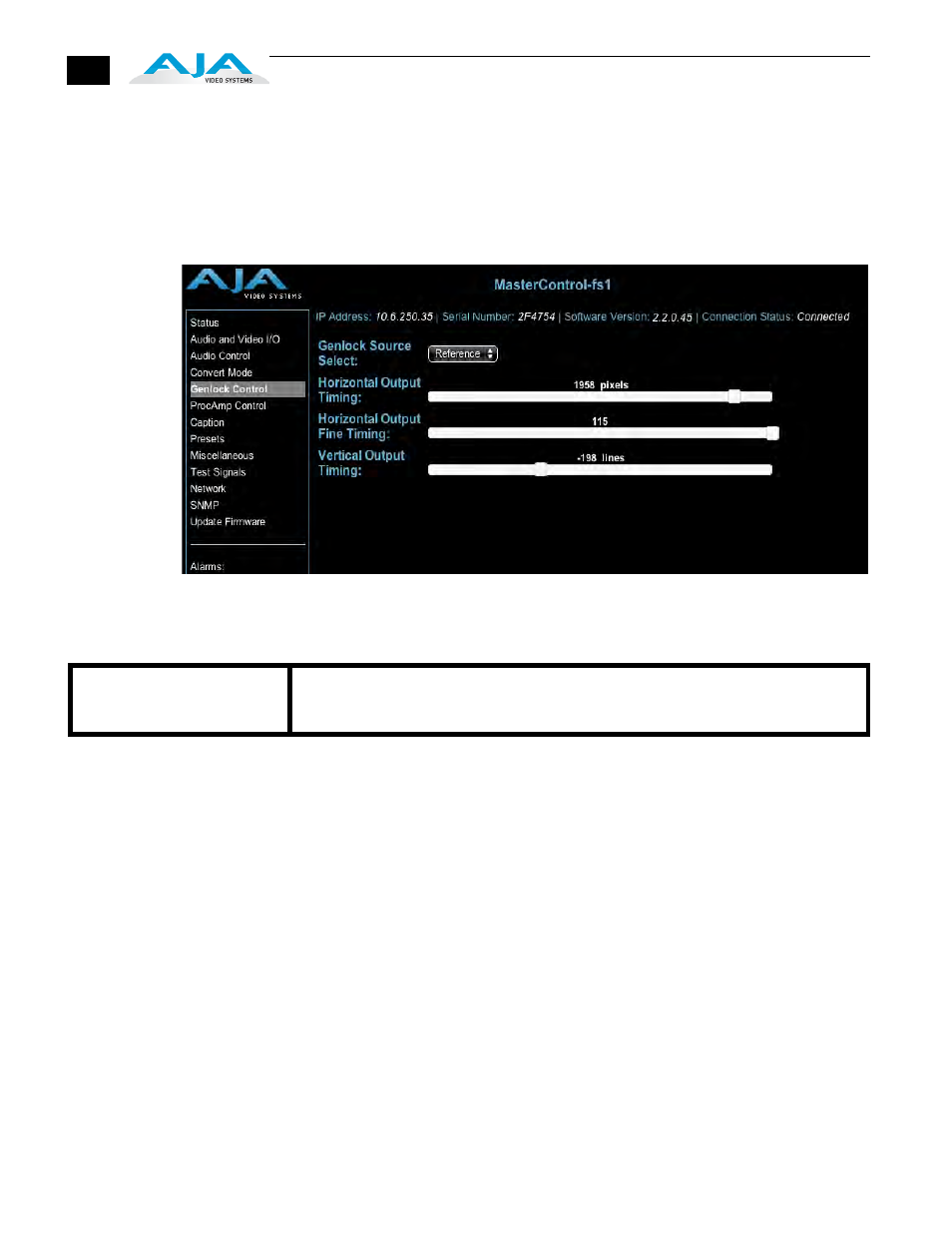

FS1 Web Interface, Genlock Control Screen
Genlock Source Select (6.1)
Horizontal Output Timing, pixels (6.2)—This slider adjusts horizontal output timing relative
to the reference video already selected. When adjusting the horizontal timing (H),
this value specifies a number of pixels to offset, from zero to full line width.
Horizontal Output Fine Timing—Further adjusts the horizontal analog output timing
(only) in finer increments than 6.2 (above)—in this case by sub-pixels. Each
adjustment of the control, from 0 to 127 adjusts the timing by 1/128th of a pixel.
Note: This fine timing control only affects the analog outputs.
Vertical Output Timing, lines (6.3)—This slider adjusts vertical output timing relative to the
reference video already selected. When adjusting the vertical timing (V), this value
specifies a number of lines to offset, moving the screen up to a half a frame up or
down.
Reference (default)
Input
Free run
Use the Ref connector as the genlock source
Use the currently selected input as the genlock source
Free run mode (FS1 syncs to its own timebase, not locked to an external source)
