99 FS1 Installation and Operation Manual — Remote FS1 Control Via a Web
Test Signals
Screen This screen allows you to select the video and audio test signals produced by the internal
test signal generator.

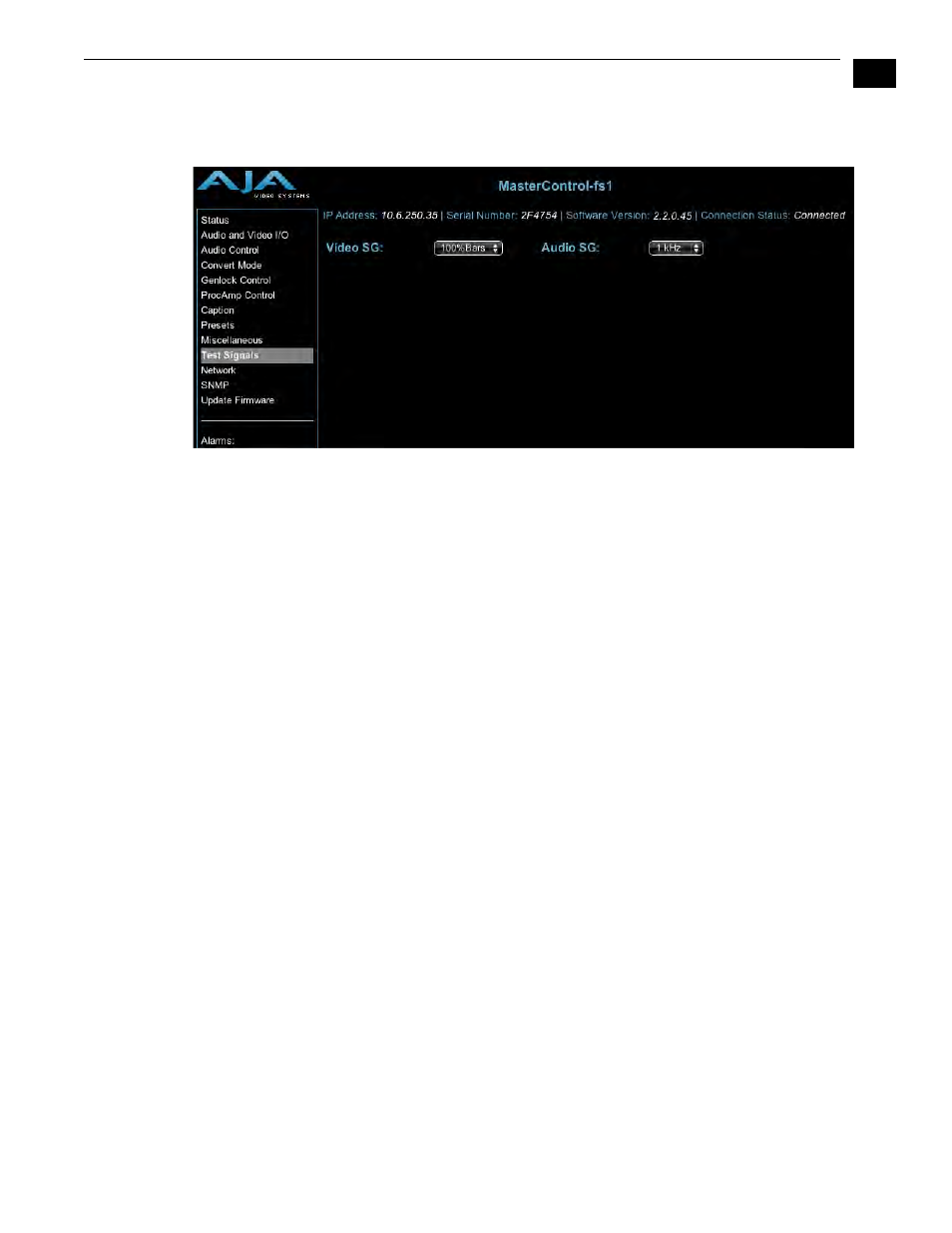

FS1 Web Interface, Test Signals Screen
Video SG (41.2): This parameter controls the video test signal produced by the FS1's internal
test signal generator. When you set the parameter to OFF, test signals are turned off,
and the normal video signals appear at the FS1 video outputs. When you set the
parameter to a test pattern, that pattern gets switched into the video outputs.
Available test signals are Black, 75% Bars, or 100% Bars.
Audio SG (41.3): This parameter determines the audio signal output from the FS1’s internal
audio test signal generator: OFF (default), silence, or 1 kHz tone. When you set the
parameter to OFF, test signals are turned off, and the normal audio signals appear at
the FS1 audio outputs. When you set the parameter to an audio tone, that tone gets
switched into the audio outputs.
