82
Side Bar Keyer Source (7.1)

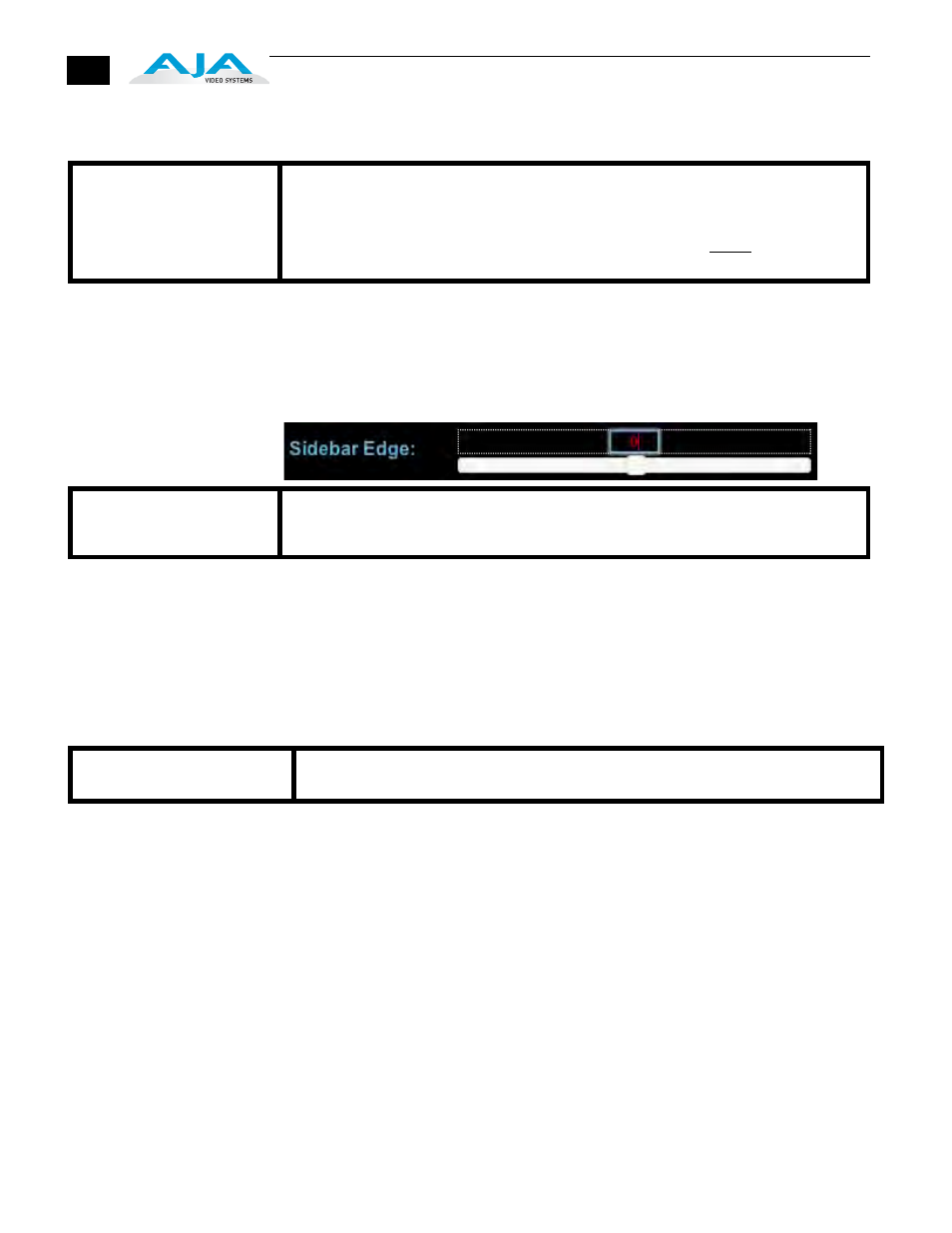

Side Bar Edge (7.2)—Specify a value to widen or narrow the sidebar keyer. There are two
ways to enter a value:
• Click and drag the slider.
• Click on the numeric value above the slider, enter a new value, and press Enter to
commit the changed value.
Note: Please read the discussions in Chapter 4, Parameter Menus, for 7.1 Sidebar Keyer
and 7.2 Sidebar Edge for complete information on use of the Sidebar keyer.
Loss of Input (11.1)—Select the automatic action that occurs if the video input is lost. The
Freeze selection freezes video on the last available frame. The Black selection (default)
cuts the video to black.
Note: Freeze on Loss of Input works only for SDI inputs. If a selected analog input is lost
while Freeze is enabled, the output will not be valid video.
Off (default)
SDI 1
SDI 2
Component
Turns the Sidebar Keyer Off.
Turns the Sidebar Keyer On and selects SDI 1 as the HD input source for the Sidebar keyer.
Turns the Sidebar Keyer On and selects SDI 2 as the HD input source for the Sidebar keyer.
Turns the Sidebar Keyer On and selects Component In as the HD input source for the
Sidebar keyer. (The FS1 input source selected by parameter 2.1 cannot be either
Composite or S-Video when Component is chosen as the Sidebar Keyer source.)
0
+1 to +128
-128 to -1
Produces a 4:3 centered picture.
Produces wider sidebars (larger number = larger sidebars).
Produces narrower sidebars (smaller number = smaller sidebars).
Black (default)
Freeze
Select to replace a lost video input with black video.
Select to replace a lost video input with the last available video frame.
