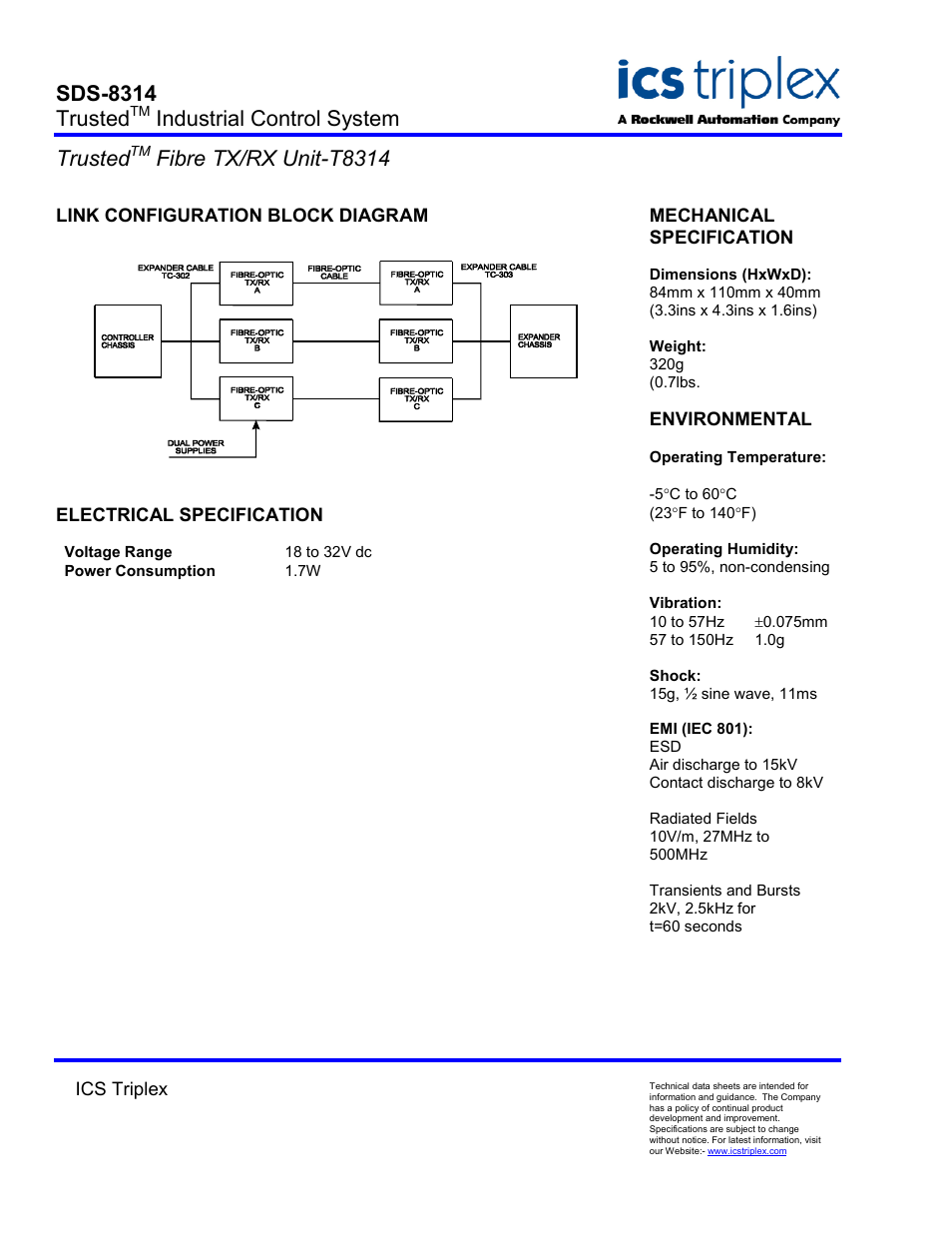

Link configuration block diagram, Electrical specification, Sds-8314 trusted – Rockwell Automation T8314 Trusted Fibre TX/RX Unit User Manual
Page 2: Industrial control system trusted, Fibre tx/rx unit-t8314
